2.4G 2W 2000mW Mini Radio Signal Booster Range FPV Extend For DJI Phantom
Item Name: 2.4G 2W Signal Booster
Material :CNC aluminum
Input Voltage: 5V-15V
Transmitter Gain: 11dB ±1.5dB
Noise Figure: ≤3.0dB
Input power range: 4dBm-20dBm
Max output power: 33dBm(2W)
Operation Voltage: 5V-15V
Operation Current: ≤400ma
Input connector: RP-SMA Female (Outer thread - inner hole)
Output connector: SMA Female (Outer thread- inner pin)
Size: 62*32*10mm (without antenna,mount and power cable)
Weight: 36G (without antenna)
Features:
Designed for FPV, with small size, light weight, and heat dissipation.
Decrease interference
Note:
Please assemble the antenna before powering on.

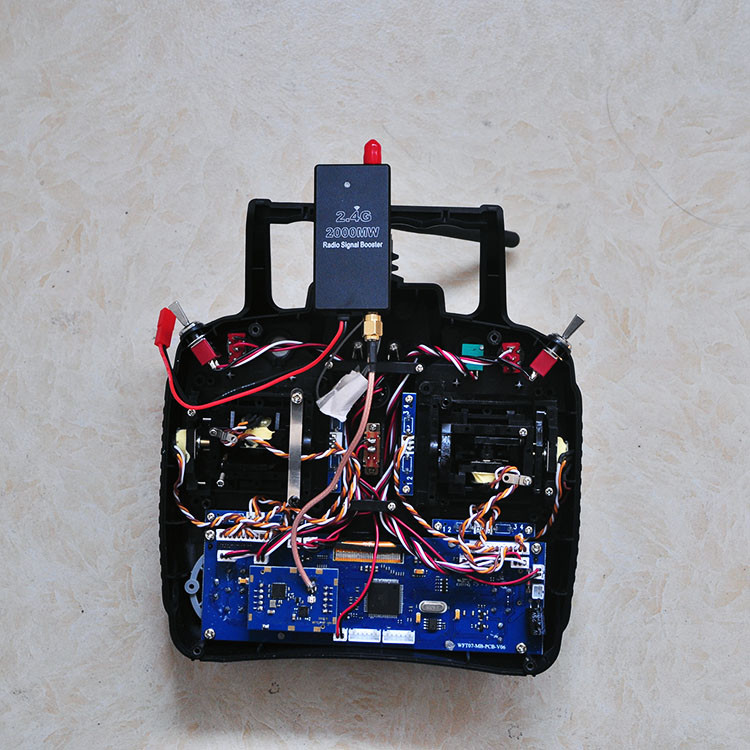

User may need to solder the signal booster to original transmitter module.
The product will require DIY modify skills and relative knowldge. Please confirm before purchasing.
Package Included:
1 x 2.4G 2W Signal Booster
1 x Antenna
1 x Power Cable
1 x Connecting Cable
