Specifications:

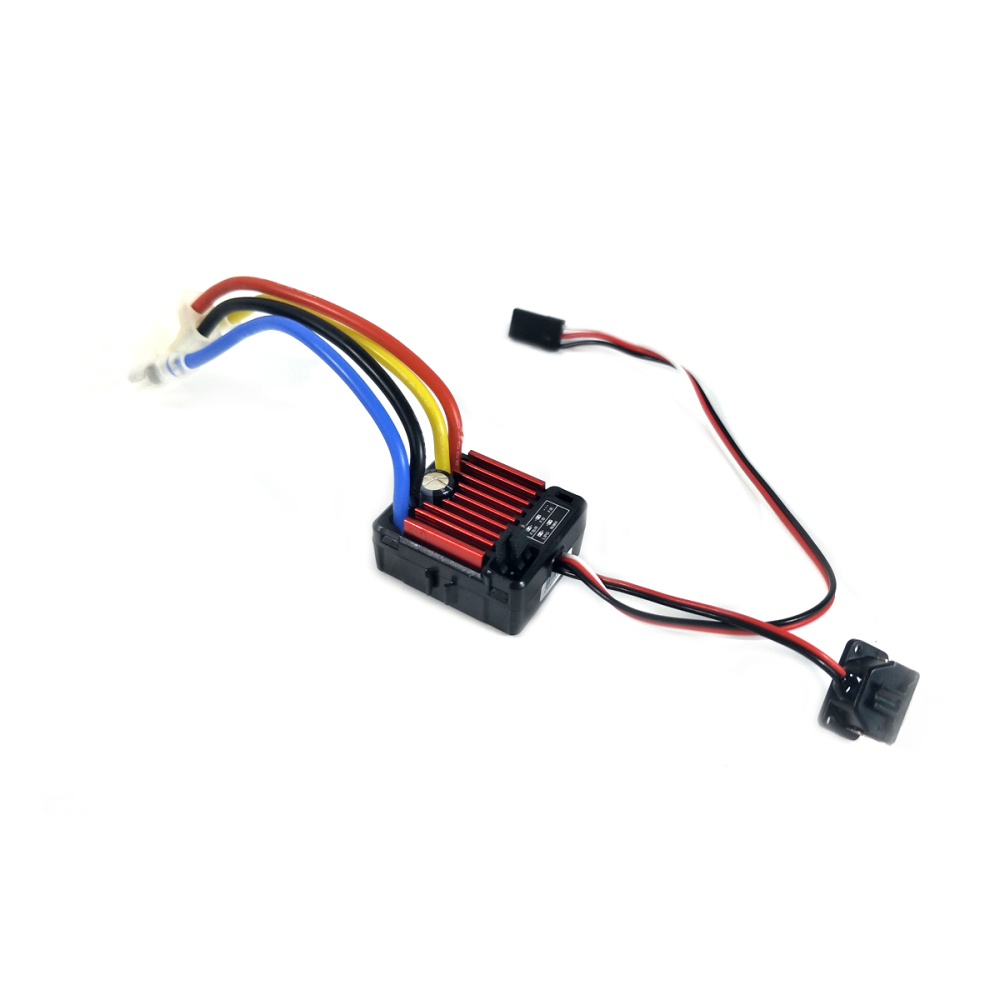

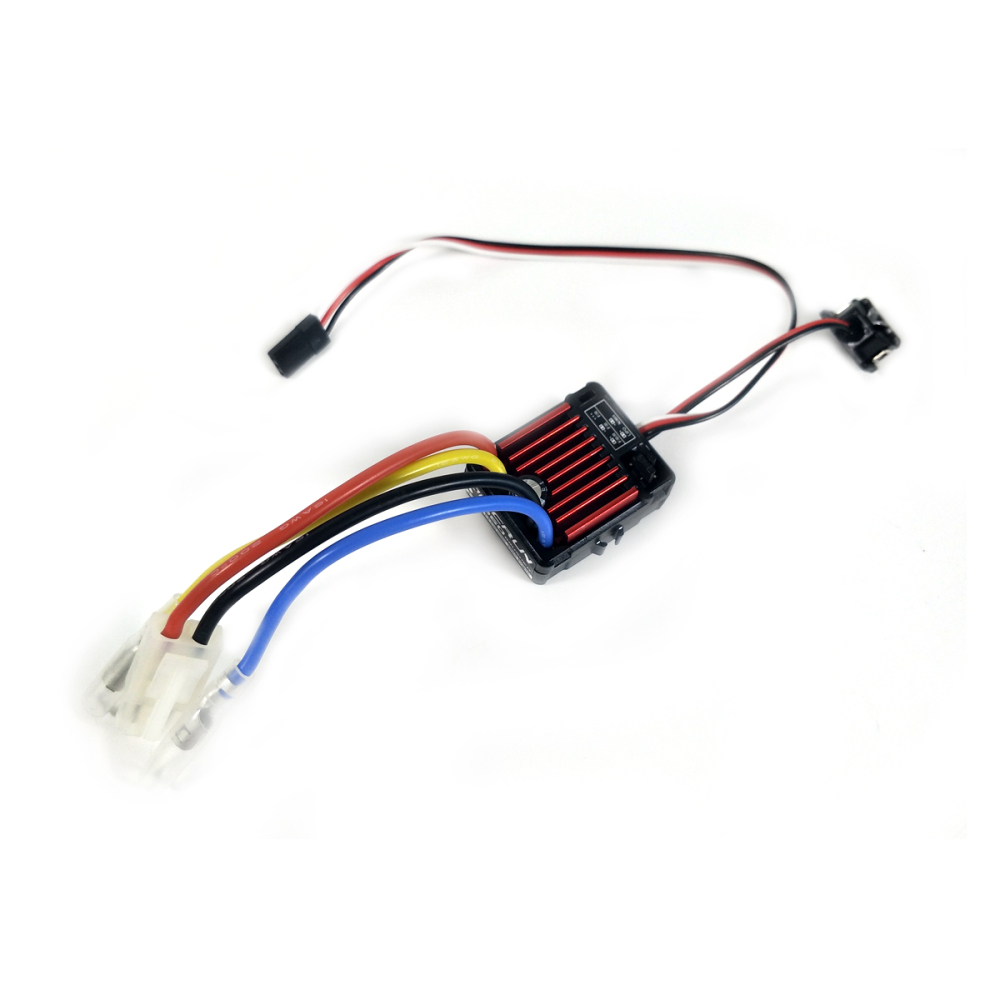

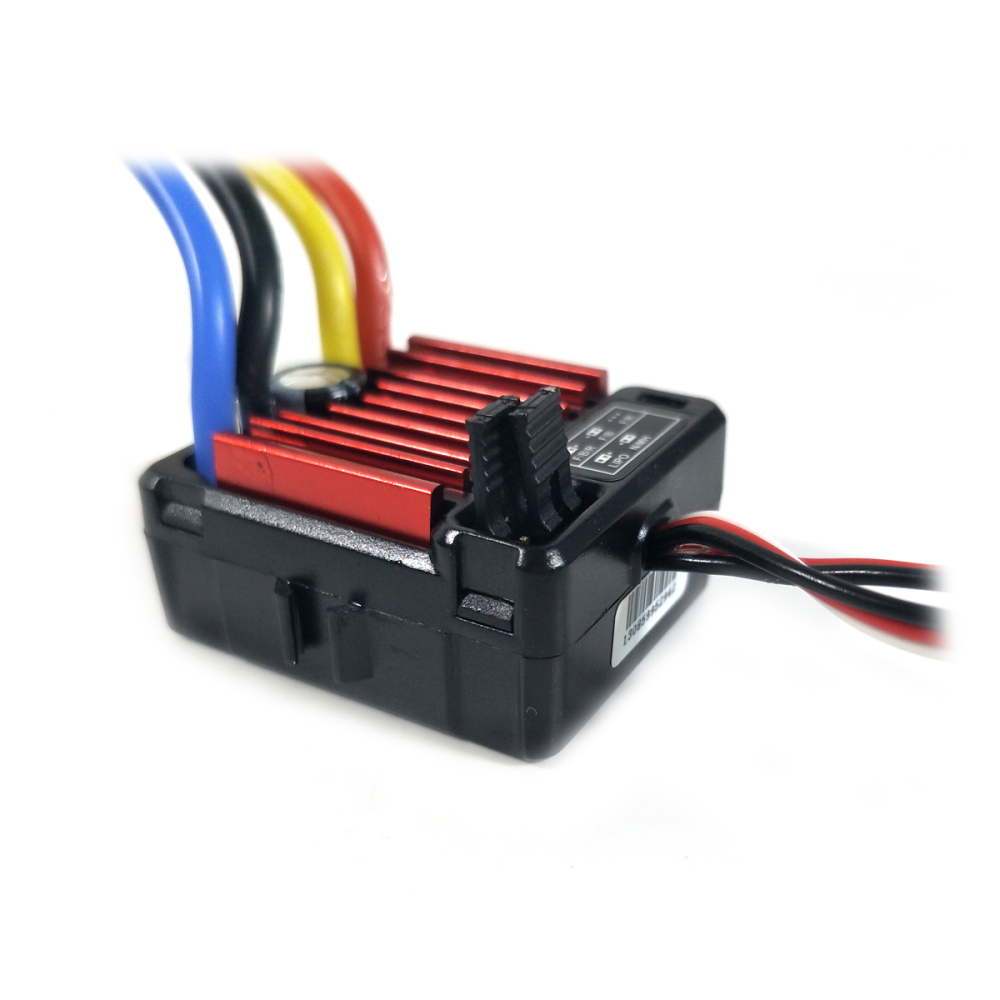

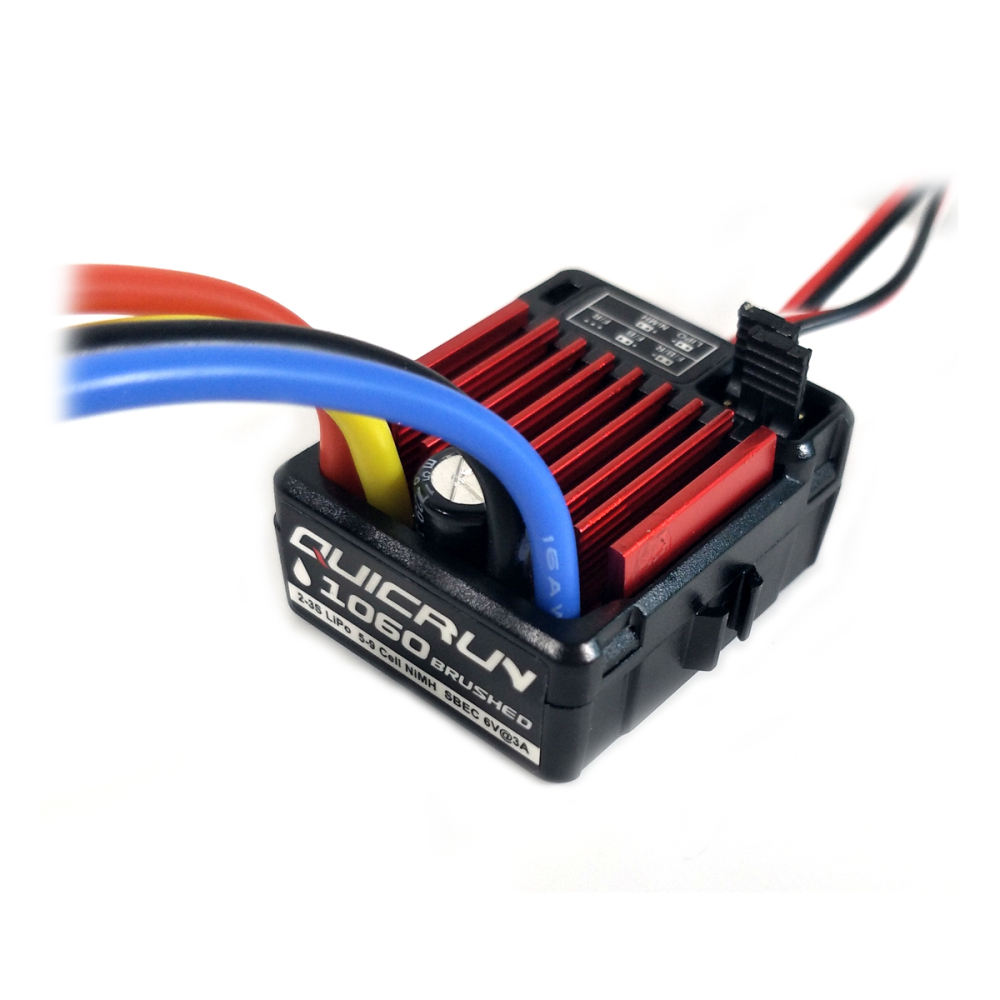

Model: 1060-BRUSHED
Fwd. Cont. / Peak Current: 60A /360A
Rev. Cont. / Peak Current: 30A /180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Motor Limit:
2S Lipo or 6 NiMH
540 or 550 Size Motor: ≥12T Or RPM<30000 7.2V
3S Lipo or 9 NiMH
540 or 550 Size Motor: ≥18T Or RPM< 20000 7.2V
4S Lipo or 12 NiMH
Not Available
Resistance: Fwd 0.001Ω, Rev 0.002Ω
BEC Output: 2A/5V (Linear Mode)
PWM Frequency: 1KHz
Dimension / Weight: 36.5*32*18 / 39g
Cooling Fan: Without cooling fan
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Net Weight: 122g

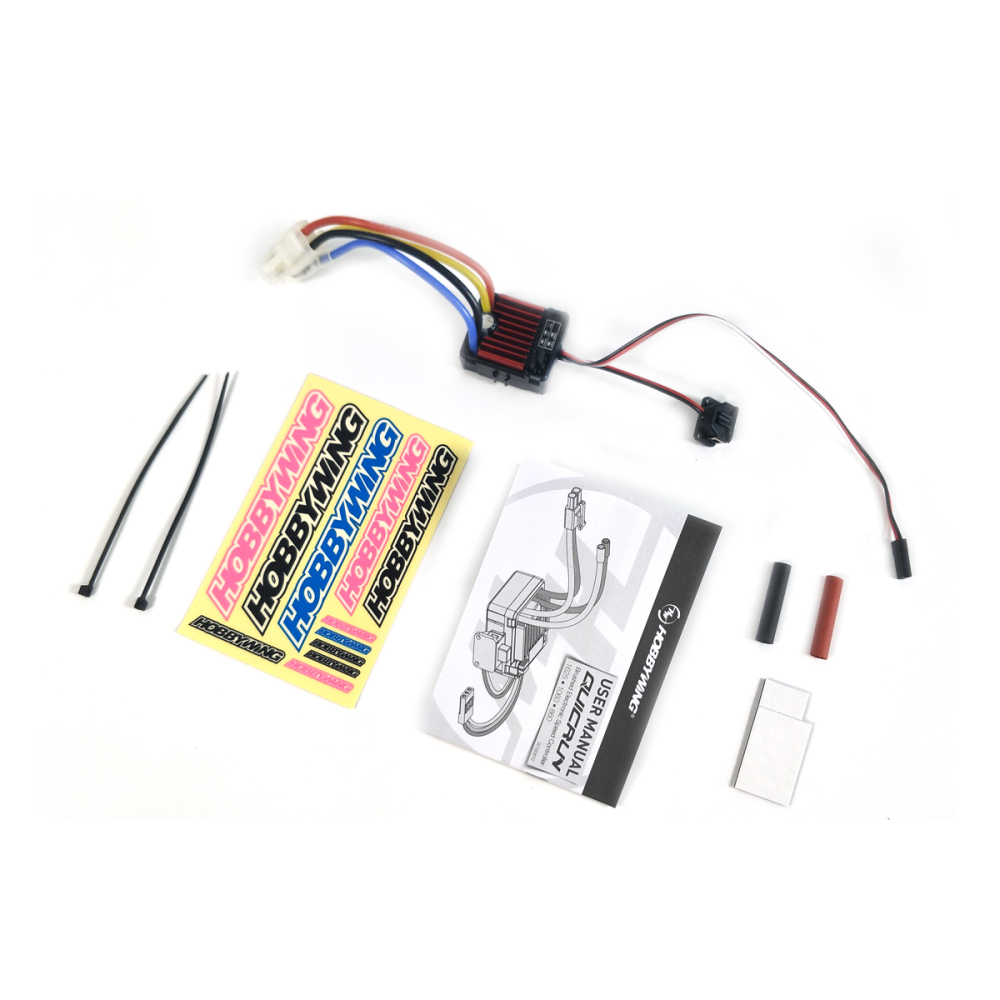

Package Contents:
1 x 100% Brand New 1060 Brushed ESC
