Features:
1. This equipment used in electric model car, and according to the following the information of choice scope configuration.
2. automatically find the center.
3. high-frequency drive system
4. The use of low-resistance field-effect inner tube
5. With forward and backward functions for car, boat
6. Great budget speed control upgrade from mechanical.
7. Electrical parameters: support: the nimh nickel cadmium battery 4-6 group (4.8-7.2 V) The Lithium battery 2 group (7.2V)
8. The move by lot current: forward 320 A reverse 240 A Brake 250A
9. The BEC output : 5.6V, 2A
10. Forward Current: 320A
11. Back Current: 240A
12.Voltage range :4.8-8 .4 V
13.PWM Frequency: 1.5KHZ
14.Size: 34 x 34 x 30 mm
15.Weight: 47g
Instructions:
1, the correct connection with the supply battery, wiring board ends of the red wire is positive, black was negative. (Or connect a standard DC battery plug)
2, turn on the power switch, if this time is no signal input motor will "beep - beep - beep" alarm sound. When a normal alarm tone will stop signal injection.
3. Open the remote control, adjust the trimmer into the median, red and green light goes out prevail. Hand Zhi push forward the green light to move forward at this time, and then pull back over the hand Zhi and enter the brakes for the state, the larger the brake pull back the more tight. Hand Zhi median Stepping back pull back into reverse again and the red light state with around 550 motors.
Note:
Do not enter the water and power supply reverse polarity
320A Brushed ESC following its Barge plug current is 1A
Packet Content:

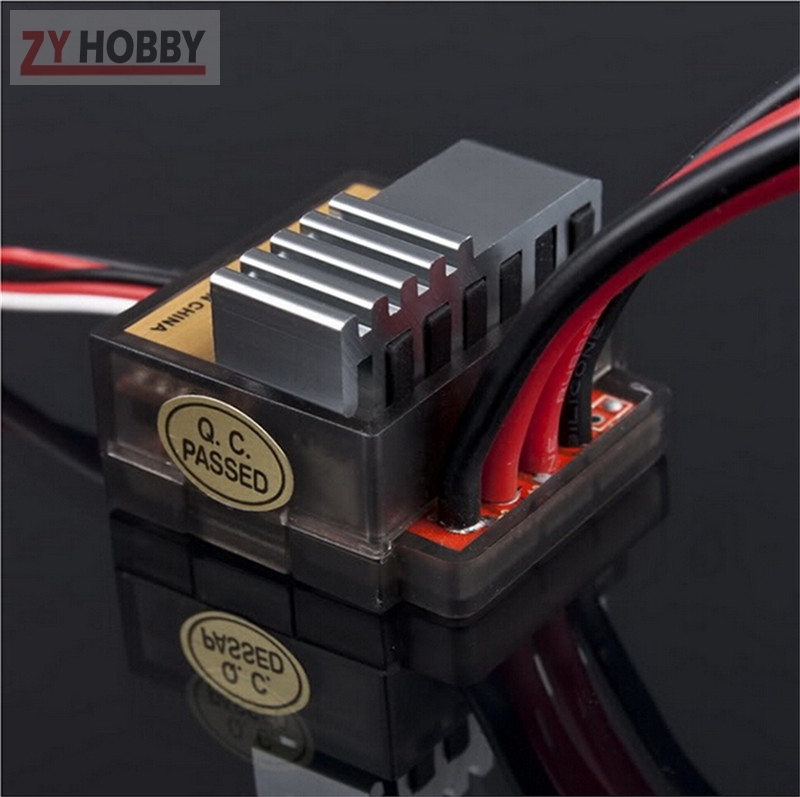

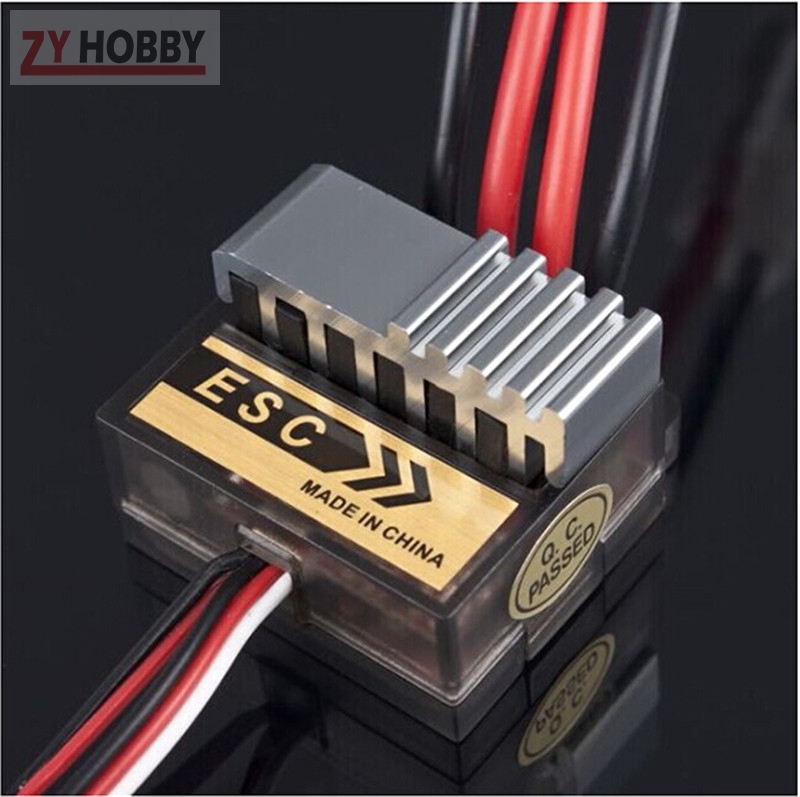

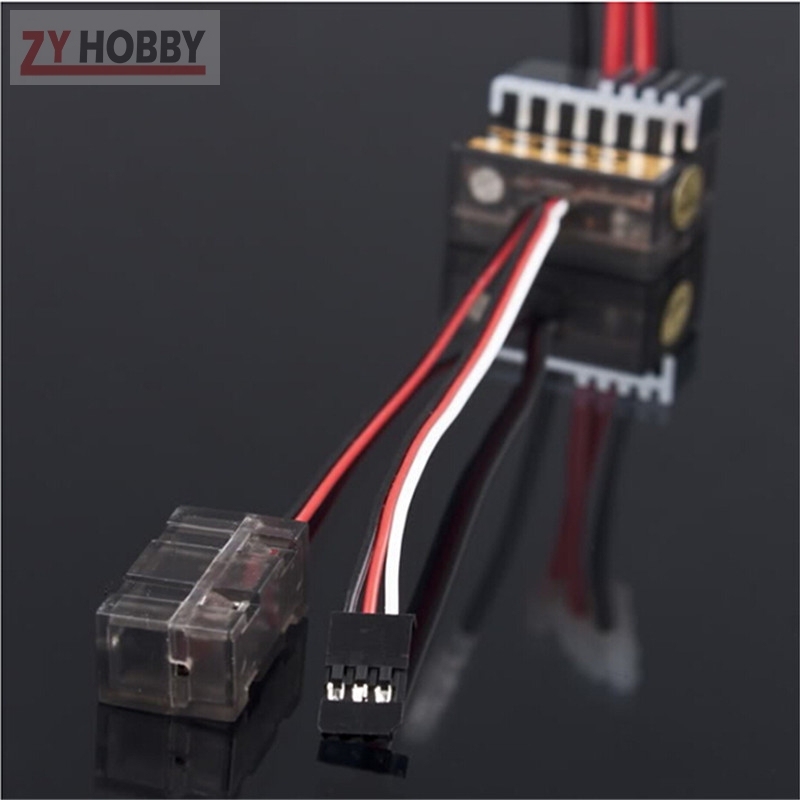

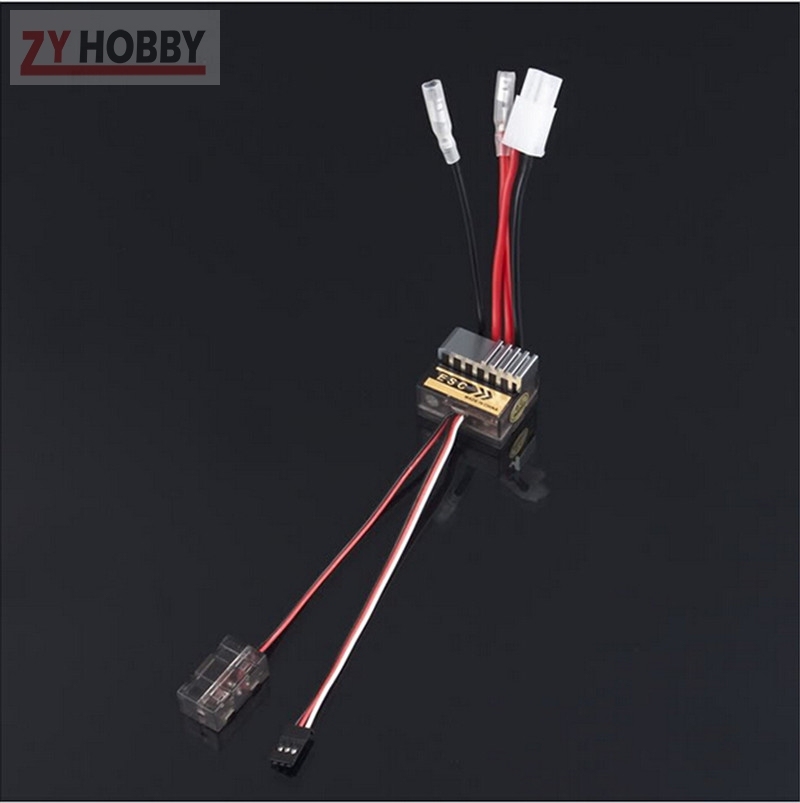

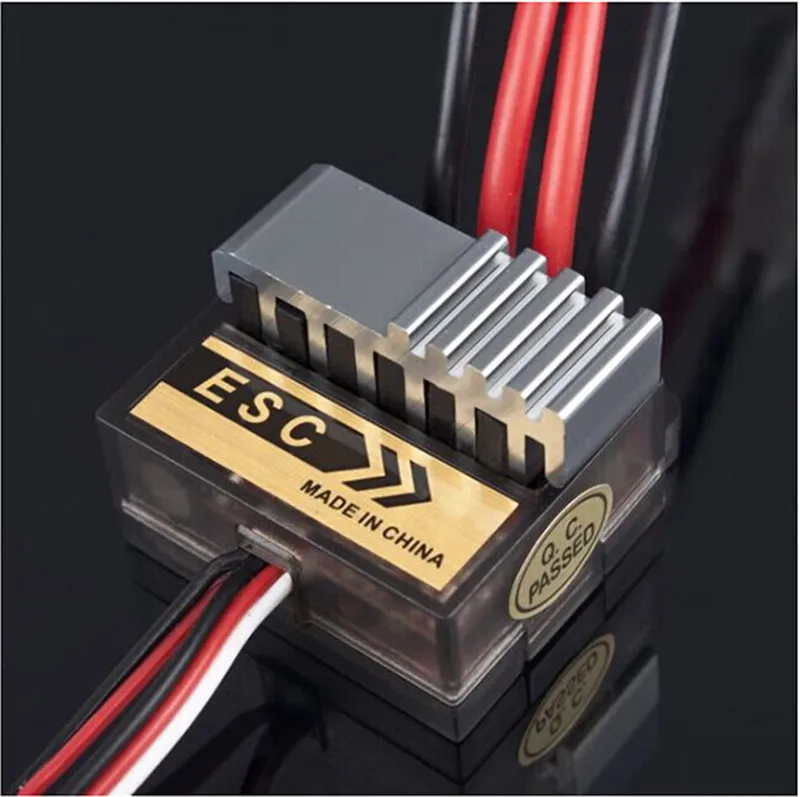

1 x 320A ESC
