Specification

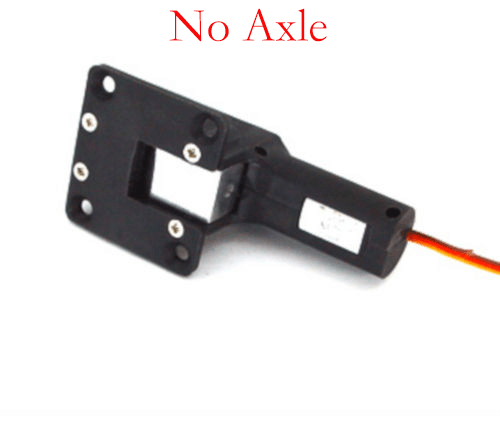

No. PZ-15091M Retract without Axle

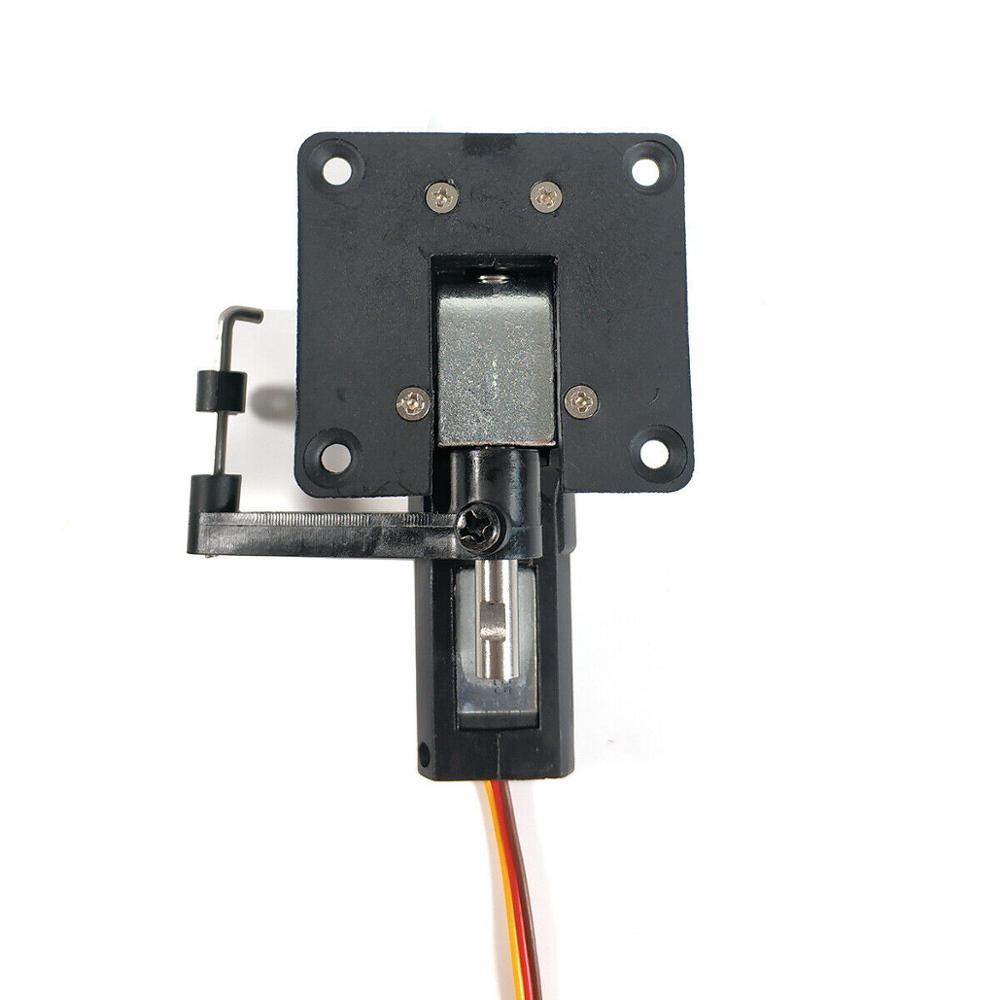

No. PZ-15091SN Nose Retract
- Size(L*W*H):73.5*44.0*28.0mm
- Weight: 82g
- Speed: 0.8s/90°@4.8v 0.6s/90°@6v
- Torque: [email protected] 3.0kg-cm@6v
- Landing Struct Diameter: 5mm
- Support Flight Weight 3.5kg
- Operating Voltage: 4.8v-6.0v
- Wire Length: 150mm

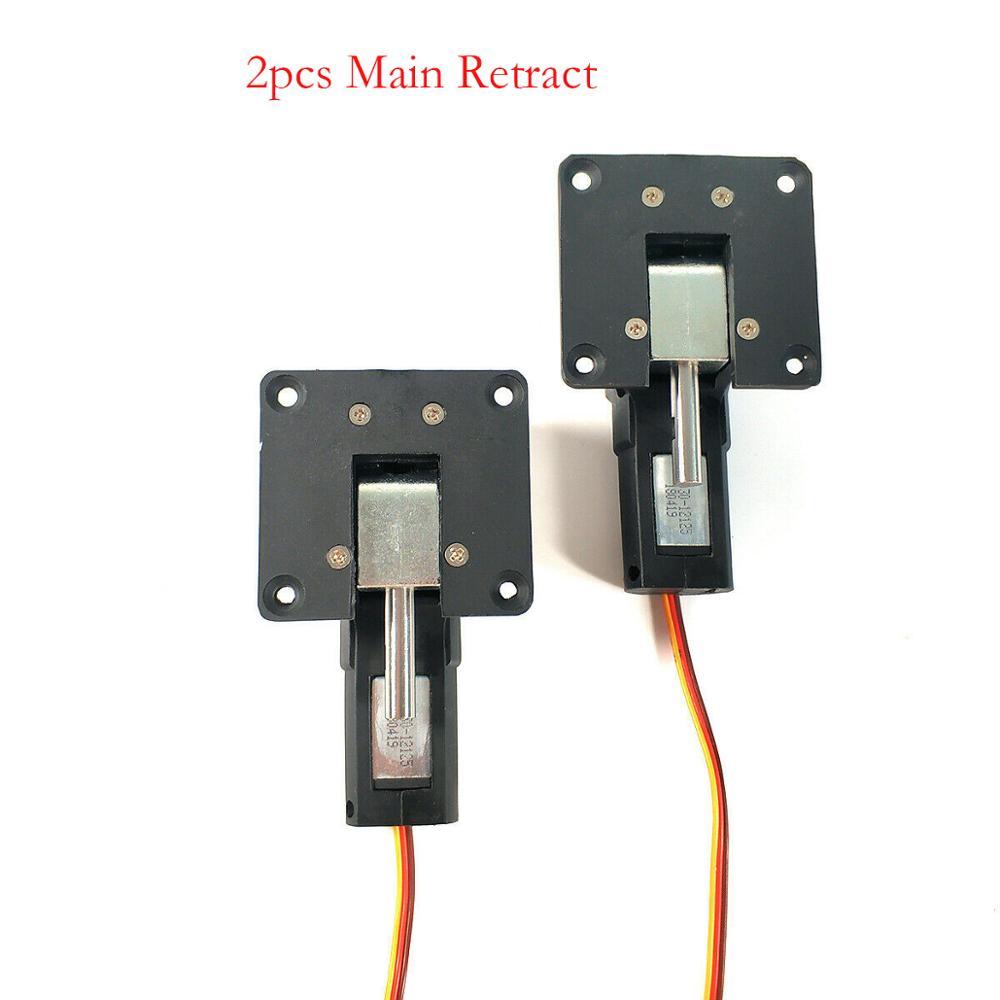

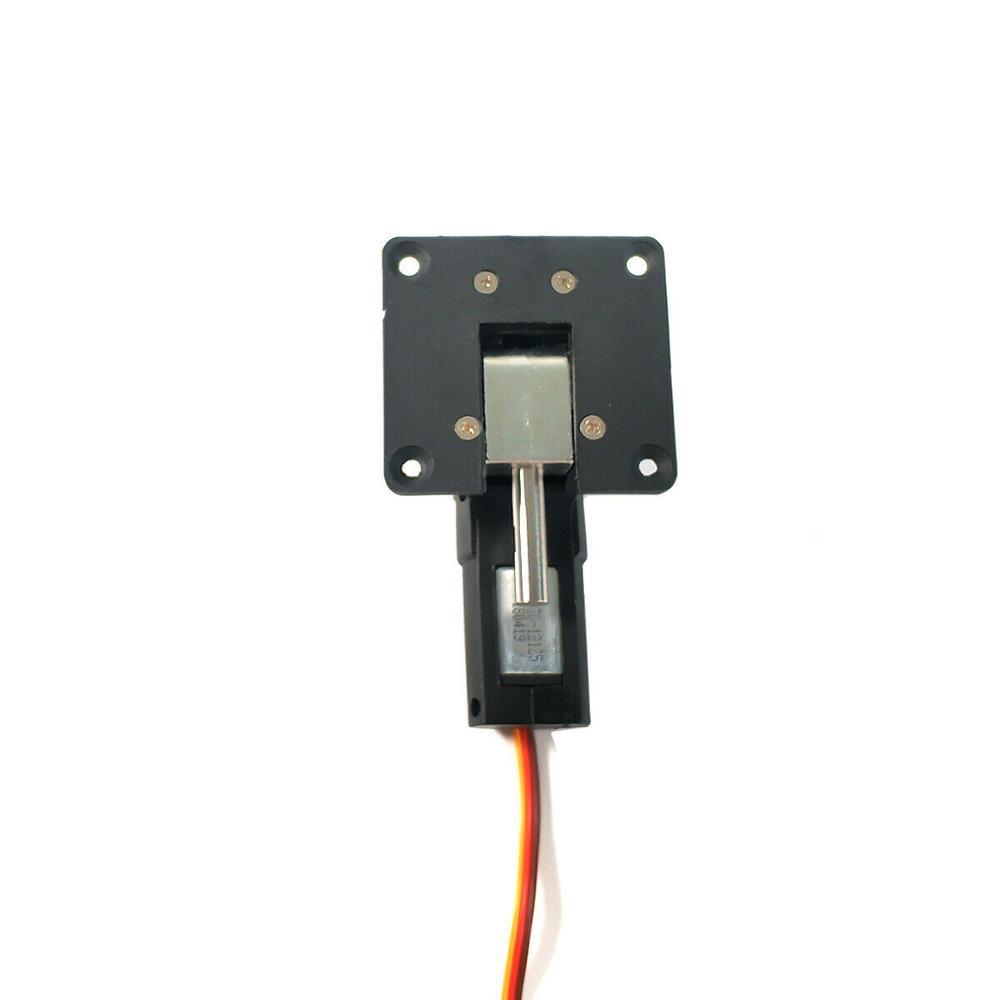

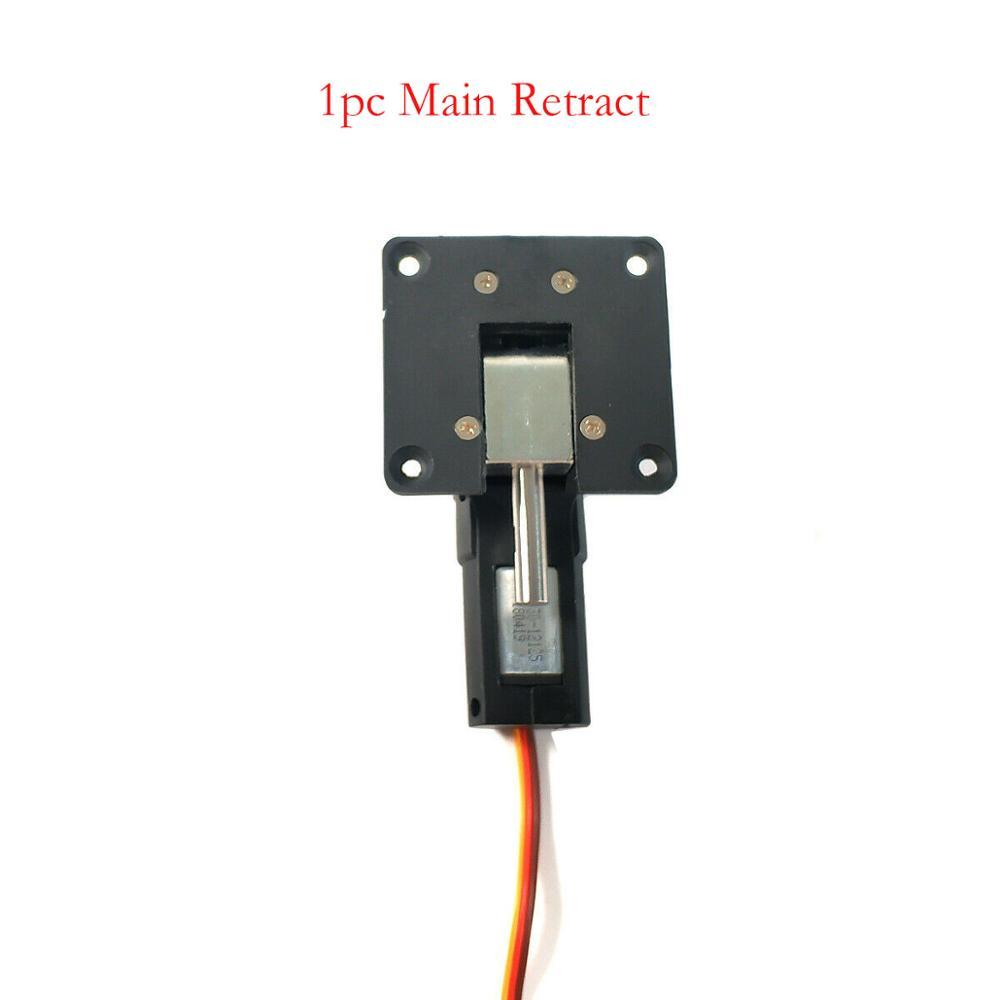

No. PZ-15091SM Main Retract
- Size(L*W*H):73.5*44.0*28.0mm / 2.89*1.73*1.1"
- Weight: 80g
- Speed: 2.0s/90° at 4.8v 1.8s/90°at 6v
- Stall Torque: 2.9+/-0.2 kg-cm at 4.8v 3.1kg+/-0.2kg-cm at 6v
- Landing Struct Diameter: 5mm
- Operating Voltage: 4.8v-6.0v
- Wire Length: 150mm
- Plug Type: JR Plug
- Maximum travel: 90°
- Use for wing span around 1m
- Support flight weight 3.5kg

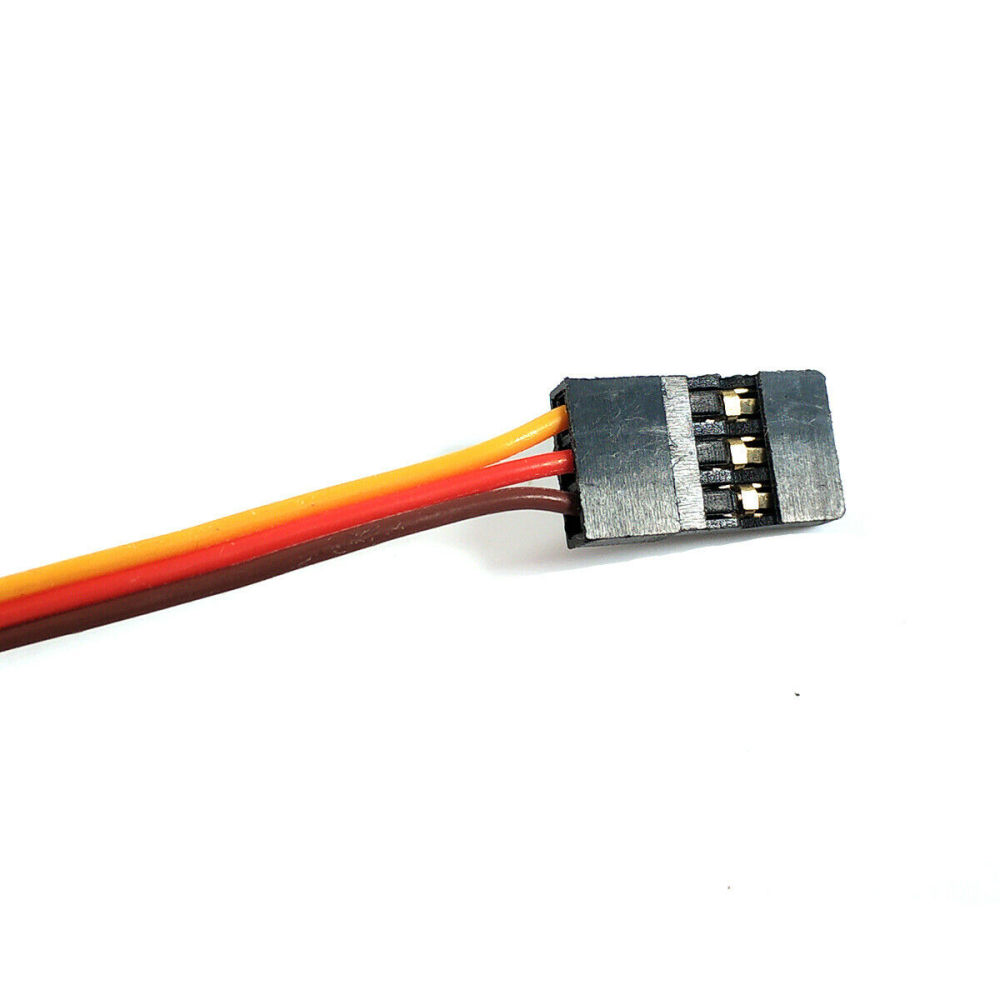

The Plug:
Golden Plated JR plug
Package include:
As you choose
we also offer 8kg Plane Retracts
