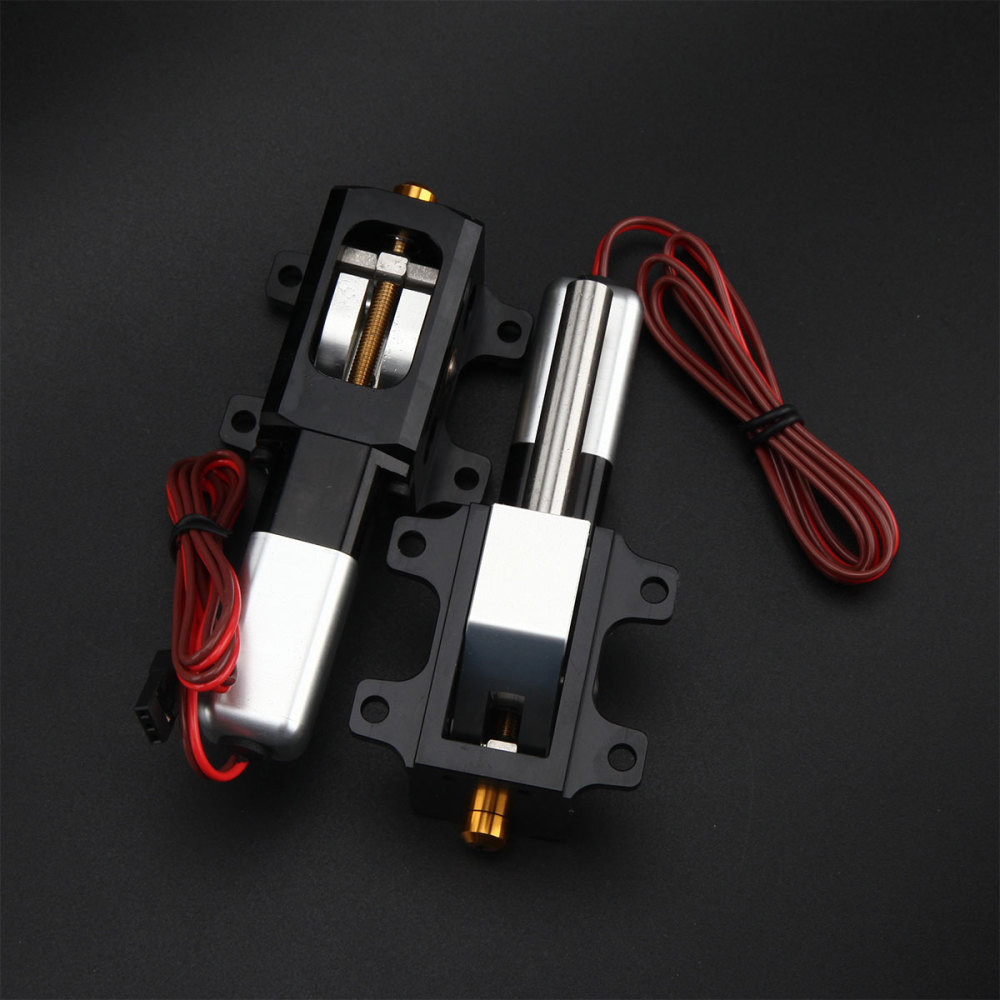

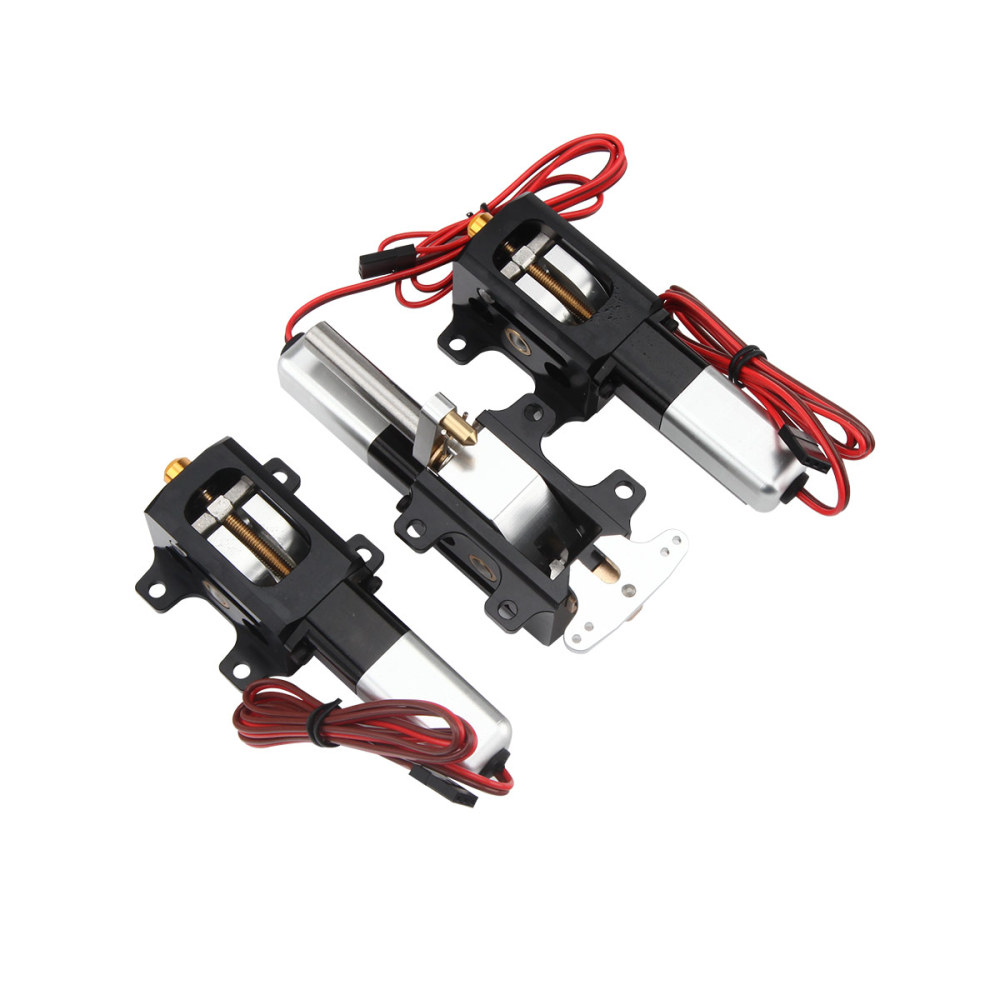

◇ CYS-R2090 90 Degree Electric Rotating Retract Landing Gear For 6.0~12kg Turbojet RC Airplane
- Item NO.: CYS-R2090
- Description : Standard 90° Electronic Landing gear ( Retract)
- Size : 103*24*32.5MM
- Torque : 25Kg.cm
- Speed : 5.6sec/90° at 6V ; 5.0sec/90° at 7V ; 4.6sec/90° at 8V
- Weight：160g(nose gear) / 140g(Main gear)
- Voltage : DC 6.0Volts ~8Volts
- Input Voltage Range: DC 5 - 9 Volt
- Pulse Width Range: 500~2500usec
- Used for 6 – 12kg Vortex / Jet aircraft
- Full aluminum case outside with unique design.
| Set Content |
Nose retract*1, Main retract*2 , Controller*1 , cable*2 |
| Weight |
160g(N) /142g(M) |
| Size |
103*24*32.5MM |
| Operating Speed (6.0V) |
5.6sec/90° |
| Operating Speed (7.4 V) |
5.0 sec/90° |
| Operating Speed 8.4 V) |
4.6sec/90° |
| Torque |
25kg.cm |
| Stall Current |
5.8A/7.5A |
| Voltage |
6.0 ~8.0V |
| Input Voltage Range |
DC 5 -9 Volt |
| Stall Current |
1.8A |
| Max Current |
14A |
| Breaking Current |
1.2A |
| Pulse Width Range |
500 ~ 2500usec |

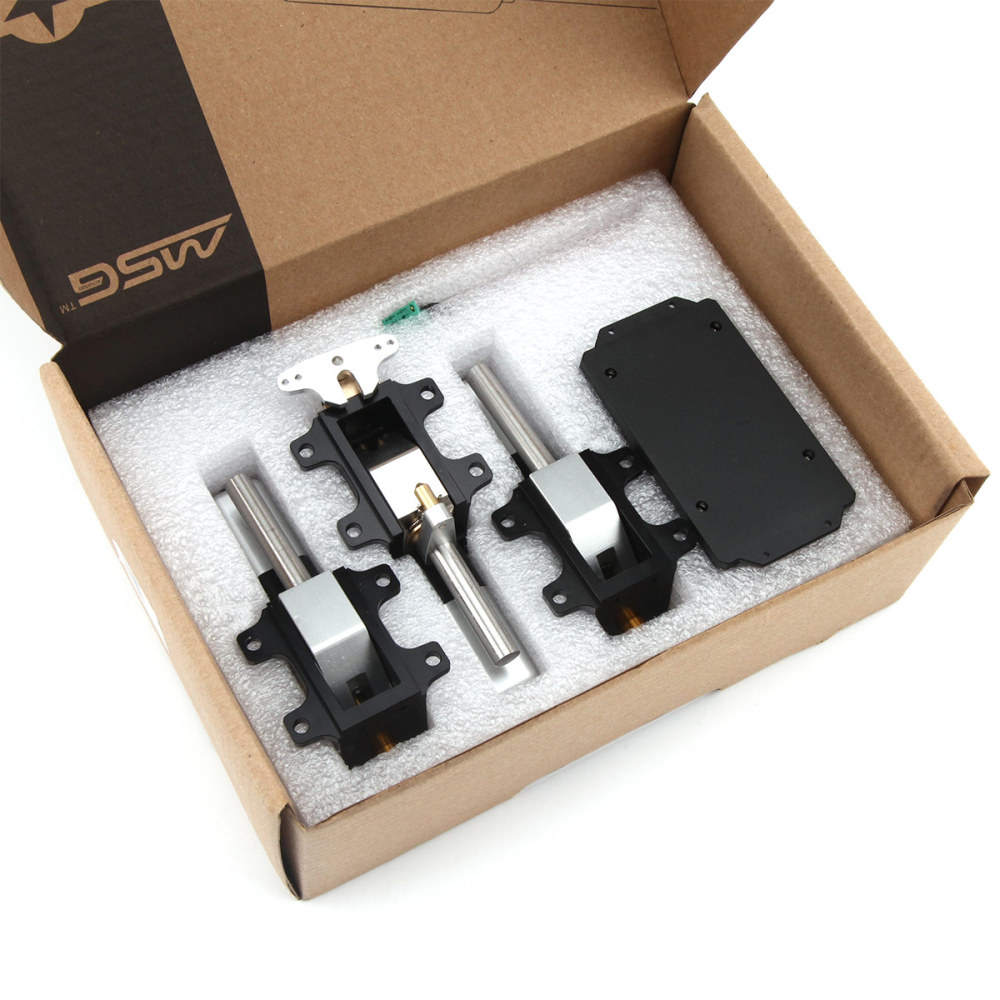

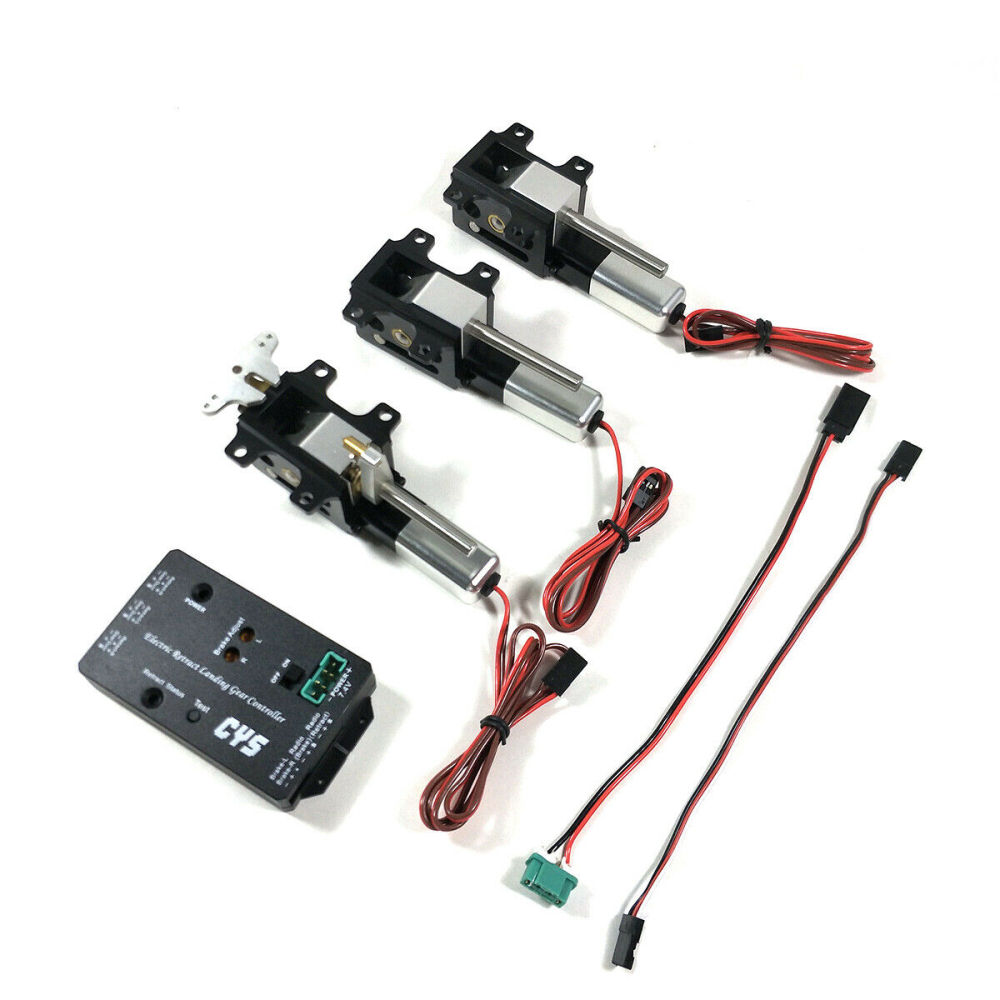

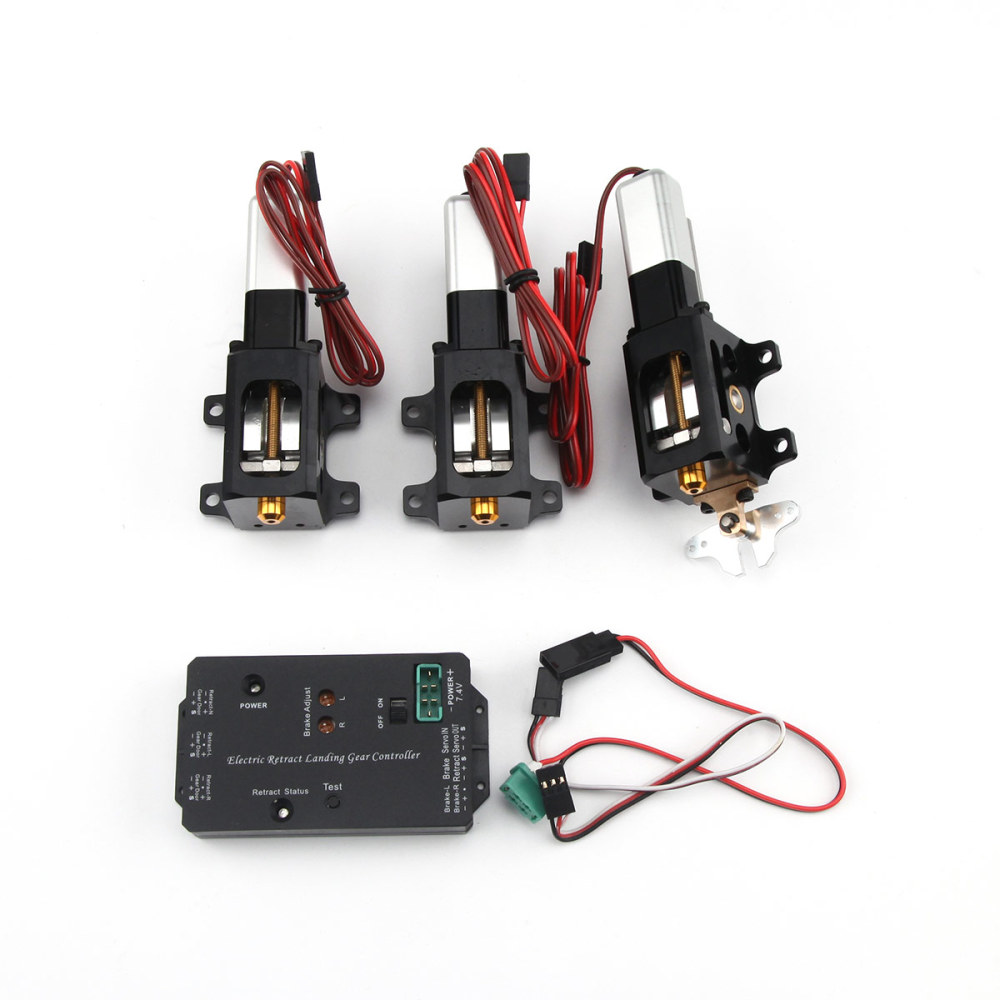

Package includes

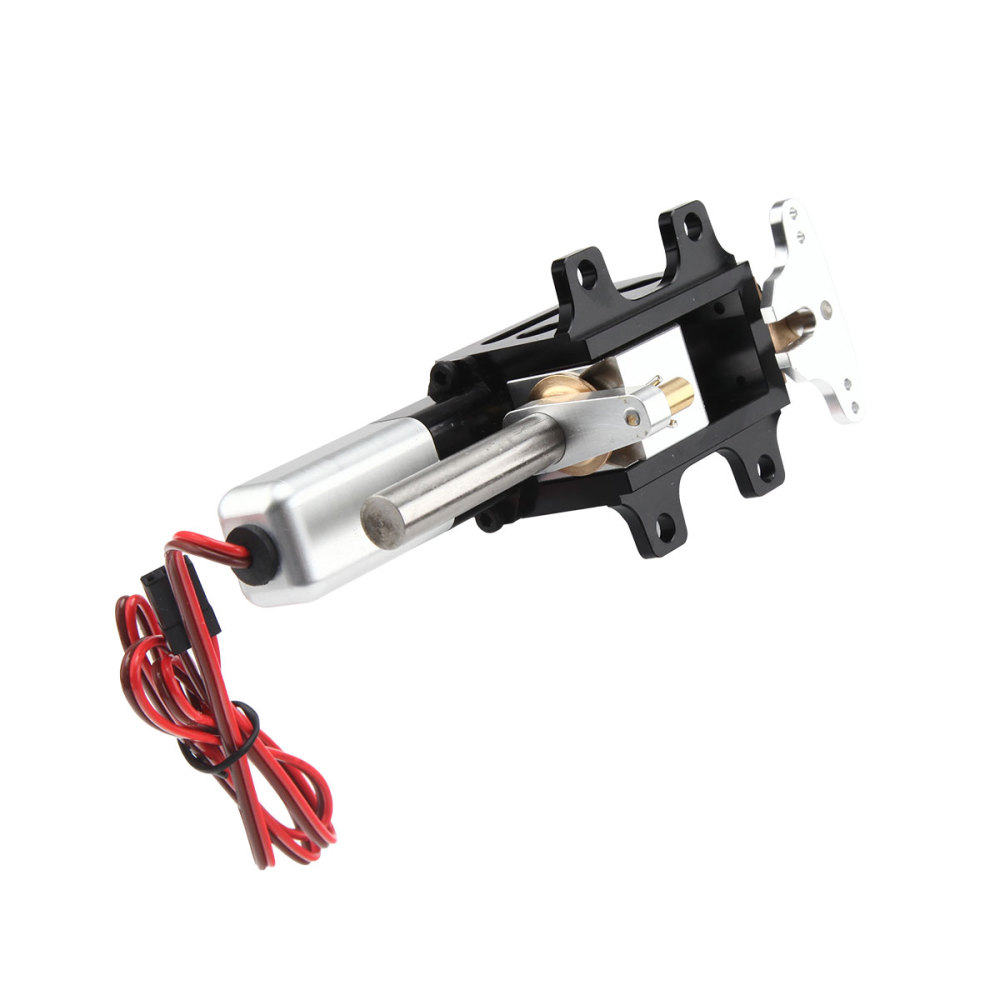

- 1* Nose Retract (Direction can be changed)
- 2* Main Retracts (Fixed Direction)

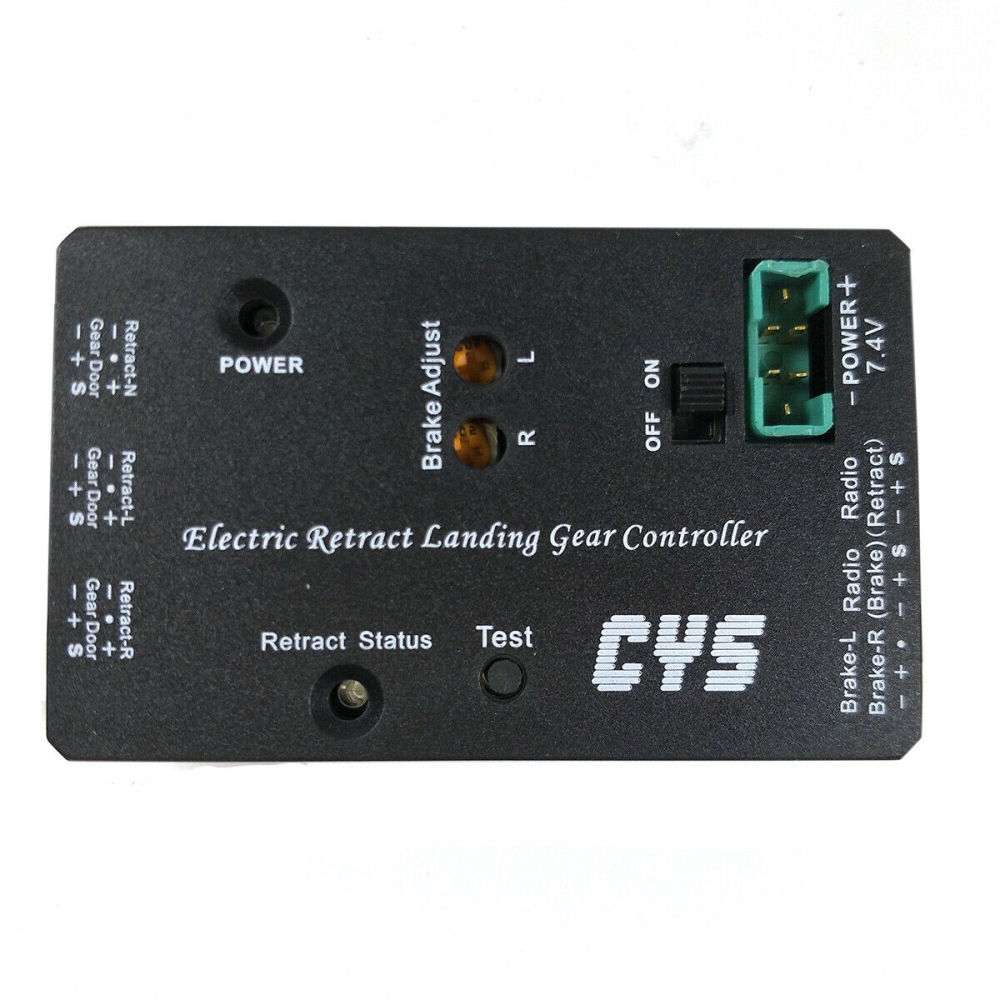

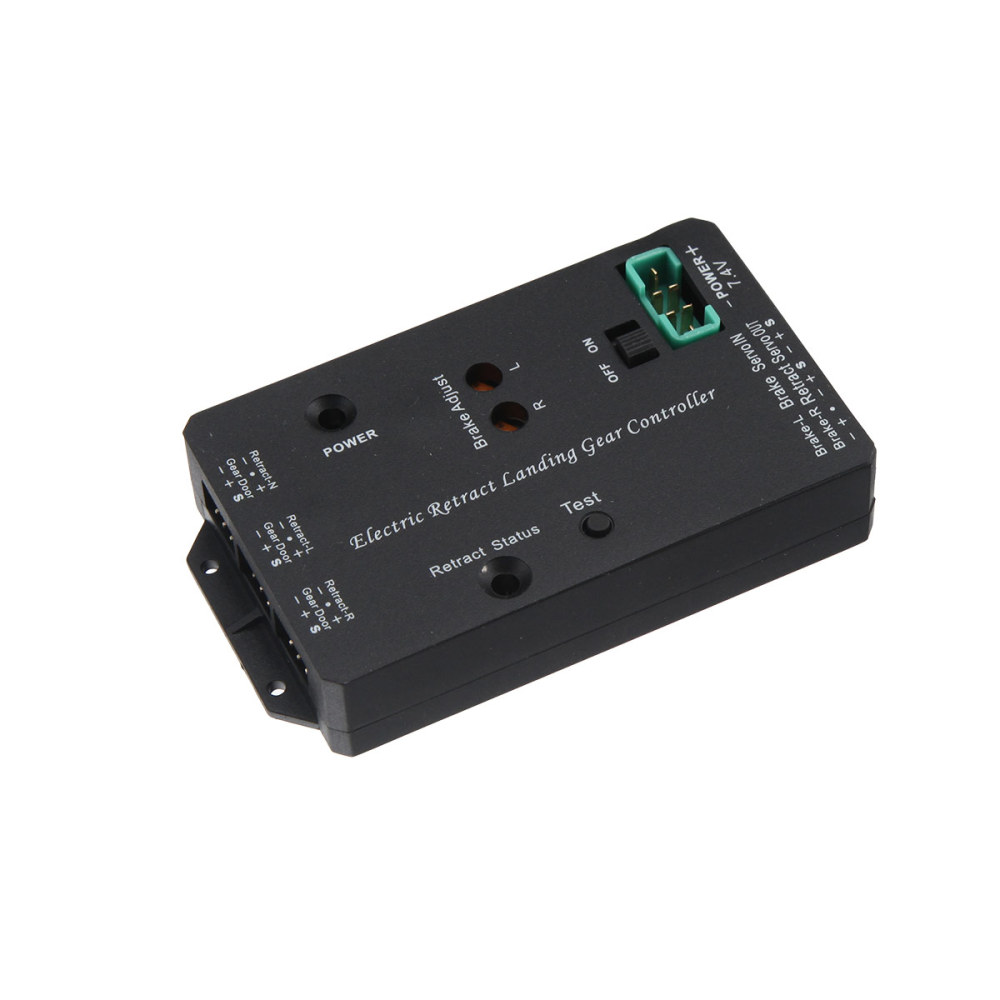

- 1* Controller
- 2* Cables
Nose Retract 2D drawing
Main Retract 2D drawing
