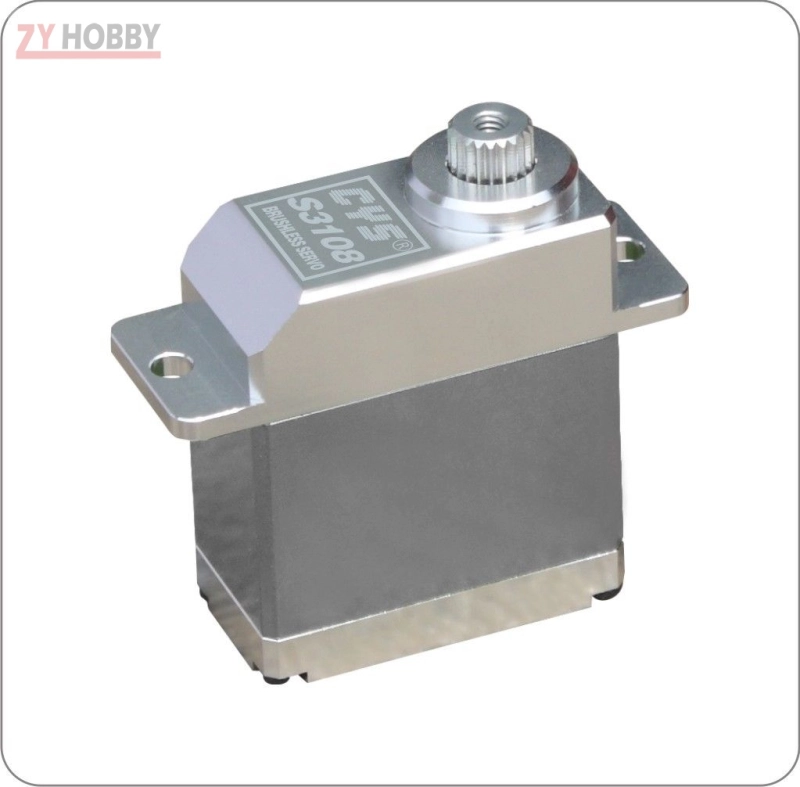

CYS-S3108 20g 3.2kg.cm Full Metal Digital Coreless Gear Servo Zyhobby

Name: CYS-S3108 20g 3.2kg.cm Full Metal Digital Coreless Gear Servo Zyhobby
Brand: ZYHOBBY
SKU: CYS-S3108
Price: 23.5 USD
Availability: OutOfStock

SKU: CYS-S3108

0.0 (0 Reviews)

30 Sold

$23.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Specifications:

Dimensions :23*12*28.5mm

Operating Voltage: DC6.0-7.4V

Dead band: 2μsec

Operating Speed (6.0V): 0.06sec/60 degrees

Operating Speed (7.4V): 0.05sec/60 degrees

Stall Torque (6.0V): 2.8 kg.cm

Stall Torque (7.4V): 3.2 kg.cm

Running Current(6.0V): 80mA

Running Current(7.4V):120mA

Stall Current(6.0V): 1.5A

Stall Current(7.4V): 1.6A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 20 g (0.71oz)

Package include :

1X servo
