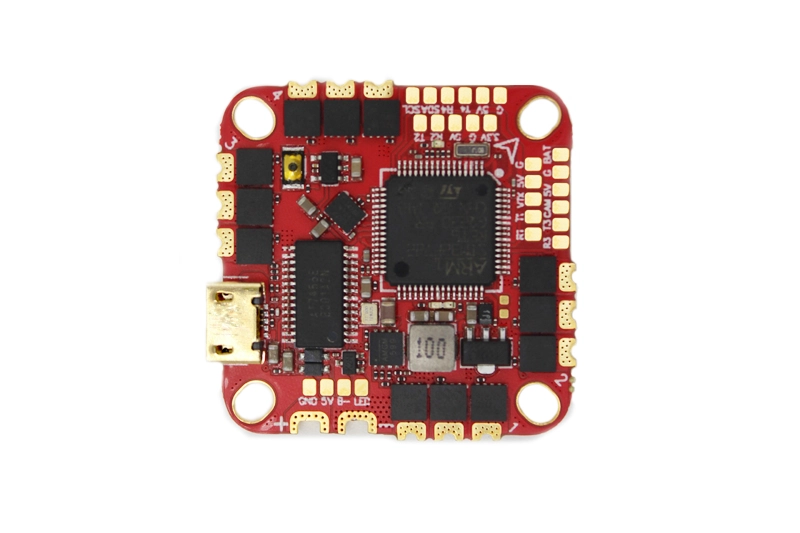

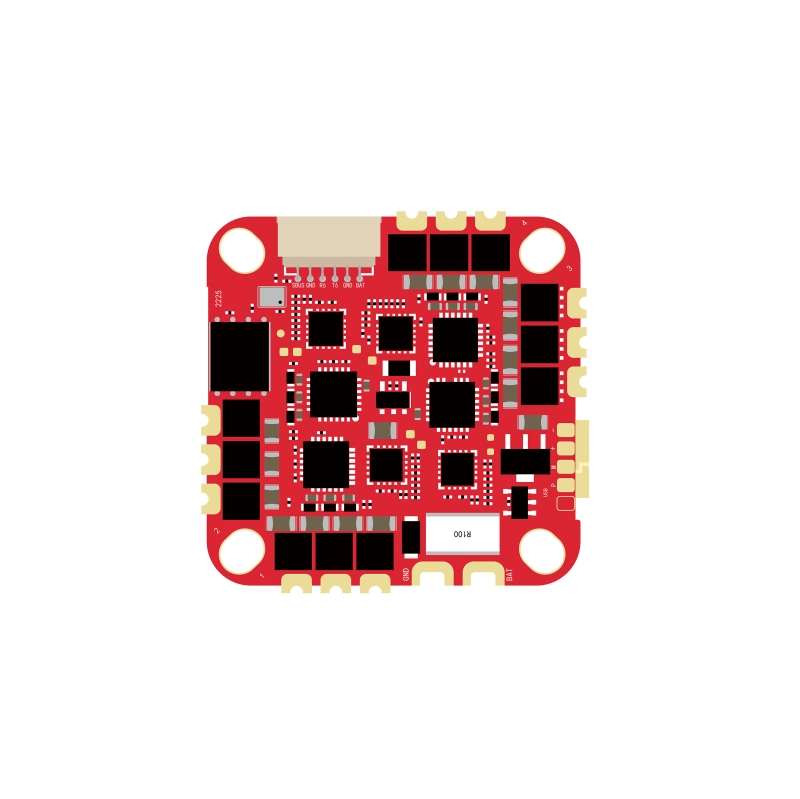

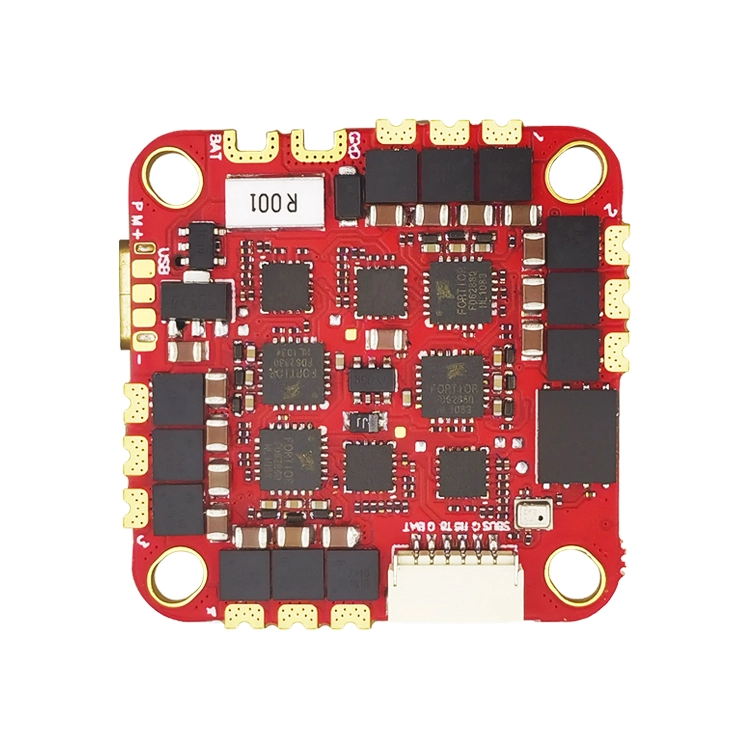

Product Features:
1.PCB adopts high-end 8-layer 2oZ thickened copper skin, stronger over-current capability, good heat dissipation.
2.MOS adopts imported 40V high current-resistant mos, long life with load capacity.
3. Adopt industrial grade LDO, high temperature resistance.
4. Adopt high quality Japan Murata capacitor, strong filtering performance.
Size: 32*32mm (25.5mm-26.5mm mounting holes)

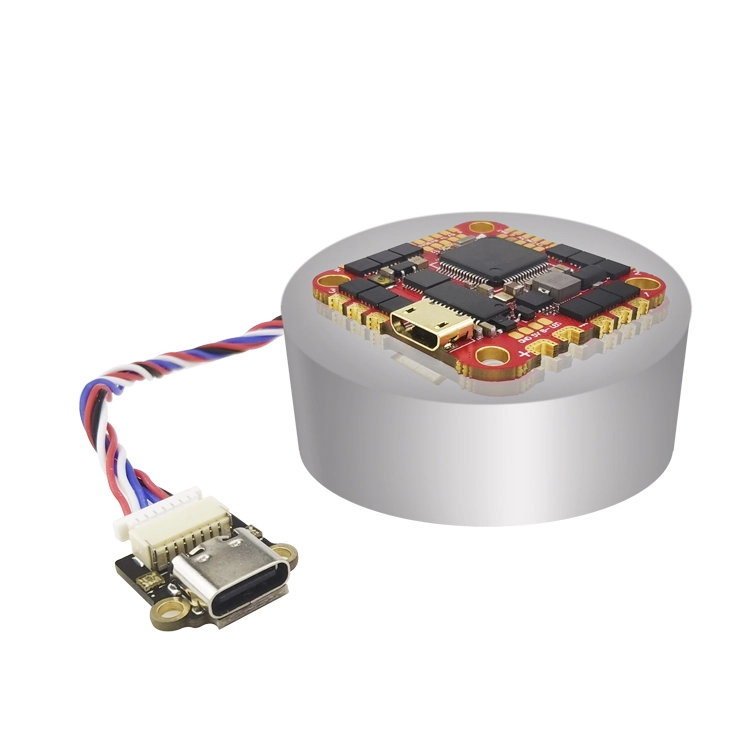

Package size: ø63*32mm
Product net weight:7g
Packing weight:25g
Recommended motors: 2004 series
Flight Control Parameters:
CPU: STM32F722RET6
IMU: ICM42688
OSD: AT7456E
Barometer: Integrated
BEC : 5V/3A
Uart : 5
LED : Support WS2812 and other programmable
Sensor : Built-in current sensor
Flight Control Firmware Version : HAKRC F722D
Receiver : CRSF/ Frsky/ Futaba/ Flysky/
TBS Crossfire/ DSMX:DSM2 receiver
ESC Parameters:
Firmware Support: BLHELI_ S
Protocols supported: PWM, Oneshot125, Oneshot42.
multishot, dshot150, dshot300, dshot600
Input Voltage: 2S-6S Lipo
Continuous Current: 40A
Peak Current: 50A
Ammeter scale value: 450
Firmware version: BLHELI _S (G- H-30)
Packing list:
Yellow shock ball x 4, XT30 power cable x 1.

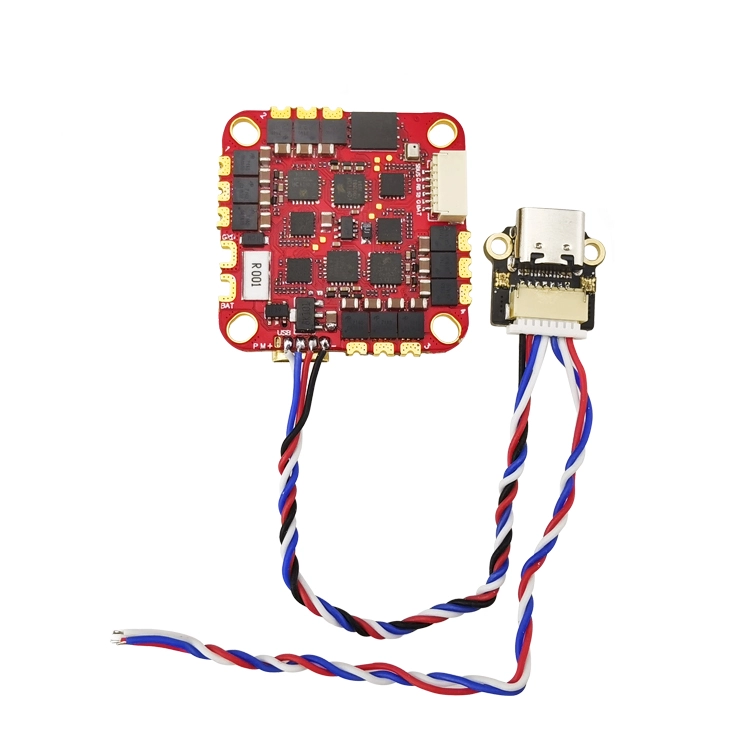

Type-C USB small board x 180mm long SH1.0/7P single-ended cable x 1.
