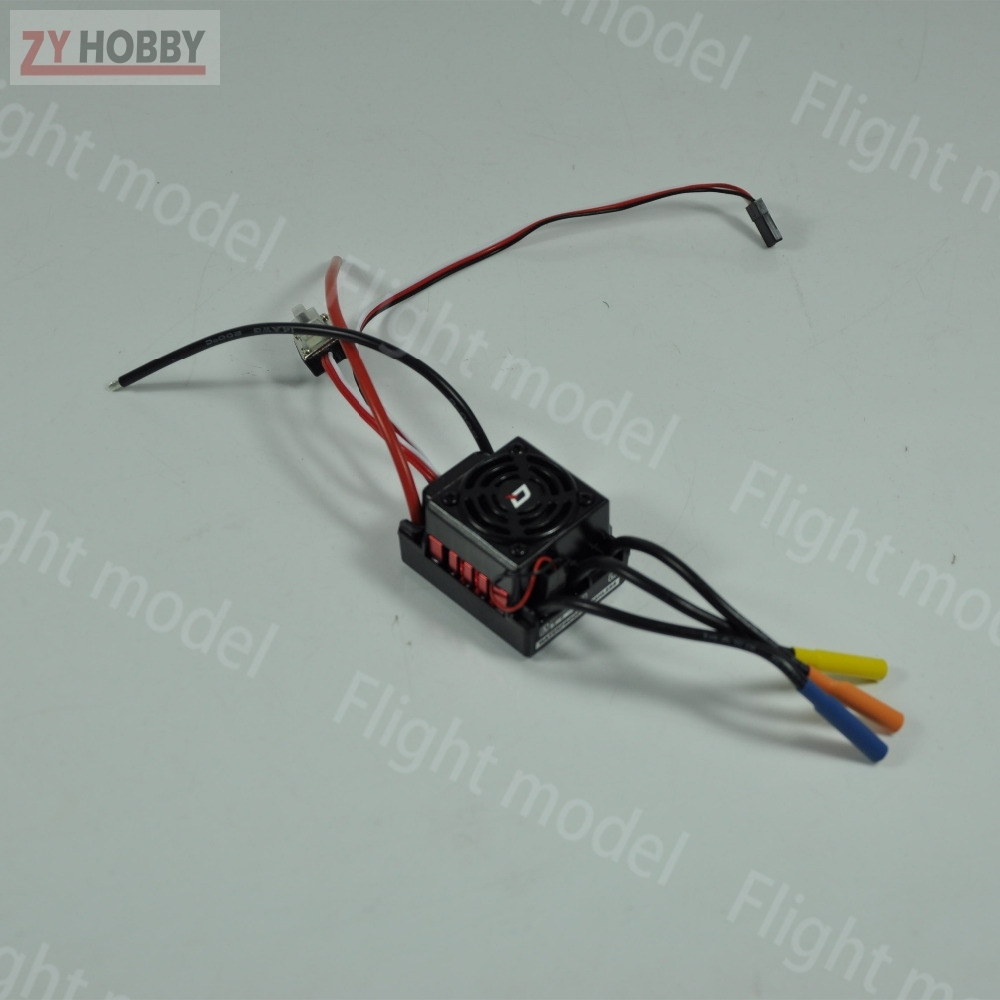

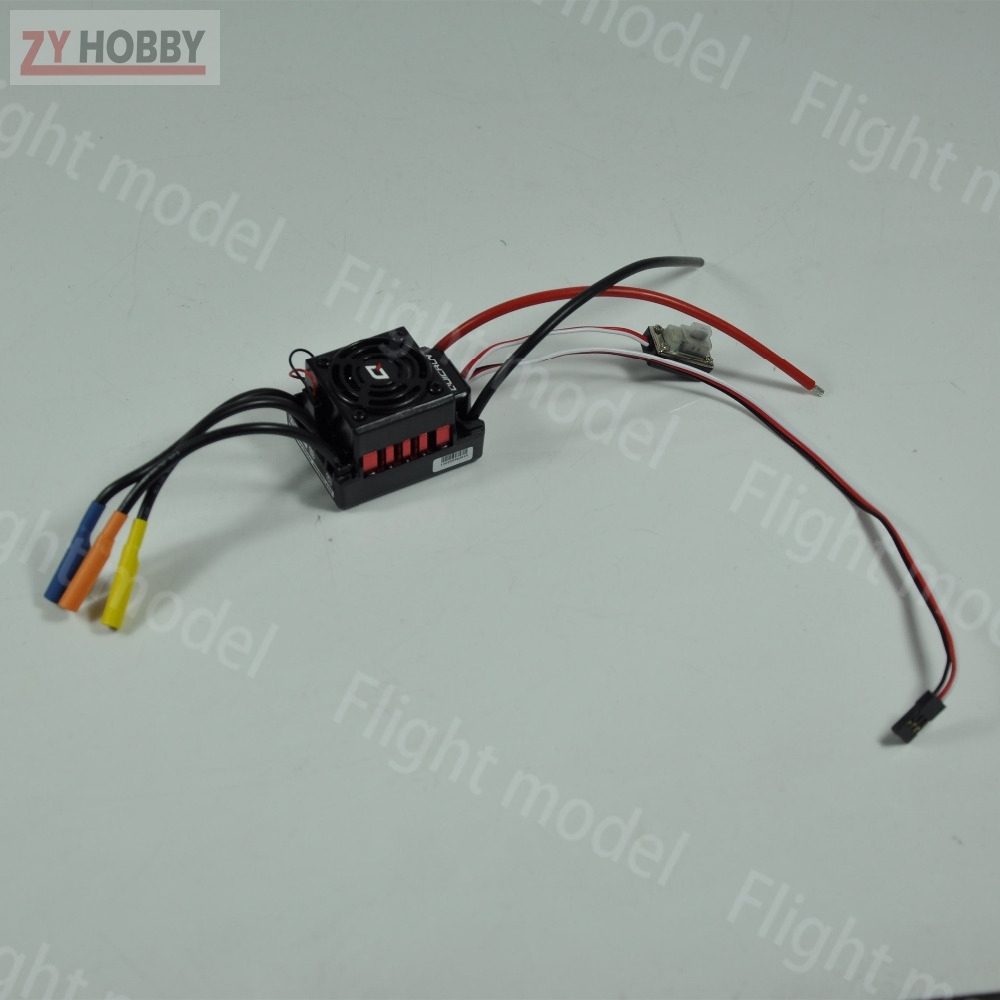

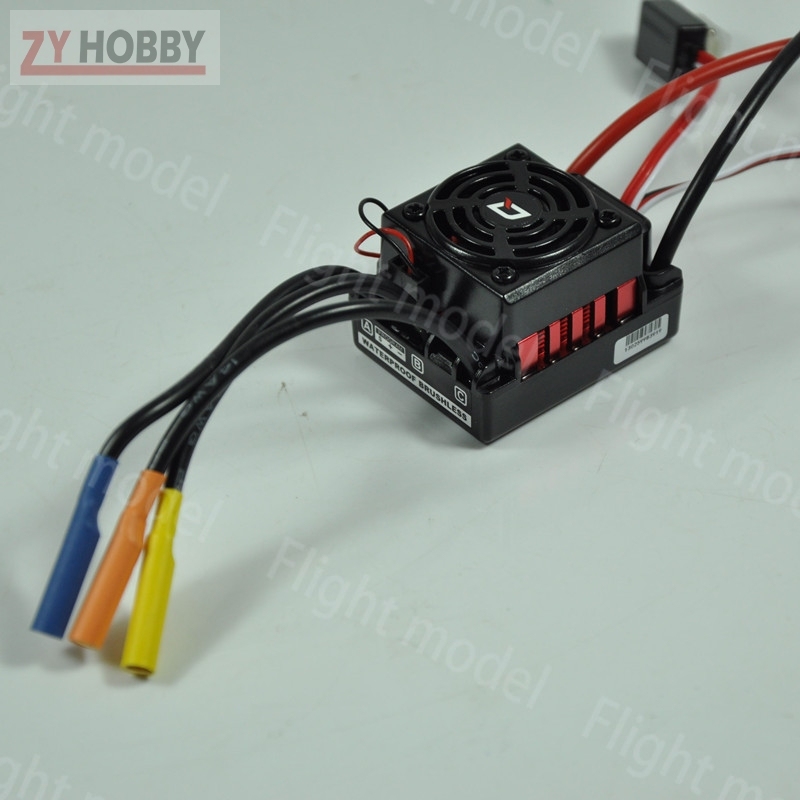

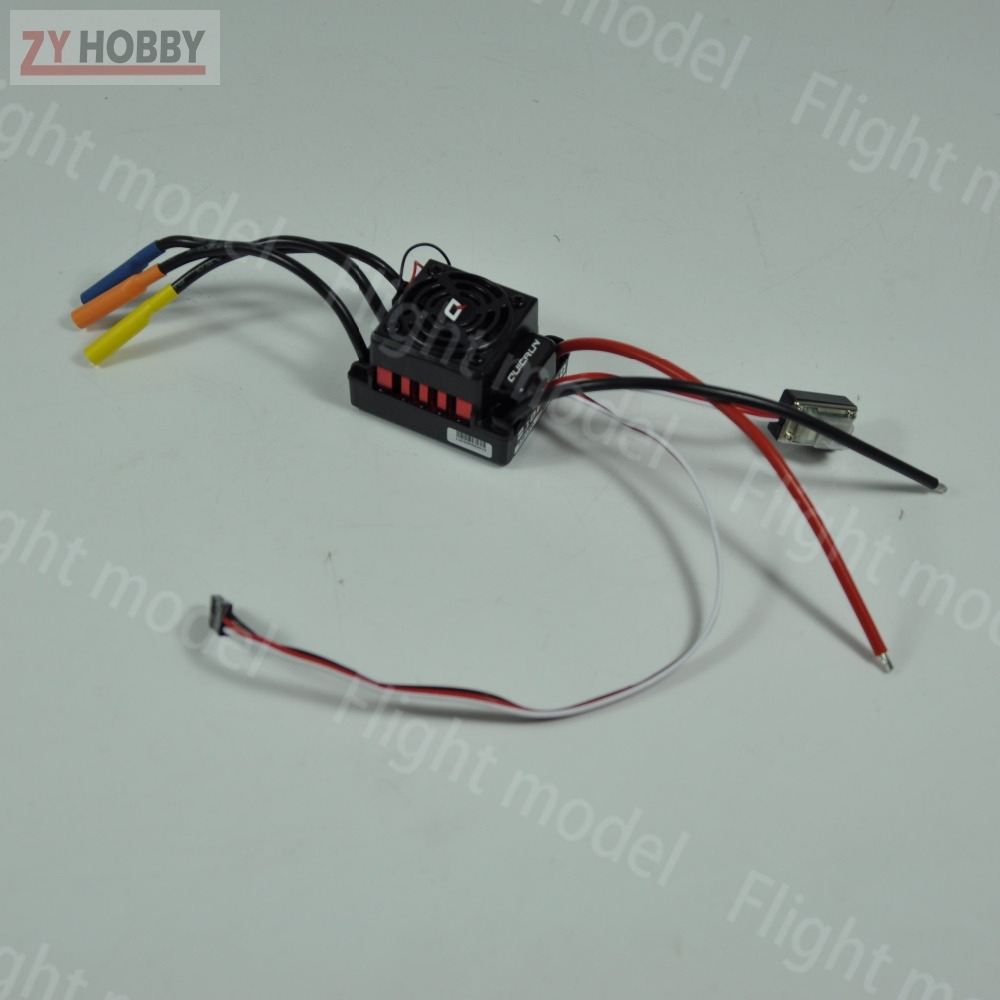

Hobbywing QuicRun 60A Waterproof ESC QUICRUN-WP-10BL60 Electric Speed Controller For 1/10 Sport Touring Car Buggy Monster Truggy

SKU: HWQR-WP-10BL60
0.0 (0 Reviews)
0 Sold
$0.00 $49.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • Hobbywing QuicRun 60A Waterproof ESC QUICRUN-WP-10BL60 Electric Speed Controller For 1/10 Sport Touring Car Buggy Monster Truggy
  • Hobbywing QuicRun 60A Waterproof ESC QUICRUN-WP-10BL60 Electric Speed Controller For 1/10 Sport Touring Car Buggy Monster Truggy
  • Hobbywing QuicRun 60A Waterproof ESC QUICRUN-WP-10BL60 Electric Speed Controller For 1/10 Sport Touring Car Buggy Monster Truggy
  • Hobbywing QuicRun 60A Waterproof ESC QUICRUN-WP-10BL60 Electric Speed Controller For 1/10 Sport Touring Car Buggy Monster Truggy
  • Description

Product description:

1.1 Water-proof and dust-proof for all-weather races.
(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
1.2 External programming port, easy to connect to the Program Card when setting the ESC.
1.3 Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
1.4 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
1.5 Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
1.6 One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
1.7 Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

2. Specifications

Model QUICRUN-WP-16BL30 QUICRUN-WP-10BL60 QUICRUN-WP-8BL150
Cont./Peak Current/ Resistance 30A/180A/0.002Ω 60A/360A/0.001Ω 150A/950A/0.00035Ω
Motor Type Supported Sensorless Brushless Motor
Car Applicable 1:18 & 1:16 On-road/Off-road/Buggy/Monster 1:10 On-road/Off-road/Buggy/Monster 1:8 Buggy/Monster
Motor Limit

For 2S Lipo or 6 cells NiMH:
1. On-road: 2435-size or smaller motor with the KV<8000
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000

For 3S Lipo or 9 cells NiMH:
1. On-road: 2435-size or smaller motor with the KV<5500
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500

For 2S Lipo or 6 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<6000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<4000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300

For 4S Lipo or 12 cells NiMH:
4274-size or smaller motor with the KV<3000

For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400



Battery 4-9 Cells NiMH
2-3S Lipo
4-9 Cells NiMH
2-3S Lipo
9-18 Cells NiMH
3-6S Lipo
BEC Output 6V/1A (Linear Mode) 6V/3A (Switch Mode) 6V/3A (Switch Mode)
Size/ Weight 36(L)*28(W)*16(H) / 38g 48.5(L)*38(W)*32(H) / 90g 59.5(L)*48(W)*42(H) / 178g
External Program Port Not Available Available Available
Working voltage of Fan No cooling fan From battery directly without regulating From BEC (6V)


Package includes:
Hobbywing QUICRUN-WP-10BL60 *1

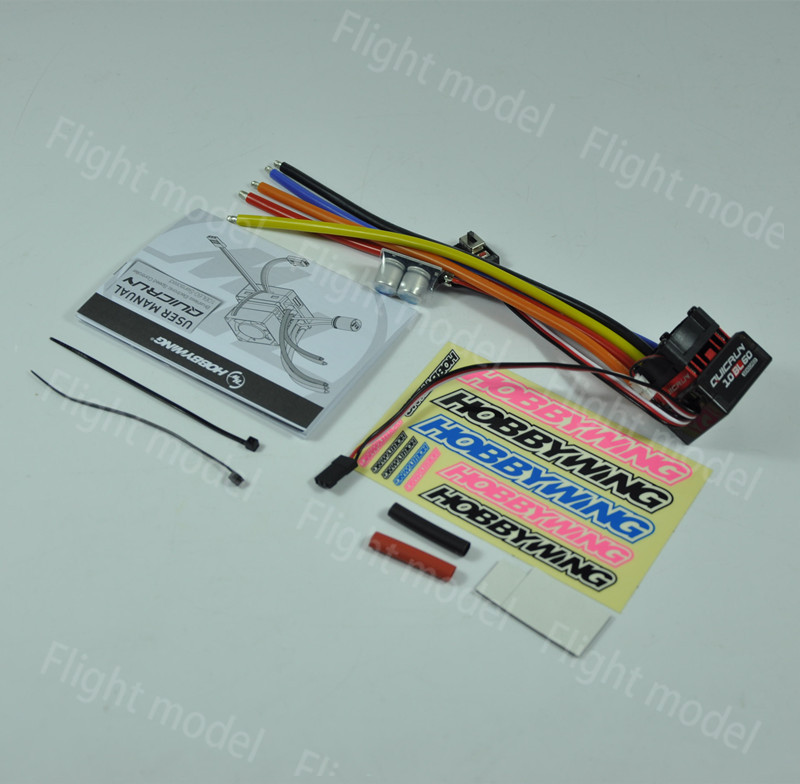

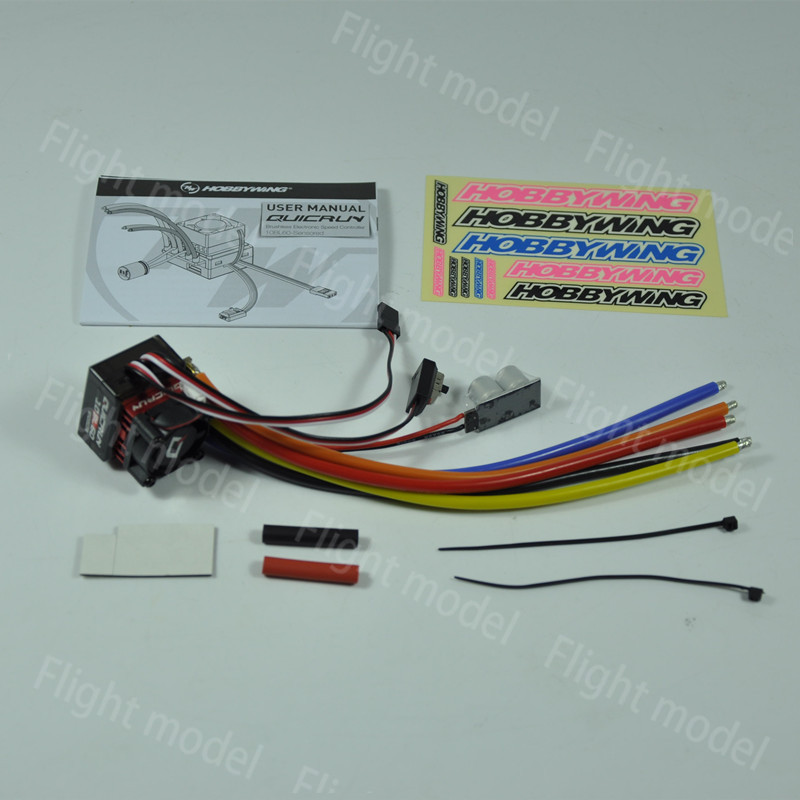

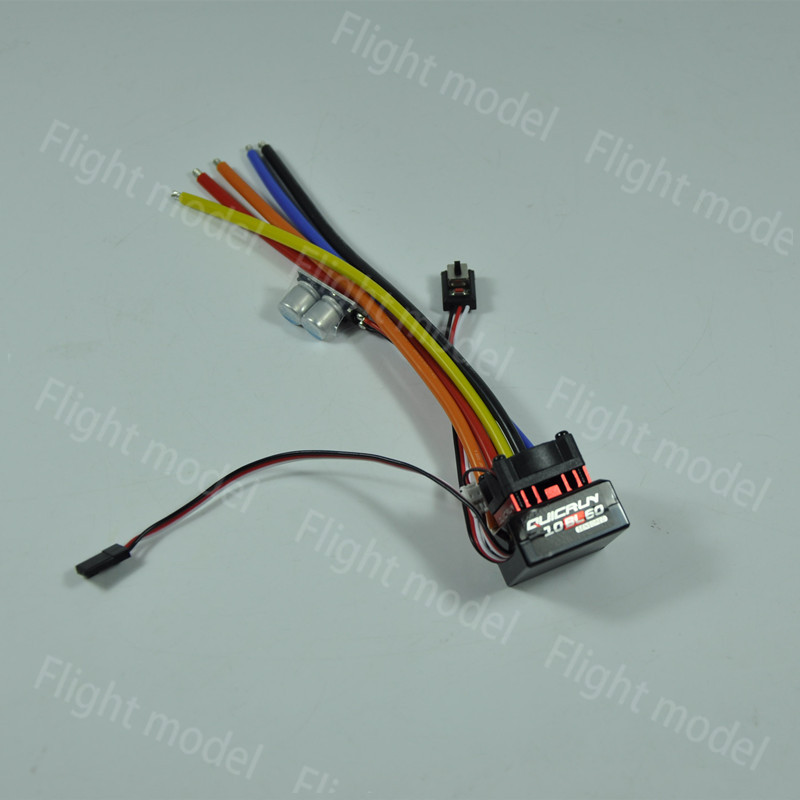

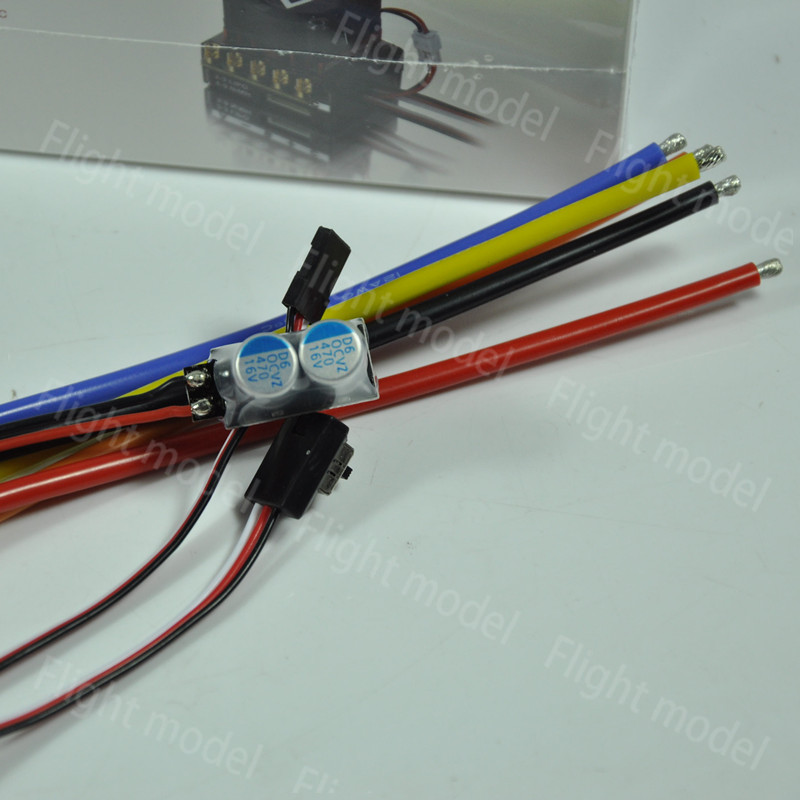

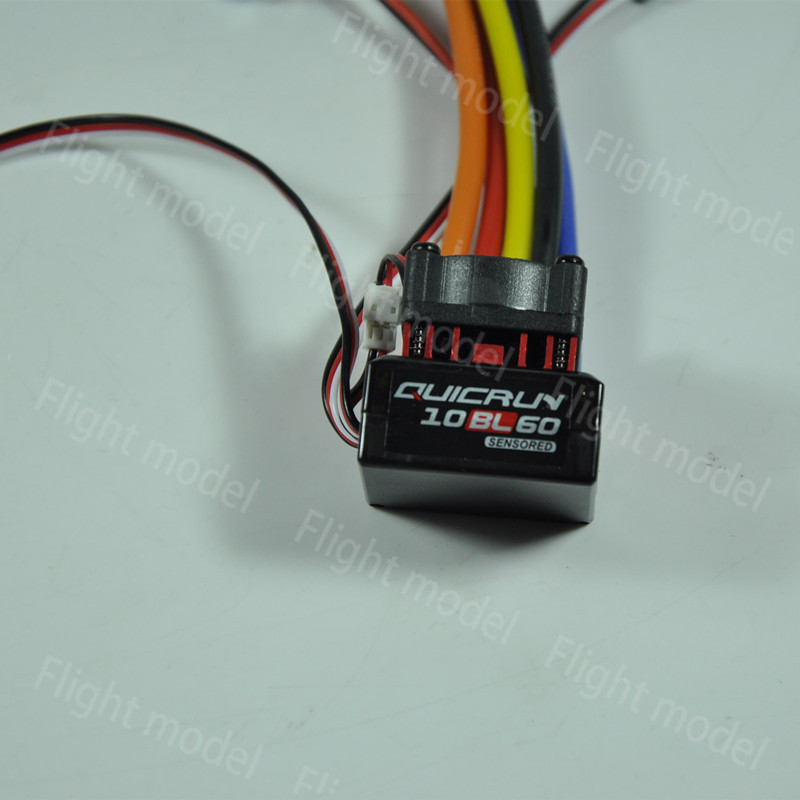

DSC_2745DSC_2746DSC_2747DSC_2748DSC_2750DSC_2763
