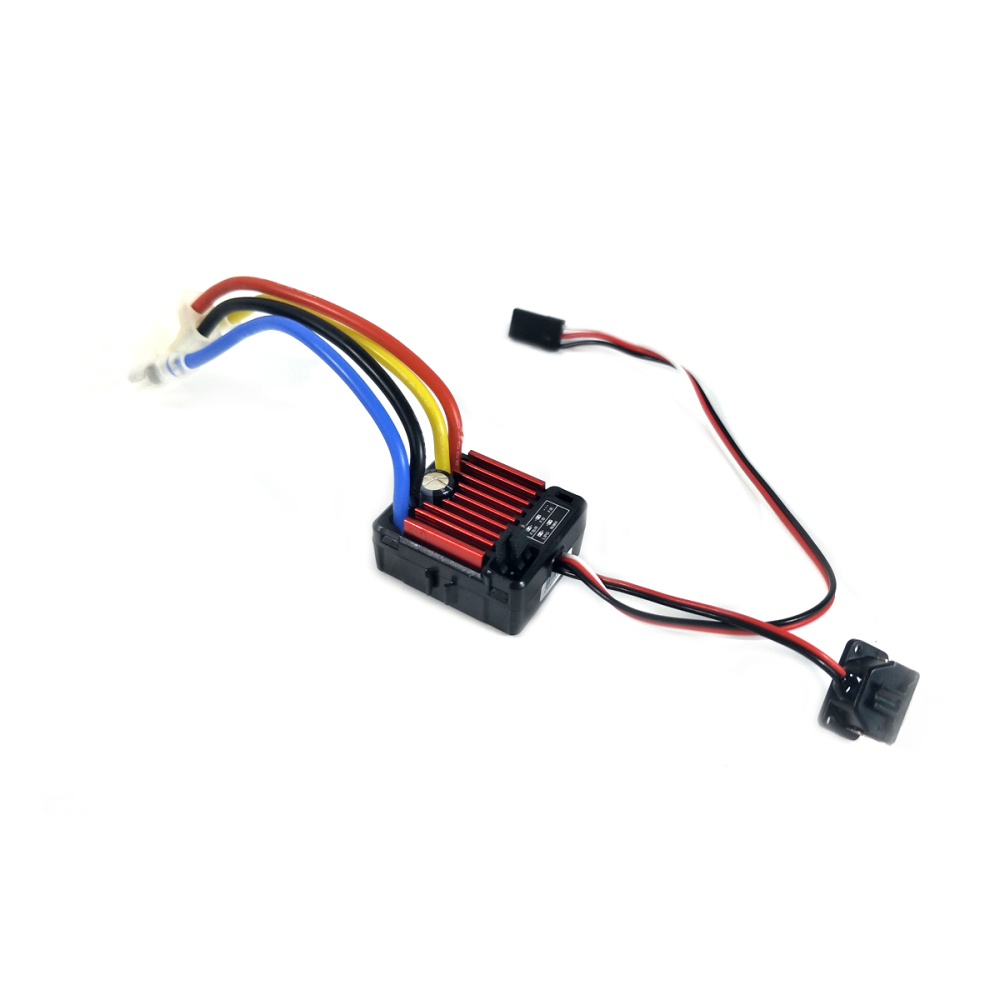

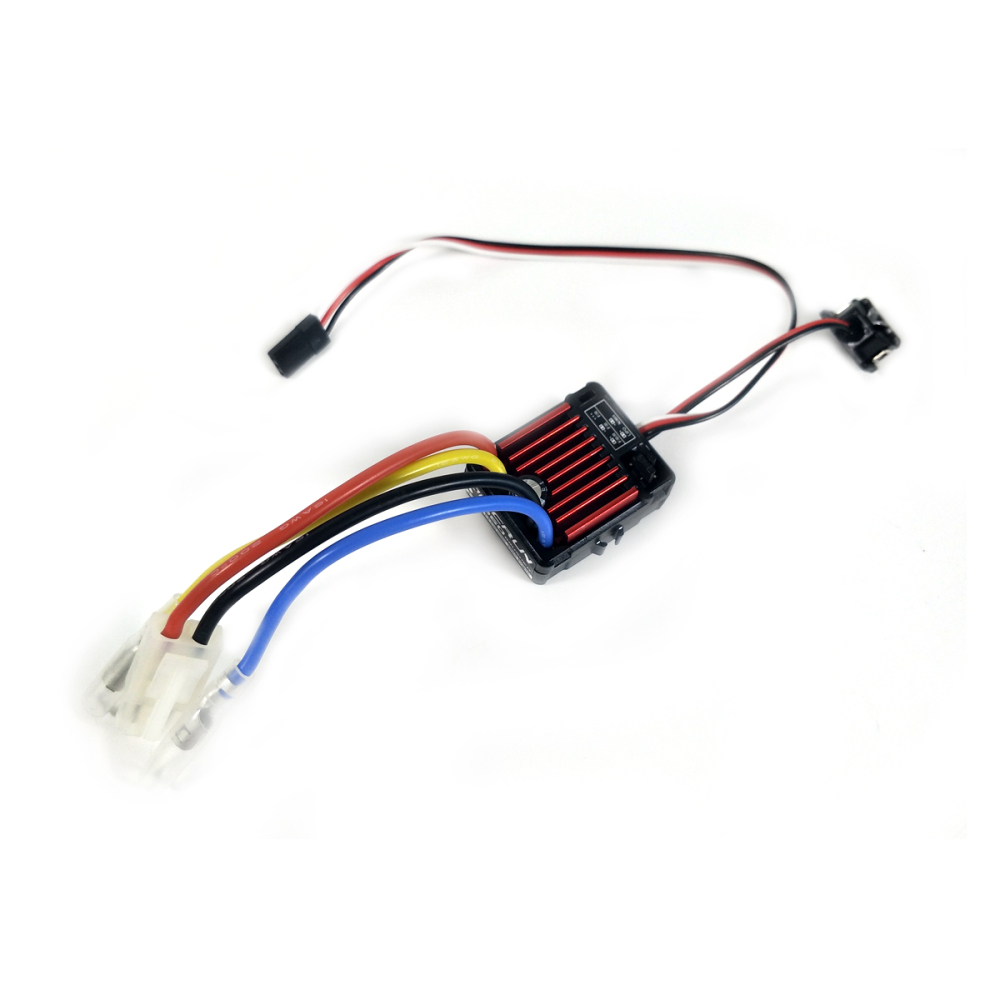

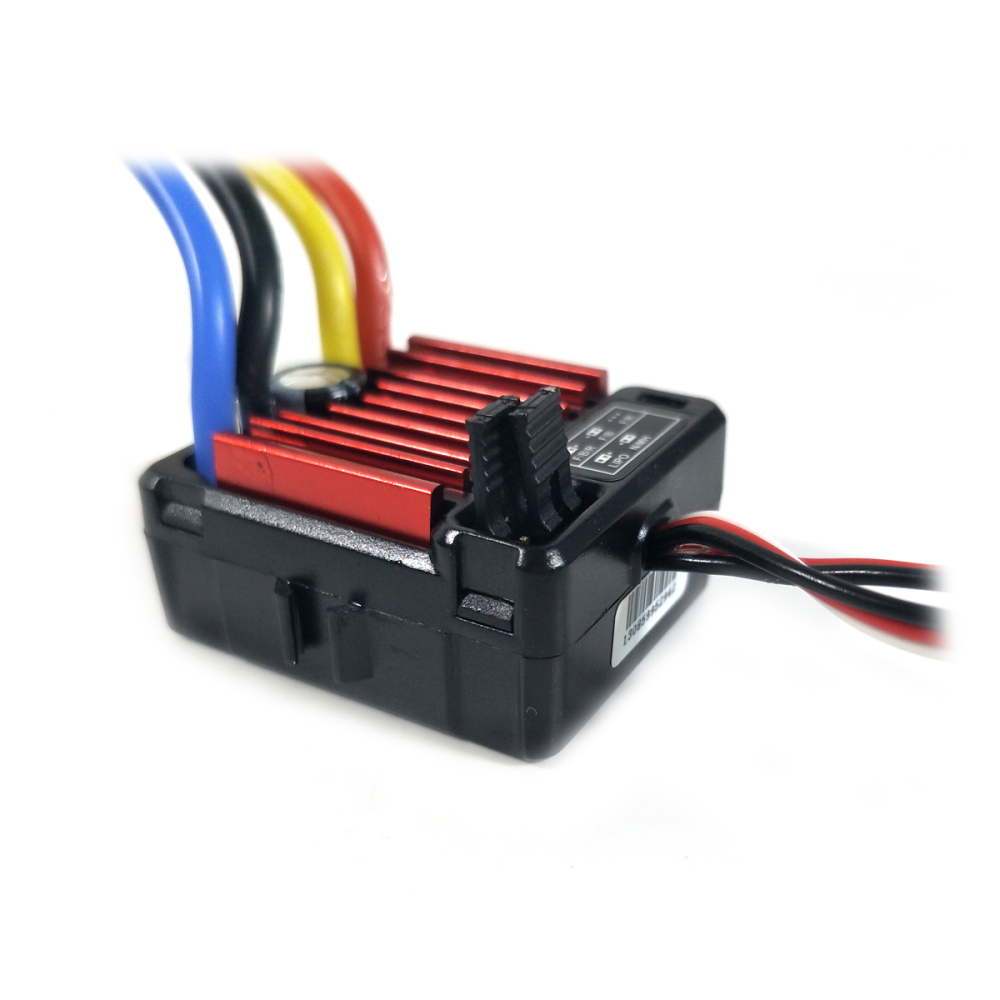

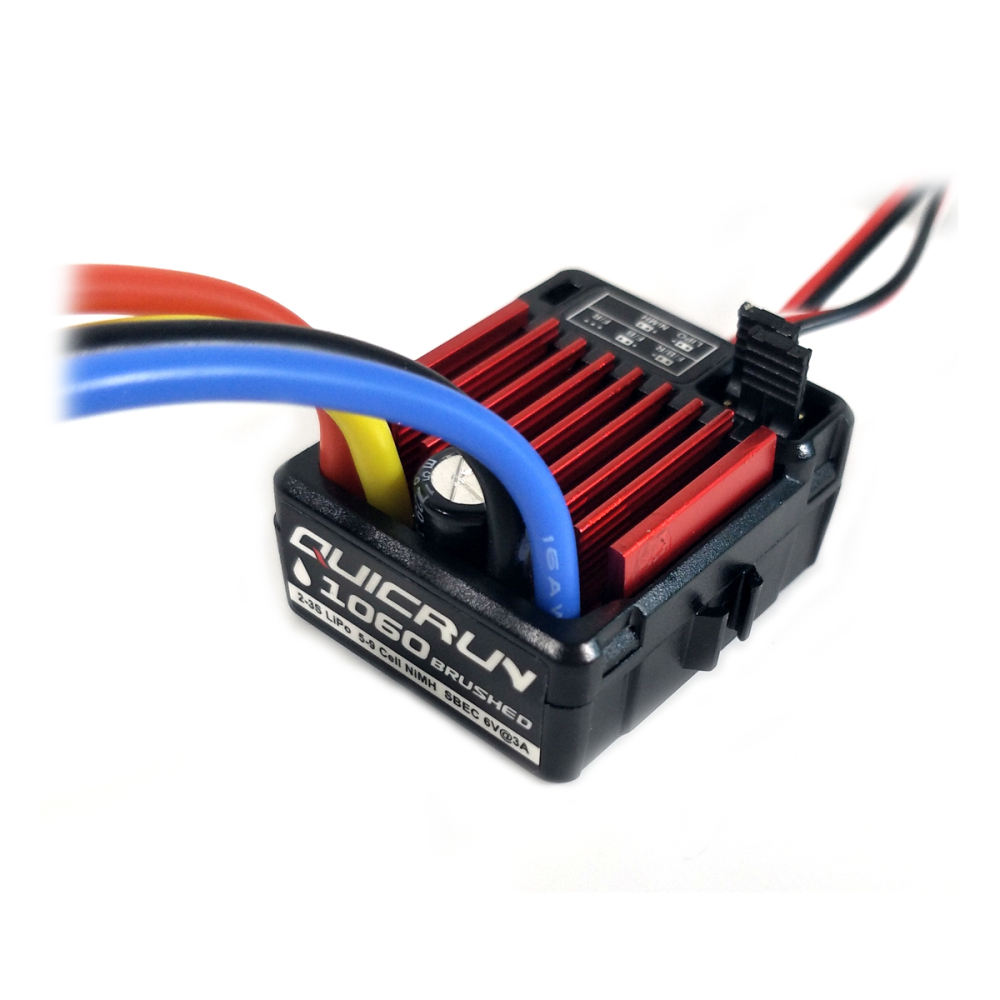

HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car

SKU: HWQR-1060B
0.0 (0 Reviews)
1 Sold
$0.00 $21.50
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car
  • HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car
  • HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car
  • HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car
  • HobbyWing QuicRun Brushed 60A Electronic Speed Controller ESC 1060 With Switch Mode BEC For 1:10 RC Car
  • Description

Specifications:

Model: 1060-BRUSHED

Fwd. Cont. / Peak Current: 60A /360A

Rev. Cont. / Peak Current: 30A /180A

Voltage Range: 2-3S Lipo or 5-9 NiMH

Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

Motor Limit:

2S Lipo or 6 NiMH

540 or 550 Size Motor: ≥12T Or RPM<30000  7.2V

3S Lipo or 9 NiMH

540 or 550 Size Motor: ≥18T Or RPM< 20000  7.2V

4S Lipo or 12 NiMH

Not Available

Resistance: Fwd 0.001Ω, Rev 0.002Ω

BEC Output: 2A/5V (Linear Mode)

PWM Frequency: 1KHz

Dimension / Weight: 36.5*32*18 / 39g

Cooling Fan: Without cooling fan

Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Net Weight: 122g

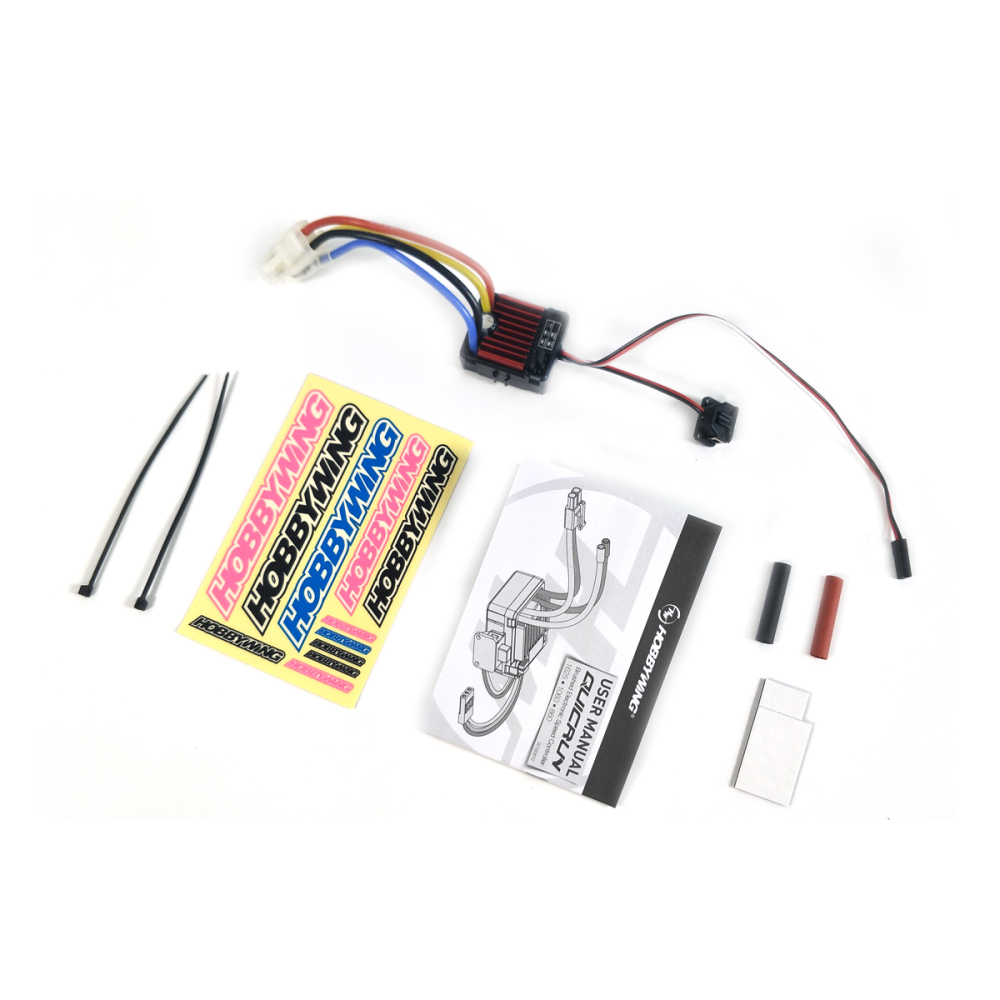

Package Contents:

1 x 100% Brand New 1060 Brushed ESC

DSC_2803DSC_2804DSC_2805





Shipping

1.Please confirm your address carefully once you make th order.We will send the products to you

at once the payment is received

2.Item is shipped from china post airmail.Reach most of countries  15-45 business days

3.Please contact us if you have not received item in 60 days ,and give us 3 days for checking the undelivered package and reason ,if it's our problem, we will refund the money to you.

4.We could not to ship African countries except South African by airmail .So if African customer want to buy these products,please contact us about shipping problem in advance.
