Multi-function Pinion Gear Puller - RC Motor Repair Tool

SKU: JA003-1

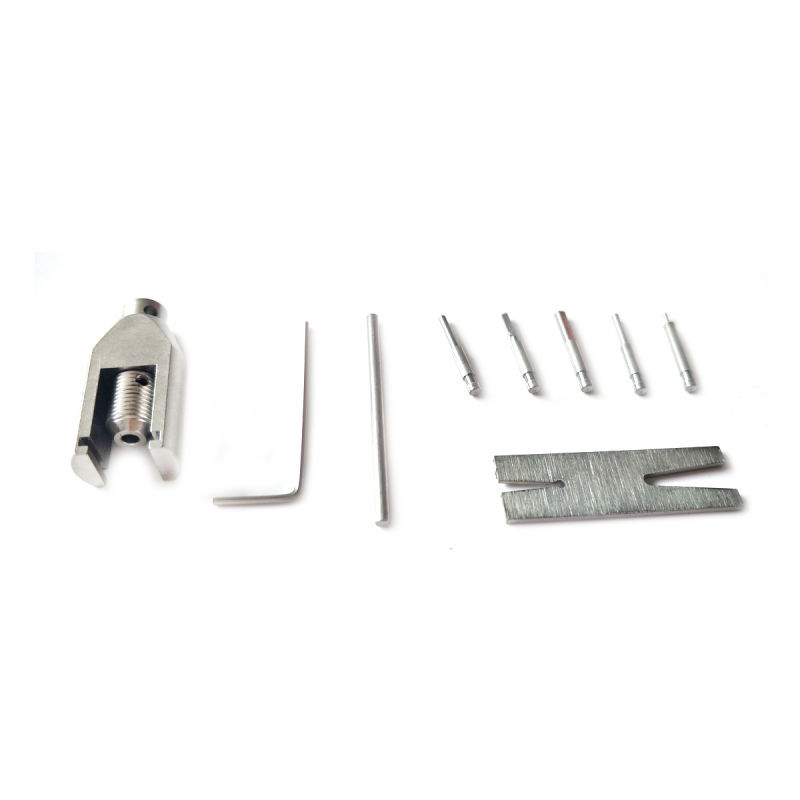

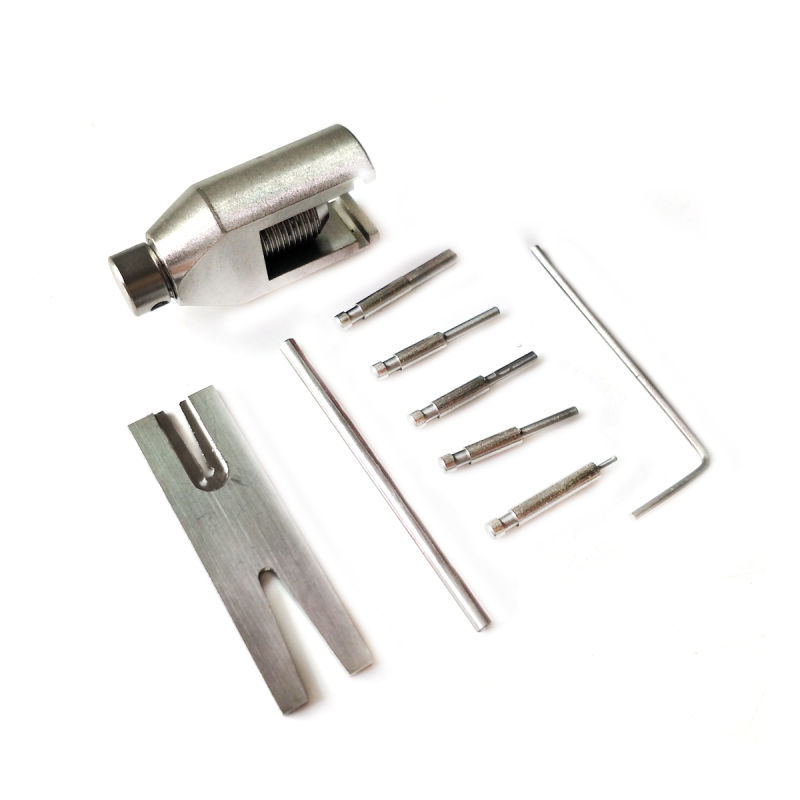

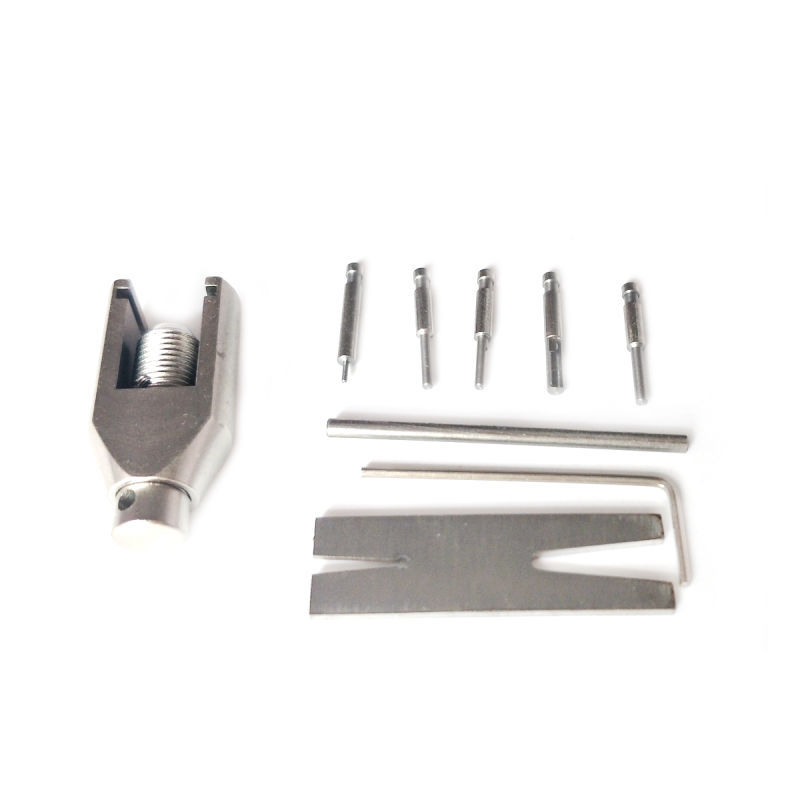

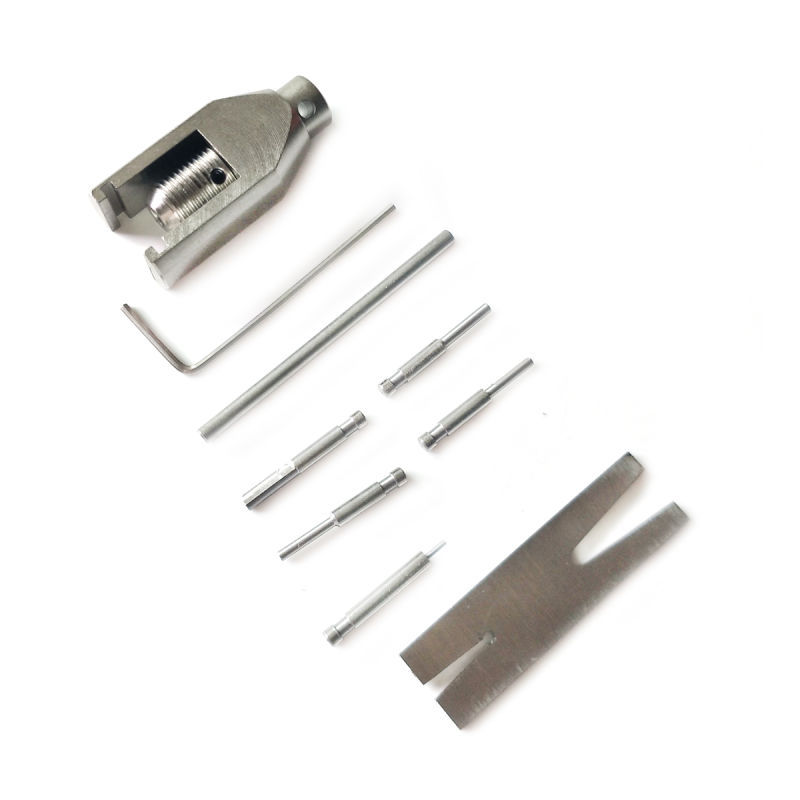

The Walker Standard Set includes 0.9mm (cylindrical), 1.75mm (semicircular), 1.75mm (cylindrical), 1.9mm (cylindrical), 2.8mm (semicircle)
0.0 (0 Reviews)
4 Sold
$0.00 $7.10
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • Multi-function Pinion Gear Puller - RC Motor Repair Tool
  • Multi-function Pinion Gear Puller - RC Motor Repair Tool
  • Multi-function Pinion Gear Puller - RC Motor Repair Tool
  • Multi-function Pinion Gear Puller - RC Motor Repair Tool
  • Multi-function Pinion Gear Puller - RC Motor Repair Tool
  • Description
The Walker Standard Set includes 0.9mm (cylindrical), 1.75mm (semicircular), 1.75mm (cylindrical), 1.9mm (cylindrical), 2.8mm (semicircle)
Plastic bag packaging: 65g

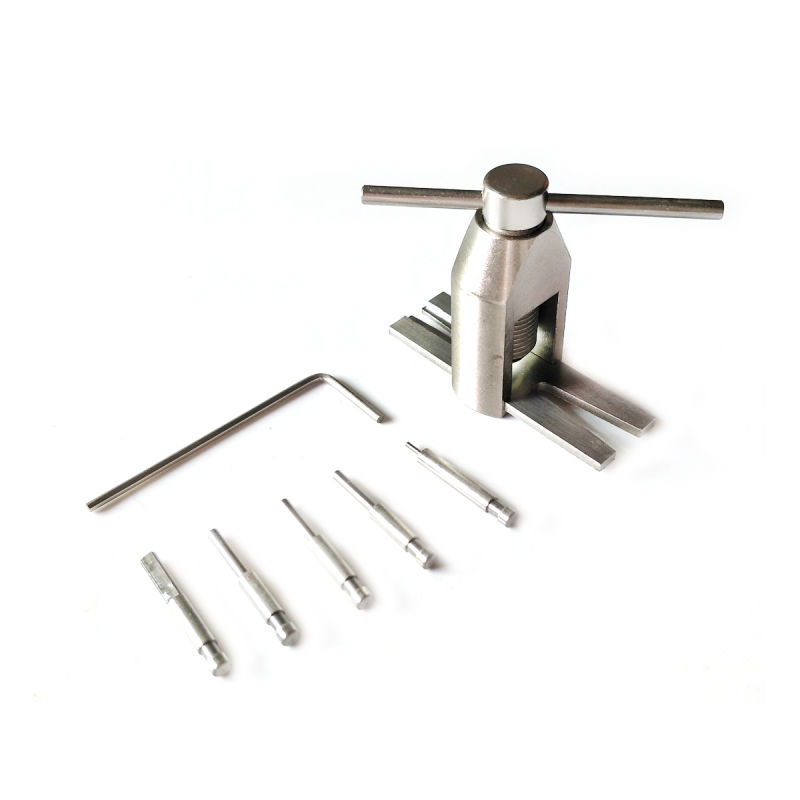

How to use the gear puller:
1) Please select the needle according to the thickness of the motor shaft diameter. Do not use a motor with a too small needle to push the tooth with a large shaft diameter. Otherwise, the needle will be broken. The glued gear must be heated to melt the glue. Tooth extraction! !!

2). Select the puller thimble you need, install the puller rotating rod, and tighten the screw (note: there is a platform thimble, the screw cannot be too tight).

3). Install the puller rotation lever into the puller bracket.

4). Install the puller movable plate.

5). Snap the motor into the movable plate of the puller and move it until the motor shaft is aligned with the pull pin of the puller.

6). Rotate the gear puller lever clockwise in a uniform speed to pull out the gear of the motor.

7) Gears with a maximum outside diameter of 11mm and a tooth height of 12mm can be pulled.
