Specification

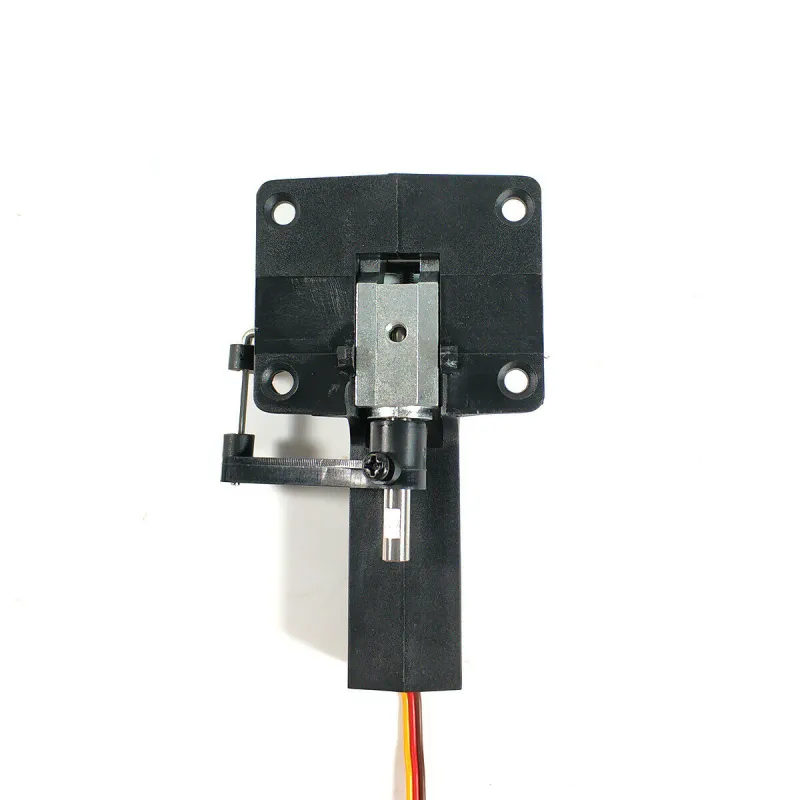

No. PZ-15096SN Nose Retract
- GearSize: 93*51*30.8mm(L*W*H)
- Weight: 94g
- Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
- Torque: [email protected]: [email protected]: [email protected]
- Operating Voltage: 4.8V-7.4V
- Landing Struct Diameter: Φ 5mm
- Support Flight Weight: 8kg
- Wire Length: 420mm
- Wire Color: Brown, Red, Orange
- Plug Type: JR Plug
No. PZ-15096SM Main Retract
- Size: 93*51*30.8(L*W*H)
- Weight: 94g
- Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
- Torque: [email protected]: [email protected]: [email protected]
- Operating Voltage: 4.8V-7.4V
- Landing Struct Diameter: Φ 5mm
- Support Flight Weight: 8kg
- Wire Length: 420mm
- Wire Color: Brown, Red, Orange
- Plug Type: JR Plug
No. PZ-15096 Retract without Struct
Giant Landing Gears with Metal Block
Size(L*W*H):92.2*51*36mm
Weight: 88.8g/3.1oz
Speed: 6s/90°at 4.8v; 5s/90° at 6v; 4s/90° at 7.4v
Torque: 15.5kg-cm at 4.8v ; 18.6kg-cm at 6v; 20.6kg-cm at 7.4V
215oz-in at 4.8v ; 258oz-in at 6v; 286oz-in at 6v
Support Struct Diameter: 5mm
Support Flight Weight 8kg
Operating Voltage: 4.8v-7.4v
Wire Length: 300mm
Plug Type: JR Plug
Excellent for 120 class RC planes!

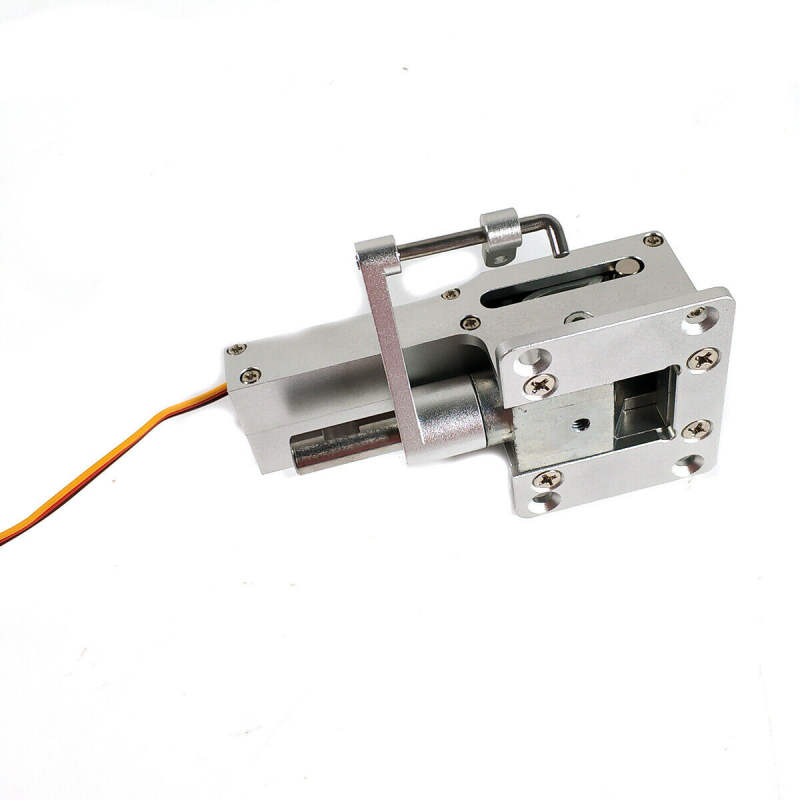

No. PZ-15096B Full Metal Main Retract
- Size: 93*51*35(L*W*H)
- Weight: 173G
- Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
- Torque: [email protected]: [email protected]: [email protected]
- Operating Voltage: 4.8V-7.4V
- Landing Struct Diameter: Φ10mm
- Support Flight Weight: 10kg-12kg
- Wire Length: 420mm
- Wire Color: Brown, Red, Orange
- Plug Type: JR Plug
No. PZ-15096D Full Metal Nose Retract
- Size: 93*51*30.6(L*W*H)
- Weight: 188G
- Speed: 6S/90°@4.8V; 5S/90°@6.0V, 4S/90°@7.4V
- Torque: [email protected]: [email protected]: [email protected]
- Operating Voltage: 4.8V-7.4V
- Support Flight Weight: about 10kg-12kg
- Landing Struct Diameter: Φ 8mm
- Wire Length: 420mm
- Wire Color: Brown, Red, Orange
- Plug Type: JR Plug

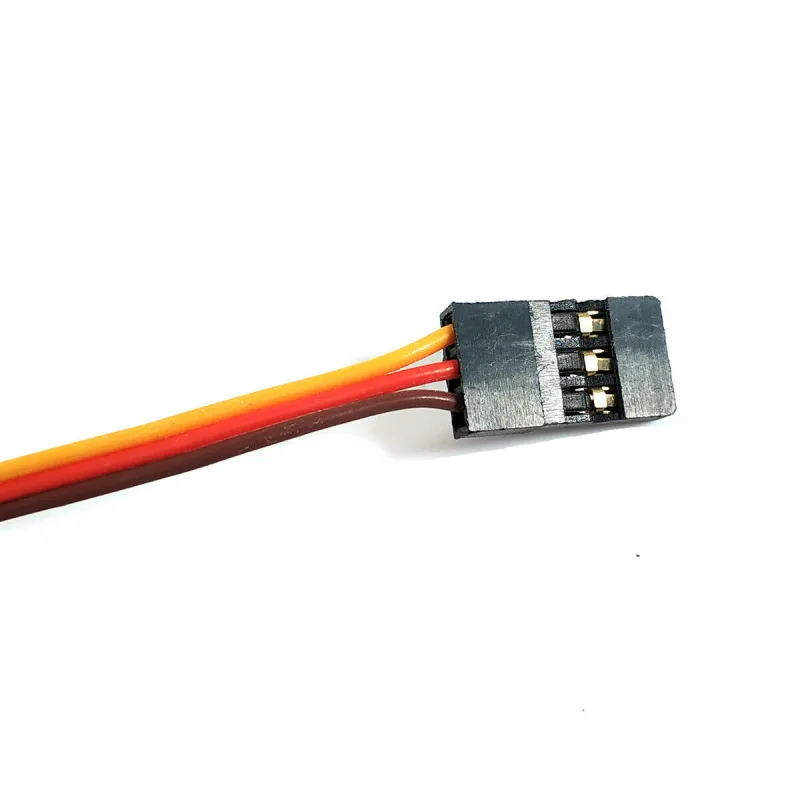

The Plug:
JR Golden Plated Plug
we also offer 3.5kg Plane Retracts
