Product Name：
RC Airplane Propeller clamp Hobbywing X6-X11 Special stop blade clamp a pair
Blade clamp parameters：

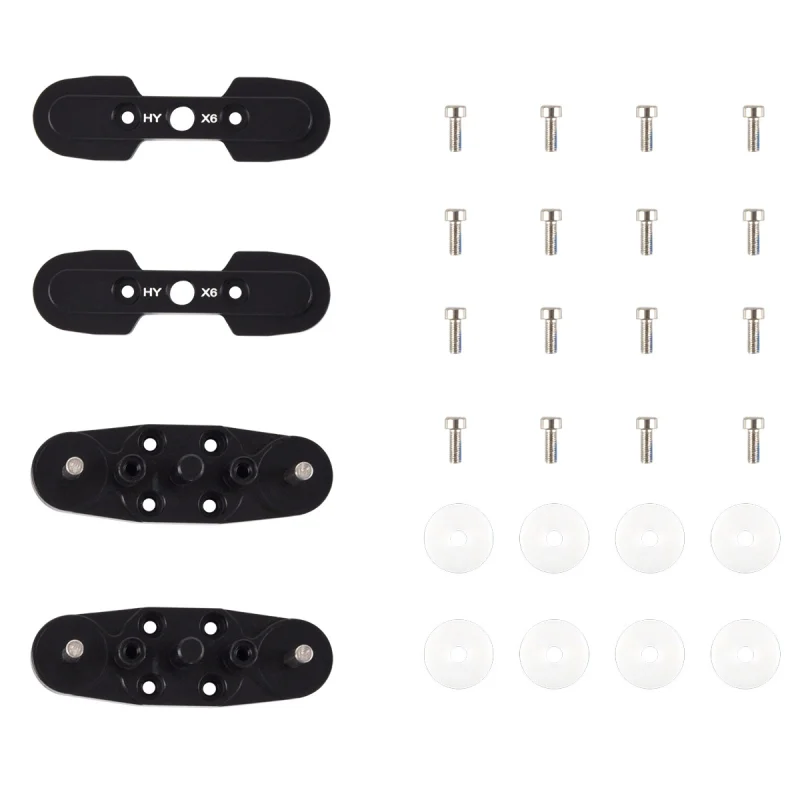

X6:
Hole spacing: 20MM hole spacing, 8MM middle hole spacing
3MM installation hole spacing, installation screw size: 3 * 10
Diameter of steel column for locking blade: 4mm
inner diameter of gasket: 4mm
outer diameter of gasket: 16mm
thickness of gasket: 0.6mm
Distance between locking slurry holes: 51MM

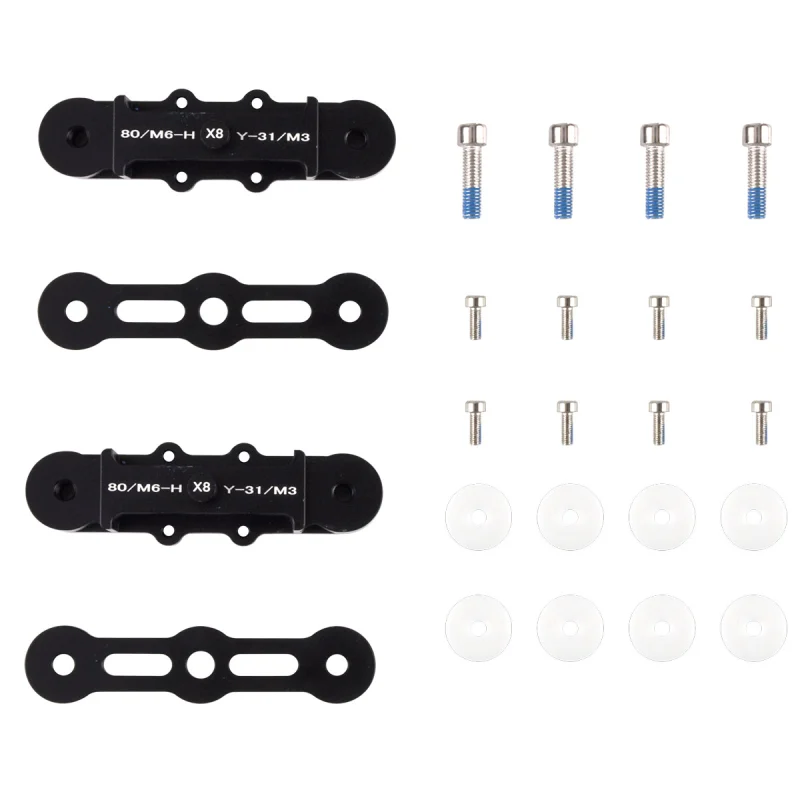

X8:
Hole pitch: 31MM hole pitch, 6MM middle hole, 3MM side hole
Installation screw size: 3 * 10
Lock screw: 6 * 22
Lock screw diameter: 6MM
Inner diameter of washer: 6MM
Outer diameter of washer: 15.7MM
Thickness of washer: 0.7MM Aperture distance: 70MM

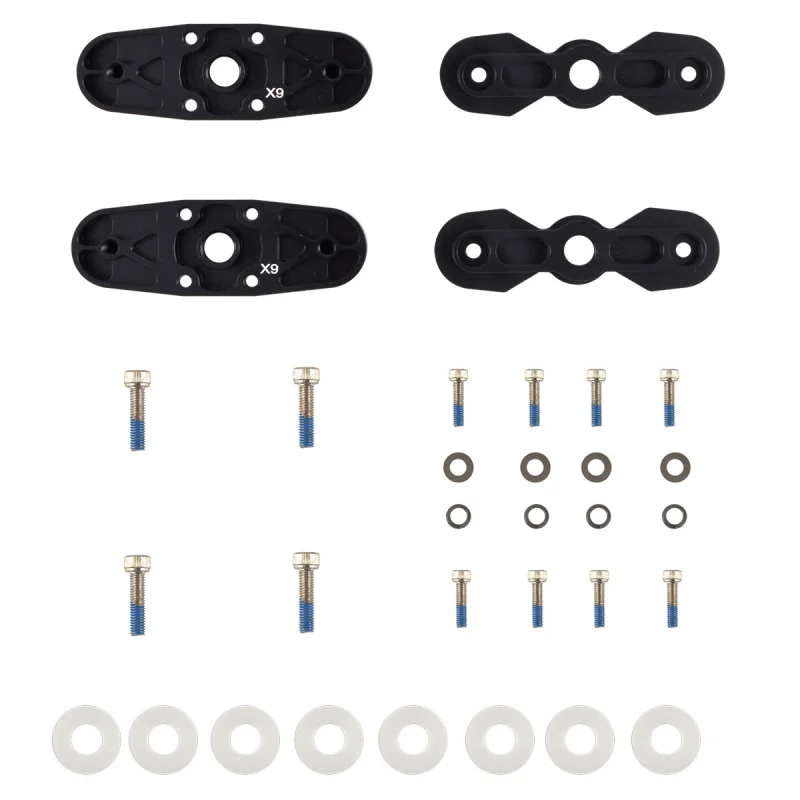

X9:
Hole pitch: 32MM hole pitch, 10mm middle hole, 4mm side hole
Installation screw size: 4 * 16
Lock screw: 5 * 20, column diameter: 10mm
Inner diameter of gasket: 101MM
Outer diameter of gasket: 21MM
Thickness of gasket: 0.6MM
Aperture distance: 70MM

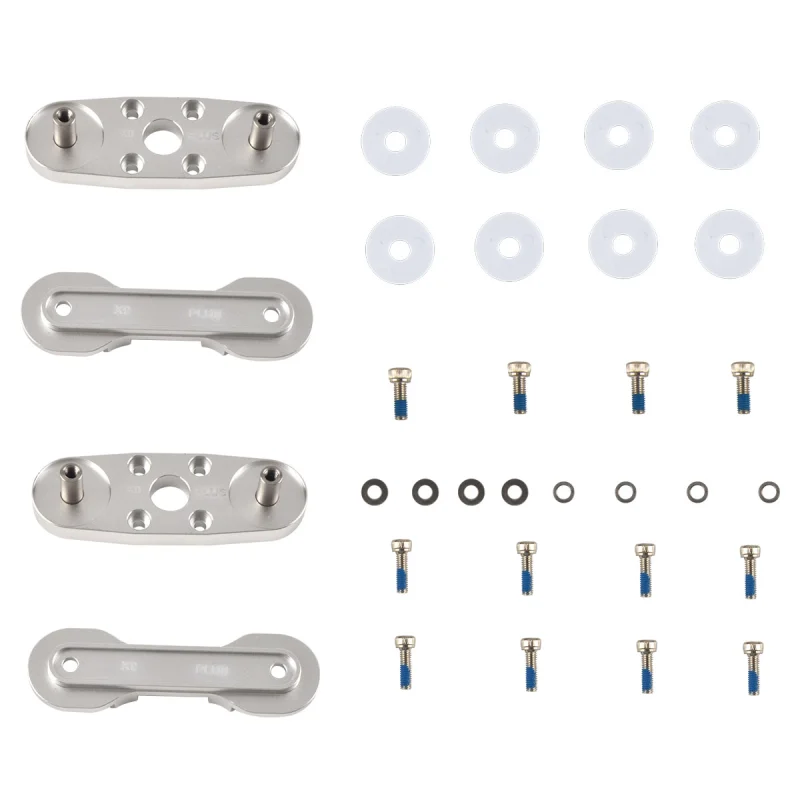

X9 plus:
Hole spacing: 31MM, middle hole 14MM, side hole 4MM, installation screw size: 4 * 16
locking screw: 4 * 14, steel column diameter: 8MM
gasket inner diameter: 8MM
gasket outer diameter: 27MM
hot plate thickness: 2MM
aperture distance: 70MM
X11:
Hole spacing: 31mm, middle hole 14mm, side hole 4mm, installation screw size: 4 * 16
Screw for locking the propeller: 6 * 16
Lock award steel column diameter: 10mm
gasket inner diameter: 10mm
gasket outer diameter: 32mm
gasket thickness: 2mm
aperture distance: 80mm
purpose: suitable for "Good fit X11"
Product Application Scenario：
Suitable for RC Airplane Propeller
