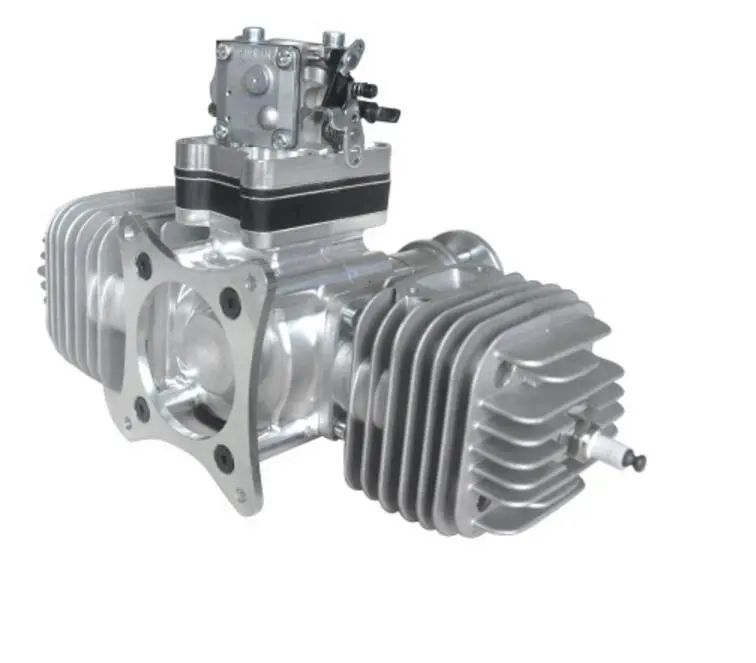

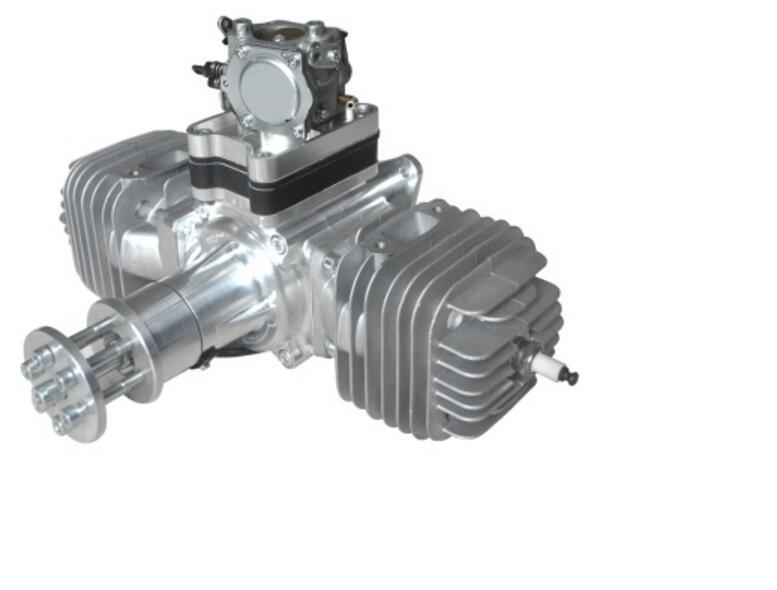

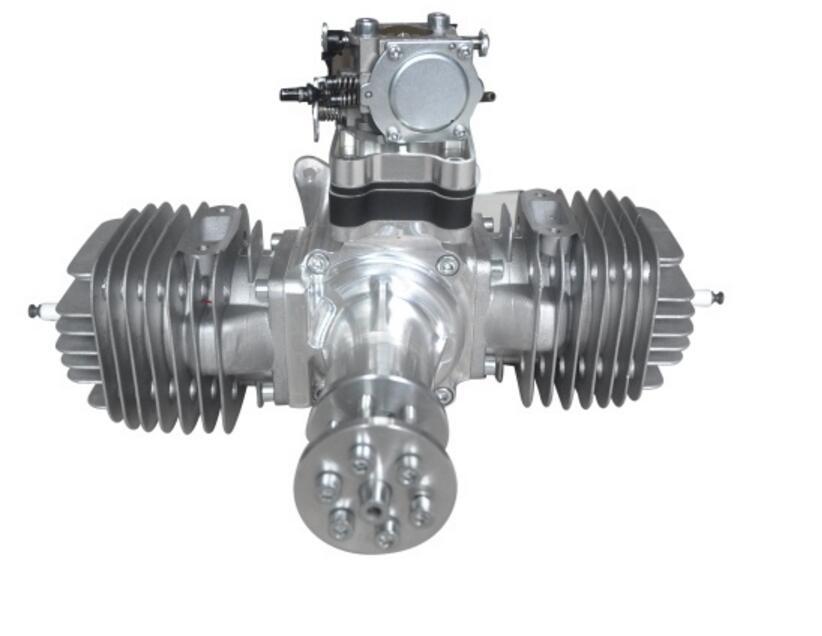

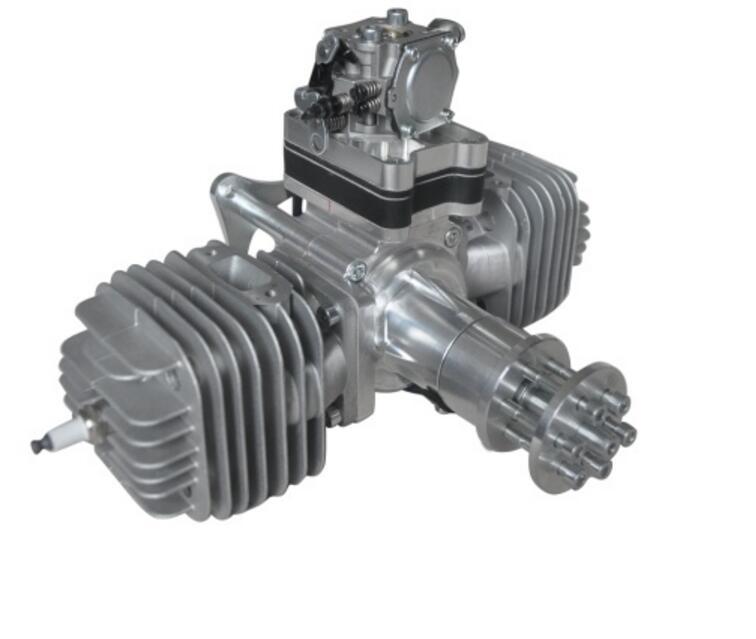

RCGF 120cc Twin Cylinder Gasoline Engine
High power
Stronger power ,low vibration, smooth operation will it your best choice for big gasoline engine. Walbro carburetor matched the engine make it more reliable , CNC made crankcase make it shining and stronger.
Parameter:
- Type : 2 cycle piston valve type gasoline engine for airplane
- Piston displacement Cylinder (cc) : 120cc (7.32 cu.in)
- Bore x Stroke (mm): 1.85 in(47mm) x 1.38 in (35mm)
- Carburetor : Walbro
- Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
- Power supply: 4.8-8.4V
- Maximum Output :12.5HP/7600rpm
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-7600rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
- (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
- Lubrication Oil : 2 cycle engine oil
- Propeller : 27X10 6580rpm (Standard Two leafs prop)
- Suggested Propellers: 26X10;26X12;27X10;28X10;
- Suggested Break-in Prop: 26X10
- Sparking plug: NGK CM6 Type
- Cooling System : Air Cooled

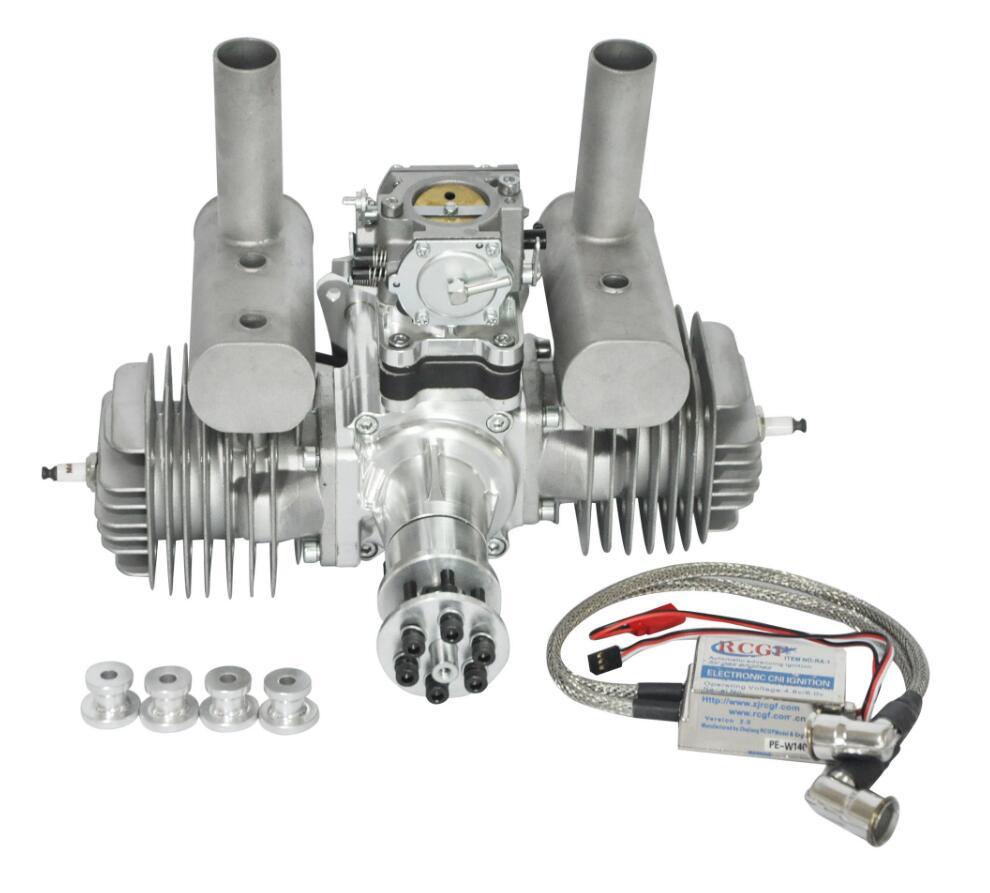

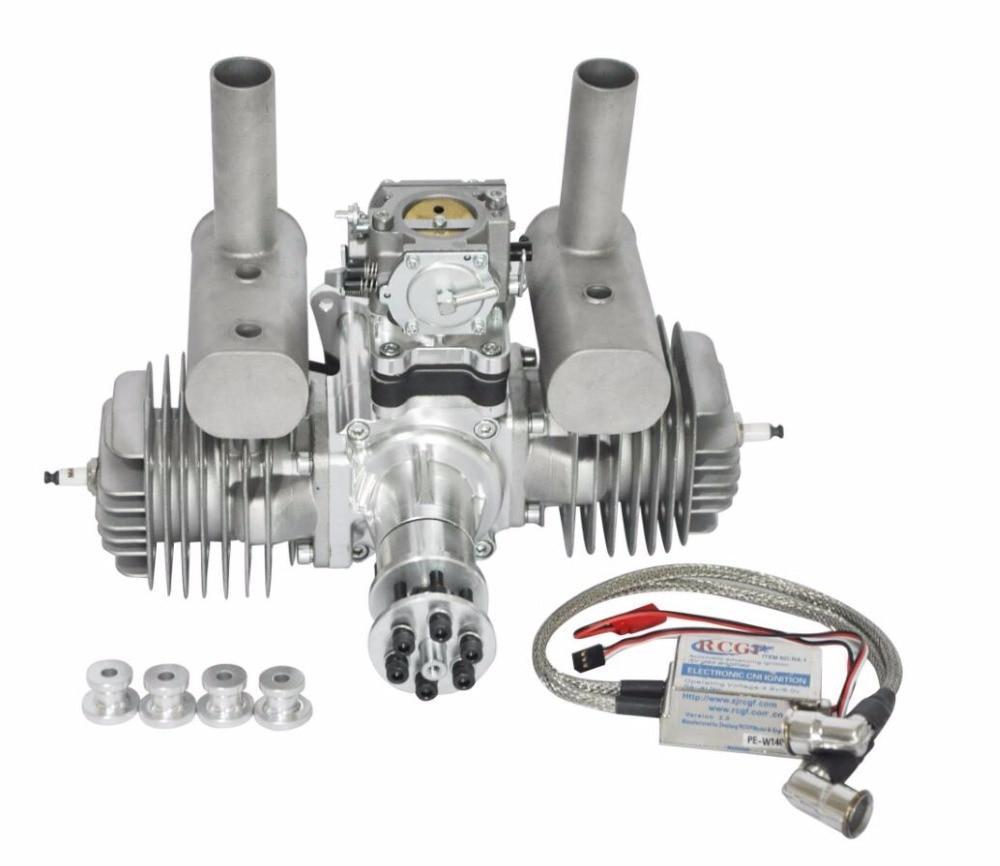

RCGF engine package Includes:
electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight :
- Engine: 5.69 lb (2580 g)
- Muffler: 7.05 oz (200 g)
- Ignition Module: 5.11 oz (145 g)
- Total: Weight: 6.45 lb (2925 g)
Technical Data:
- Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: NGK CM6 or equivalent
- dle Speed: 1600 rpm/min
- Static Thrust:
- 59.7 lb (27 kg) @ 328 ft (100 m) altitude
- 56.1lb (25.4kg) @ 5,900 ft (1800 m) altitude
