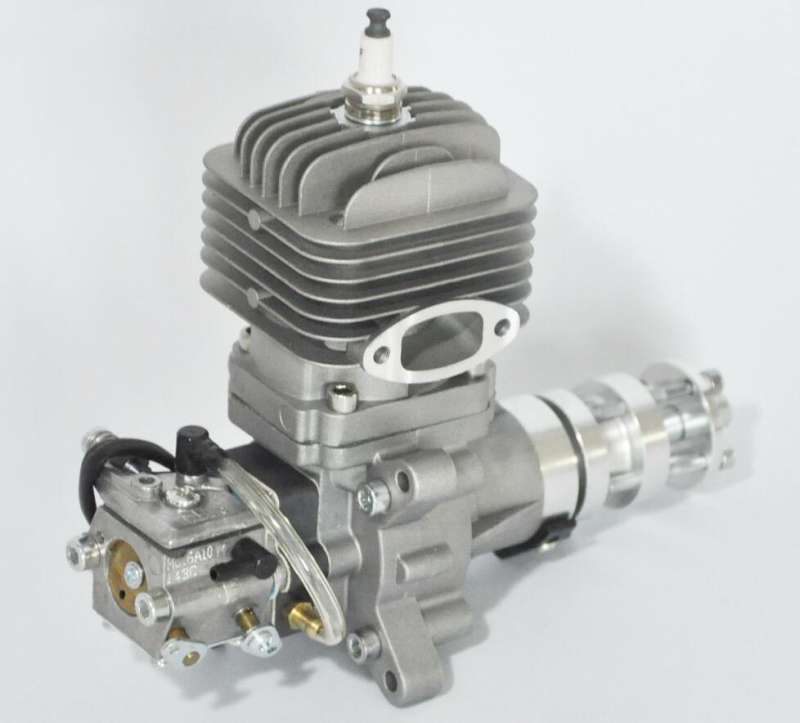

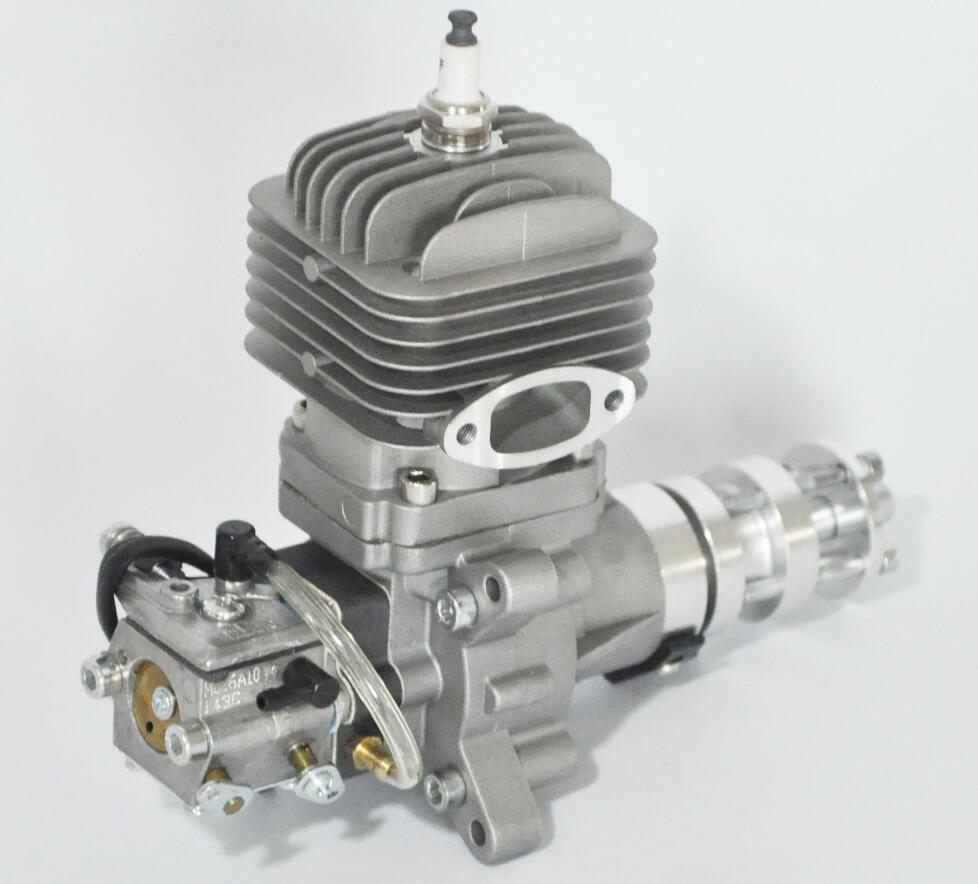

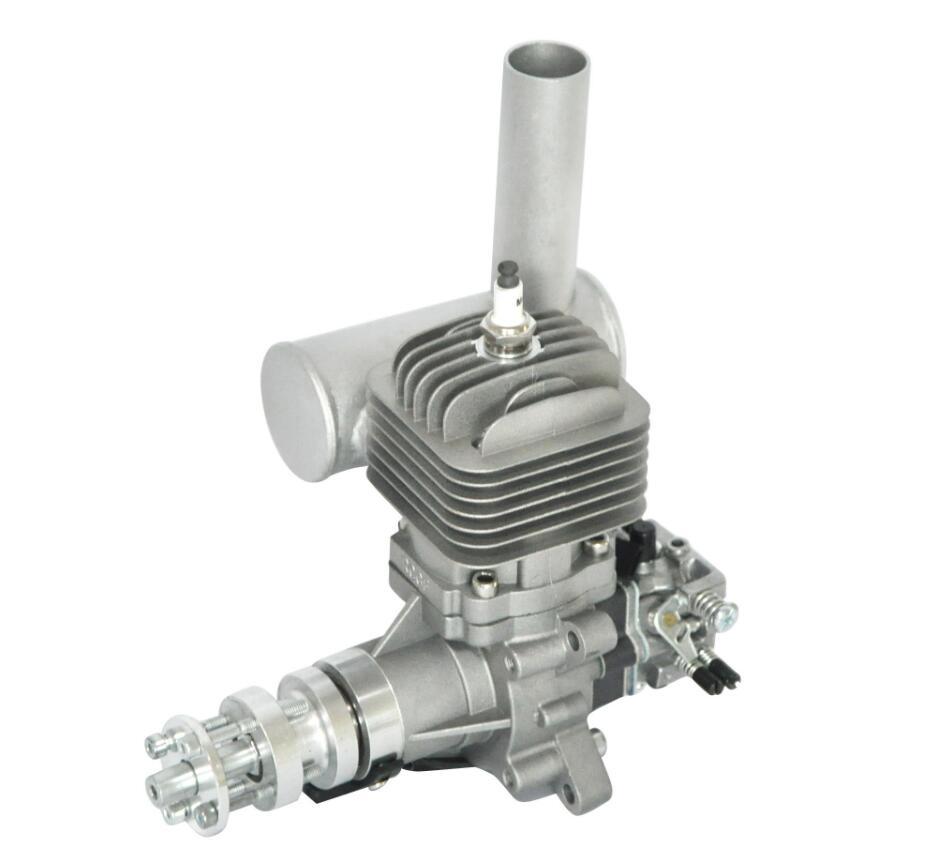

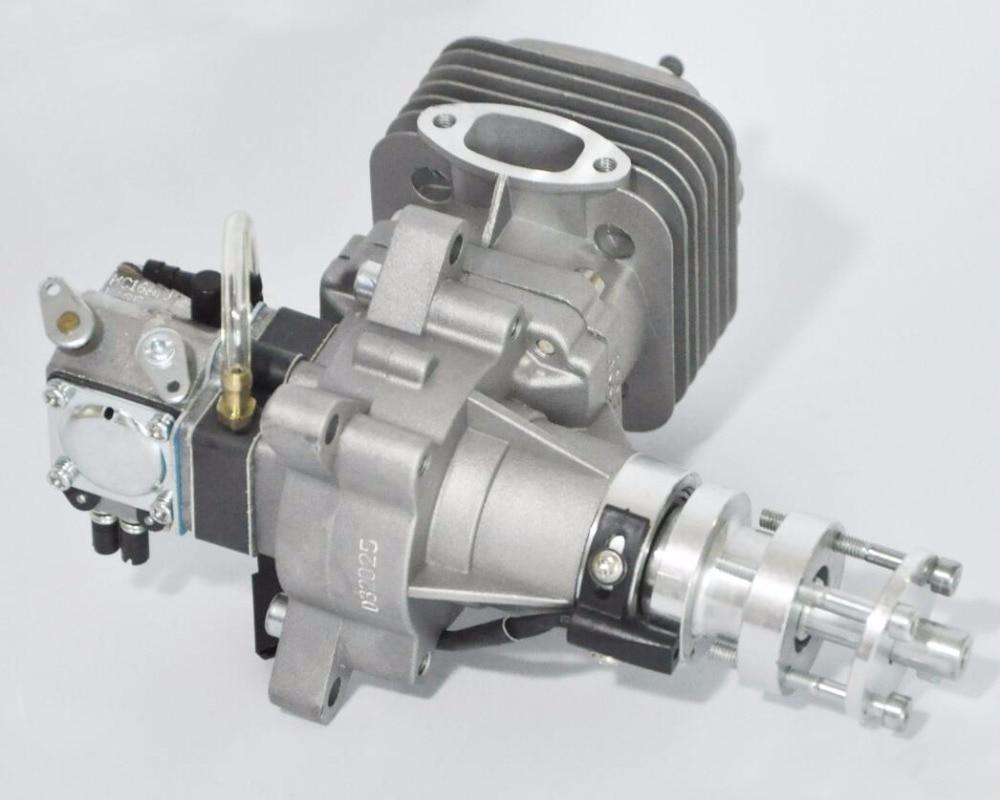

RCGF 32CC Gasoline Engine
Convenience and power for quarter scale!
With the RCGF 32cc, you get the economy of a gasoline engine in the size of a glow engine. Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.
Parameter:
- Type : 2 cycle piston valve type gasoline engine for airplane
- Piston displacement Cylinder (cc) : 32cc (1.95 cu in)
- Bore x Stroke (mm): 1.5 in(38mm) x 1.2 in (30mm)
- Carburetor: Walbro
- Ignition: DC-CDI (Computer Controlled auto advance, electronic ignition system)
- Power supply: 4.8-8.4V
- Maximum Output :3.9HP /2.9KW
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed range : 1500-9000rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
- (90% high octane unleaded gasoline, Import gas into carbon fiber installations valves)
- Lubrication Oil : 2 cycle engine oil
- Propeller : 19X8 7700rpm (Standard Two leafs prop)
- Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
- Suggested Break-in Prop: 18x8
- Sparking plug: NGK CM6 Type (Cap size 0.018 in.—0.020in.<0.45mm—0.51mm>)
- Cooling System : Air Cooled

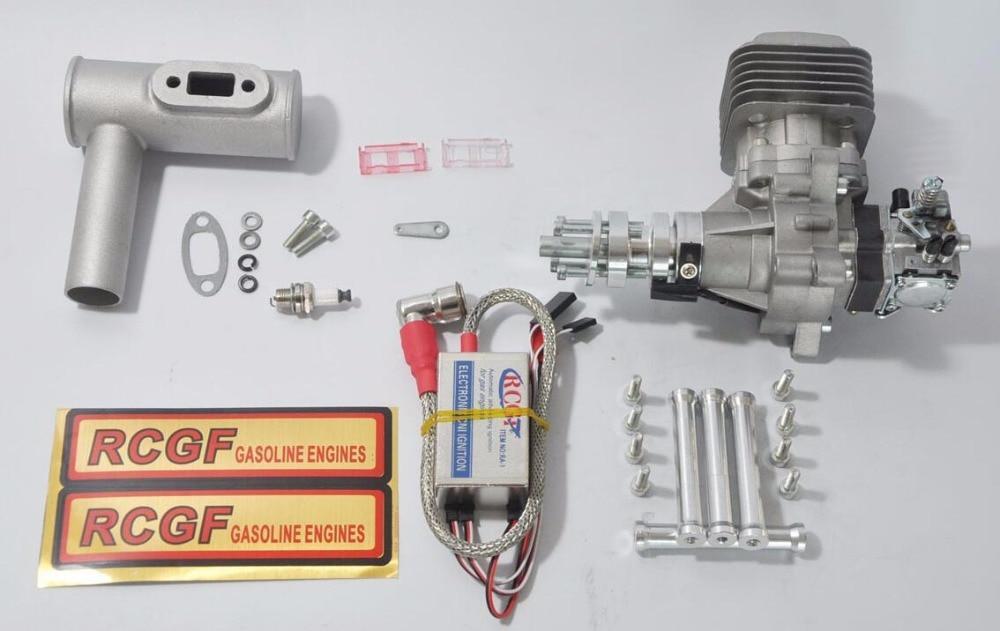

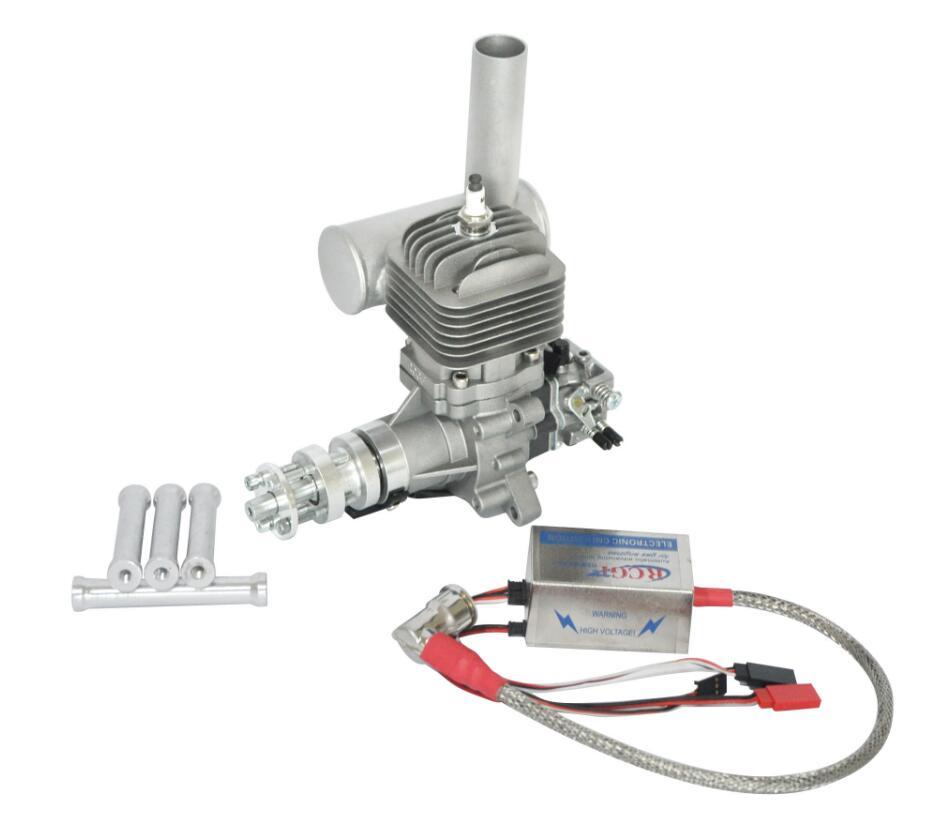

RCGF engine package Includes:
electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight :
- Engine: 2.05 lb (930 g)
- Muffler: 3.4 oz (97 g)
- Ignition Module: 4.4 oz (125 g)
- Total: Weight: 2.55 lb (1158 g)
Technical Data:
- Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: NGK CM6 or equivalent
- Idle Speed: 1800 rpm/min
- Static Thrust:
- 19.9 lb (9 kg) @ 328 ft (100 m) altitude
- 19.0 lb (8.6kg) @ 5,900 ft (1800 m) altitude
