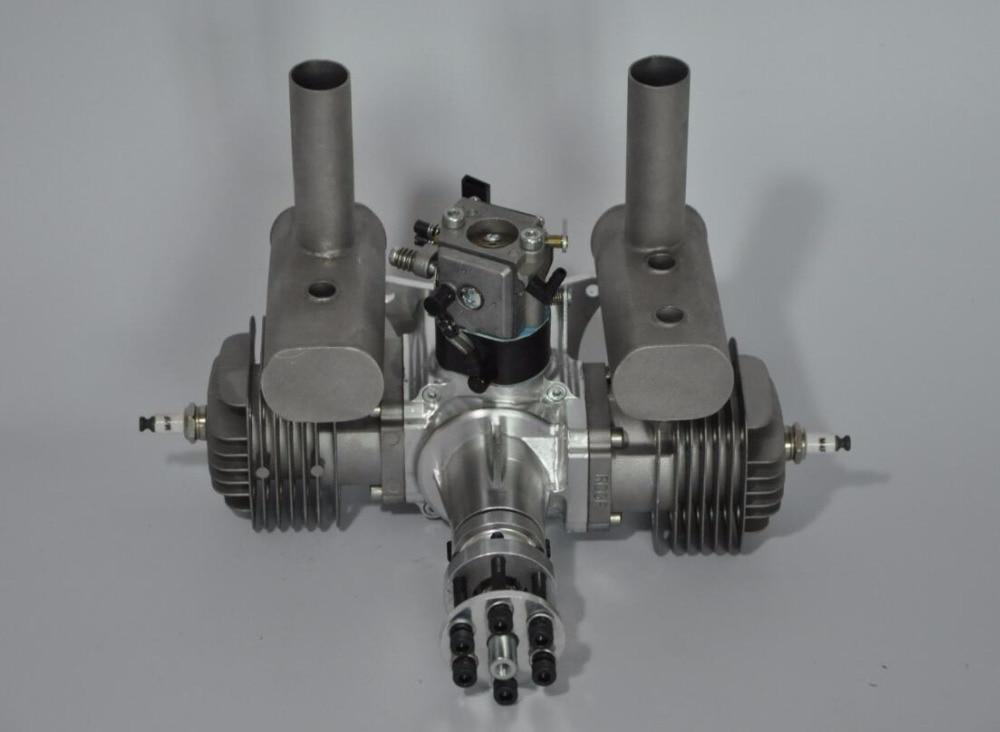

60cc Twin cylinder gasoline engine
Smooth operator.
Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin! The RCGF 60cc twin gasoline engine also offers strong horsepower and an excellent power-to-weight ratio, CNC made crankcase make it shining and stronger.
Parameter:
- Type : 2 cycle piston valve type gasoline engine for airplane
- Piston displacement Cylinder (cc) : 60cc(3.66 cu.in)
- Bore x Stroke (mm): 1.50 in(38mm) x 1.10 in (28mm)
- Carburetor : Walbro
- Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
- Power supply: 4.8-8.4V
- Maximum Output :6.3HP/8600rpm
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-8600rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
- (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
- Lubrication Oil : 2 cycle engine oil
- Propeller : 24X8 6700rpm (Standard Two leafs prop)
- Suggested Propellers: 22X10, 23X8, 23X10, 24X8
- Suggested Break-in Prop: 22X10
- Sparking plug: NGK CM6 Type
- Cooling System : Air Cooled

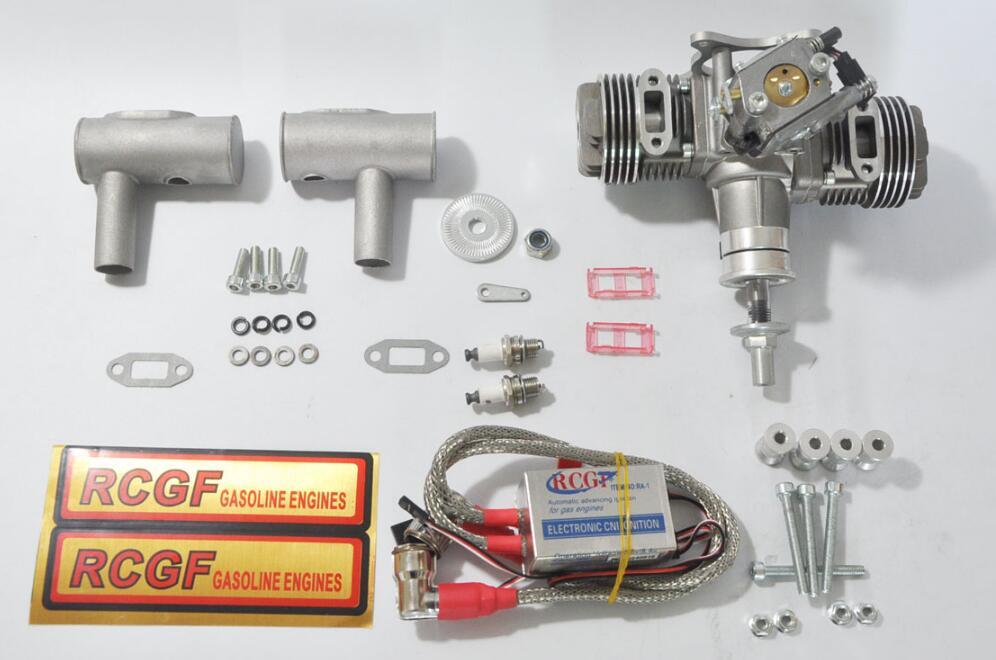

RCGF engine package Includes:
electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight :
- Engine: 3.26 lb (1480 g)
- 2XMuffler: 5.36 oz (152 g)
- Ignition Module: 5.11 oz (145 g)
- Total: Weight: 3.91 lb (1777 g)
Technical Data:
- Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: NGK CM6 or equivalent
- dle Speed: 1600 rpm/min
- Static Thrust:
- 34.2 lb (15.5 kg) @ 328 ft (100 m) altitude
- 30.9 lb (14kg) @ 5,900 ft (1800 m) altitude
