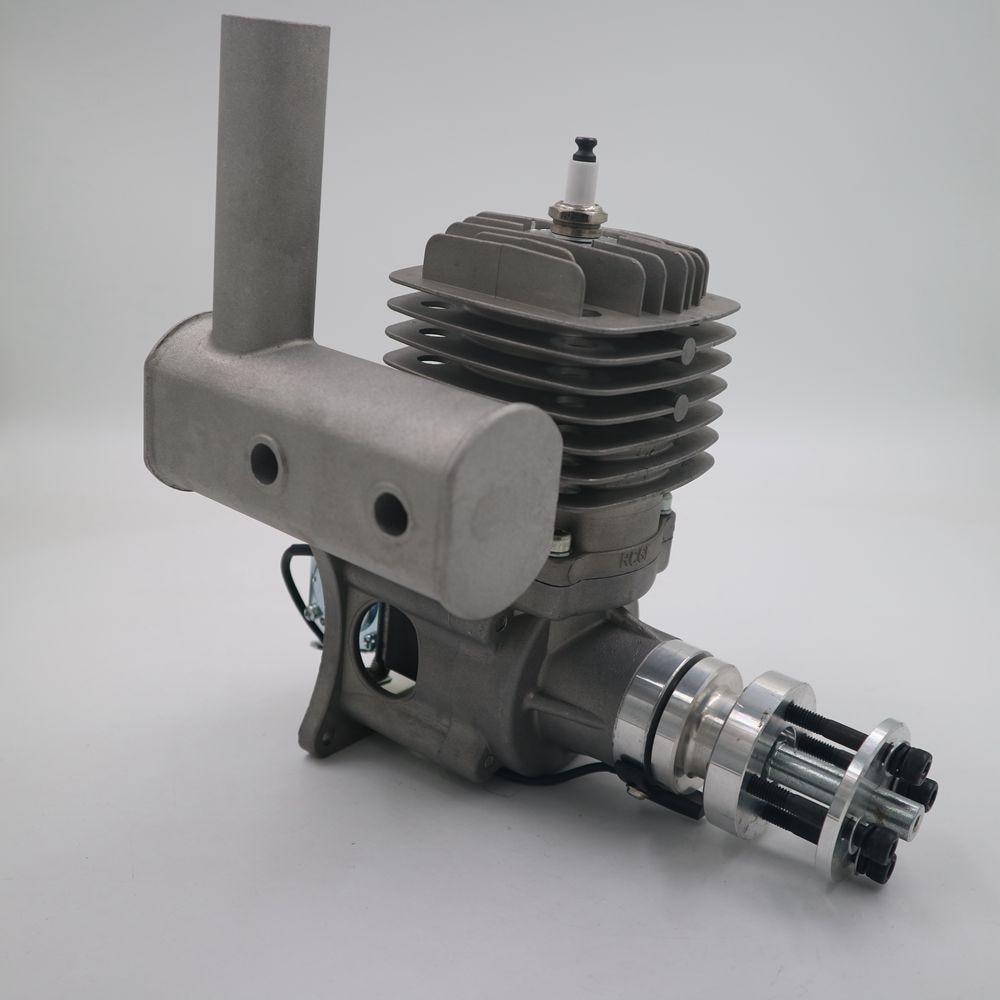

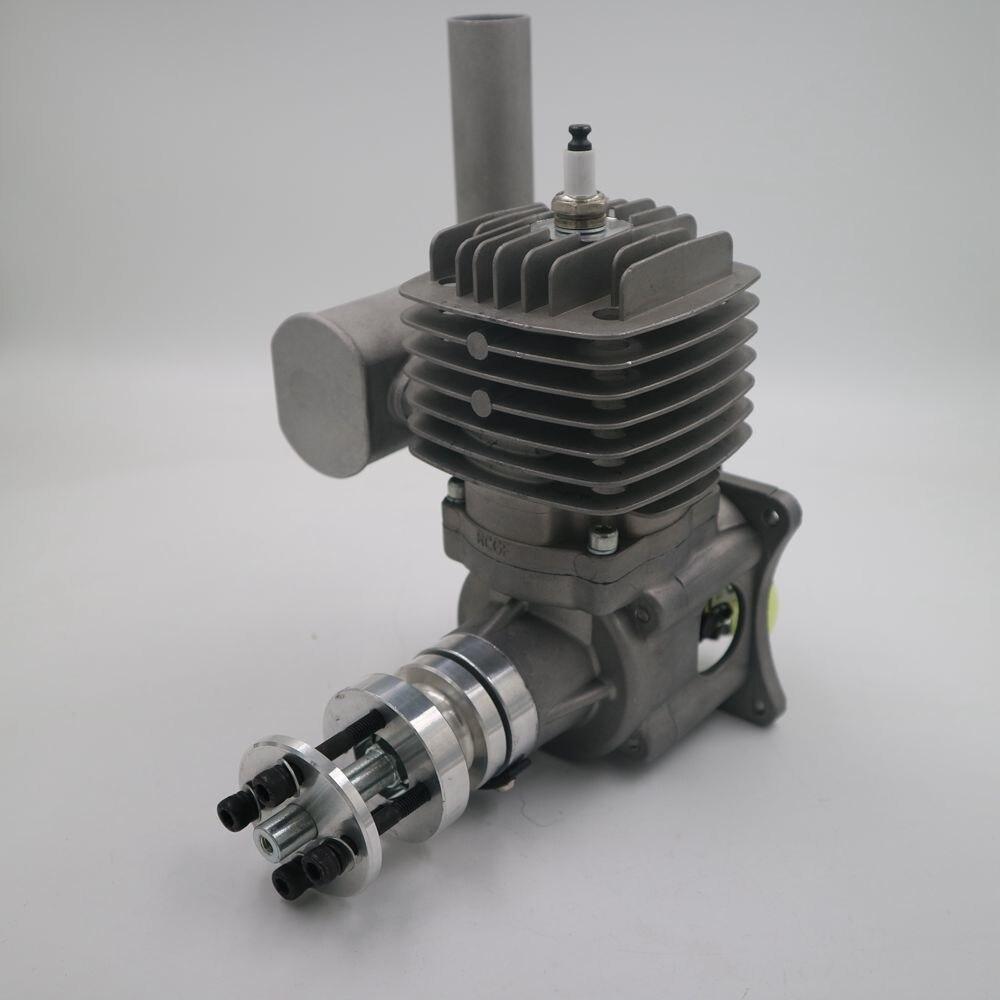

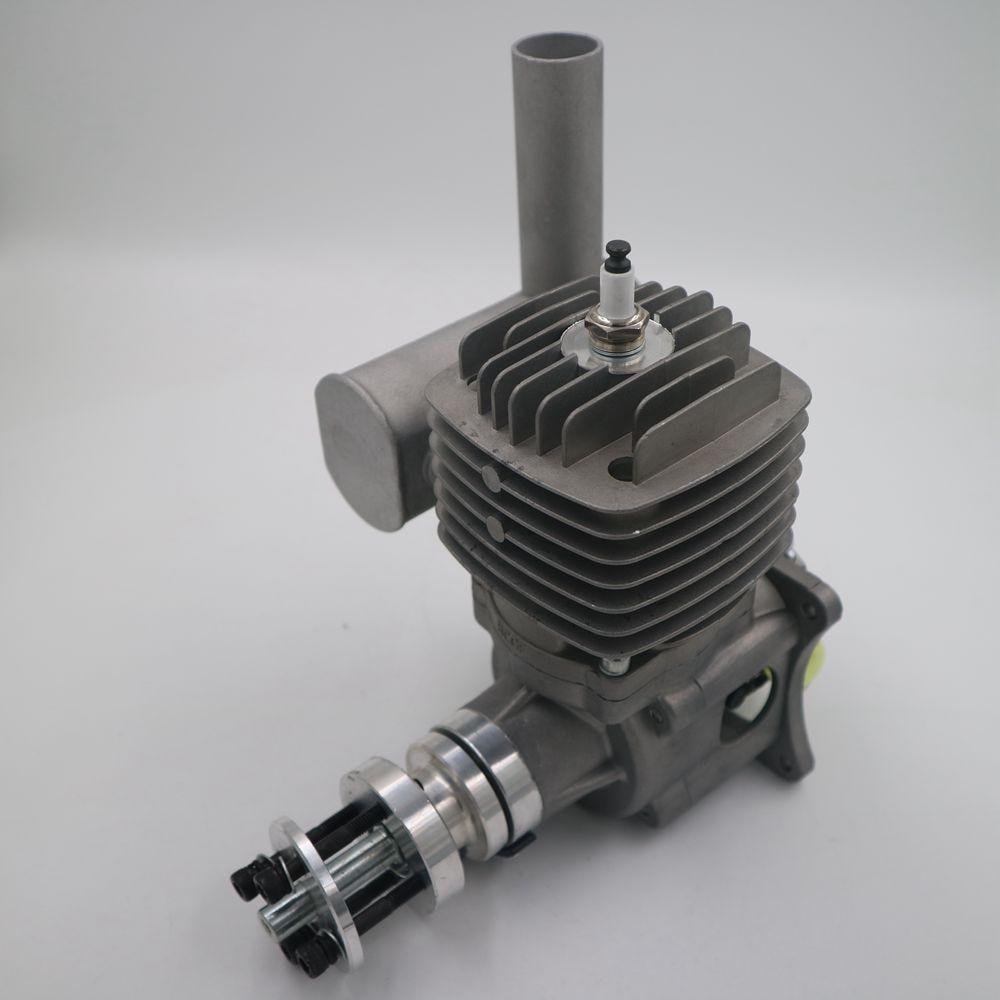

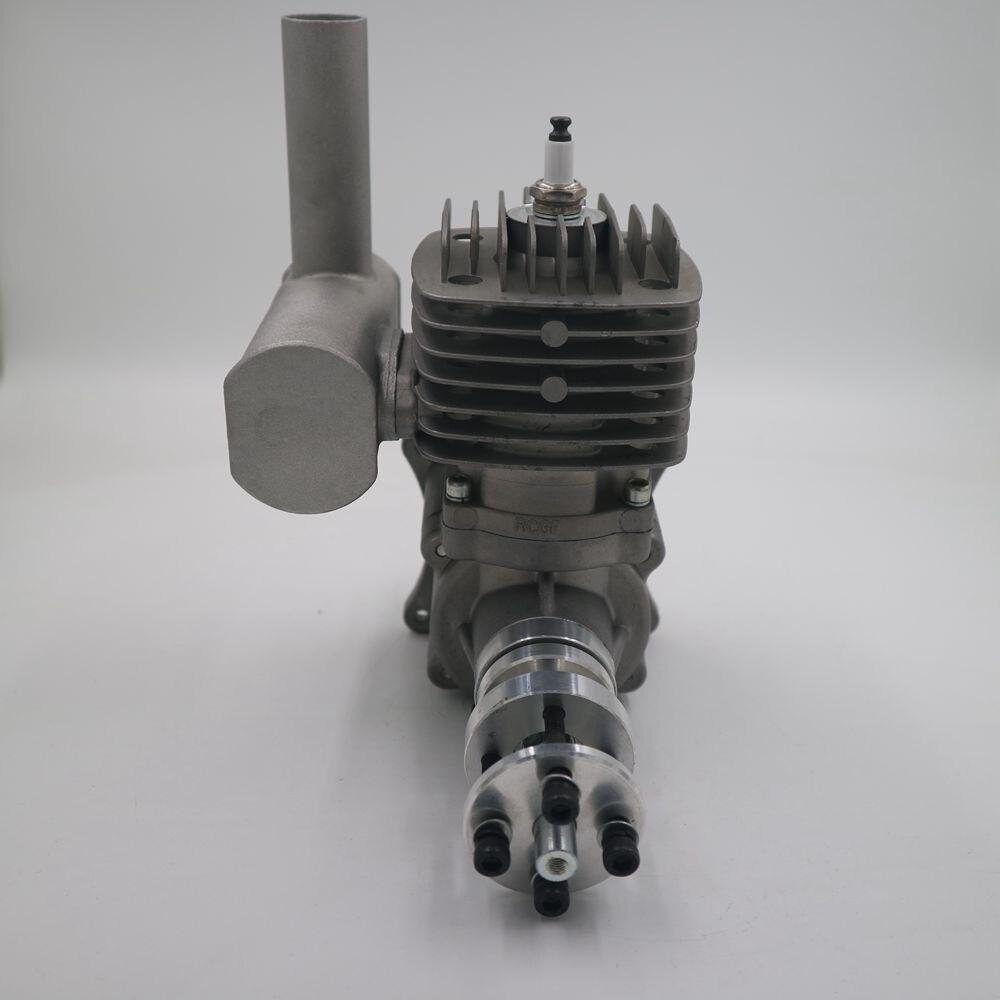

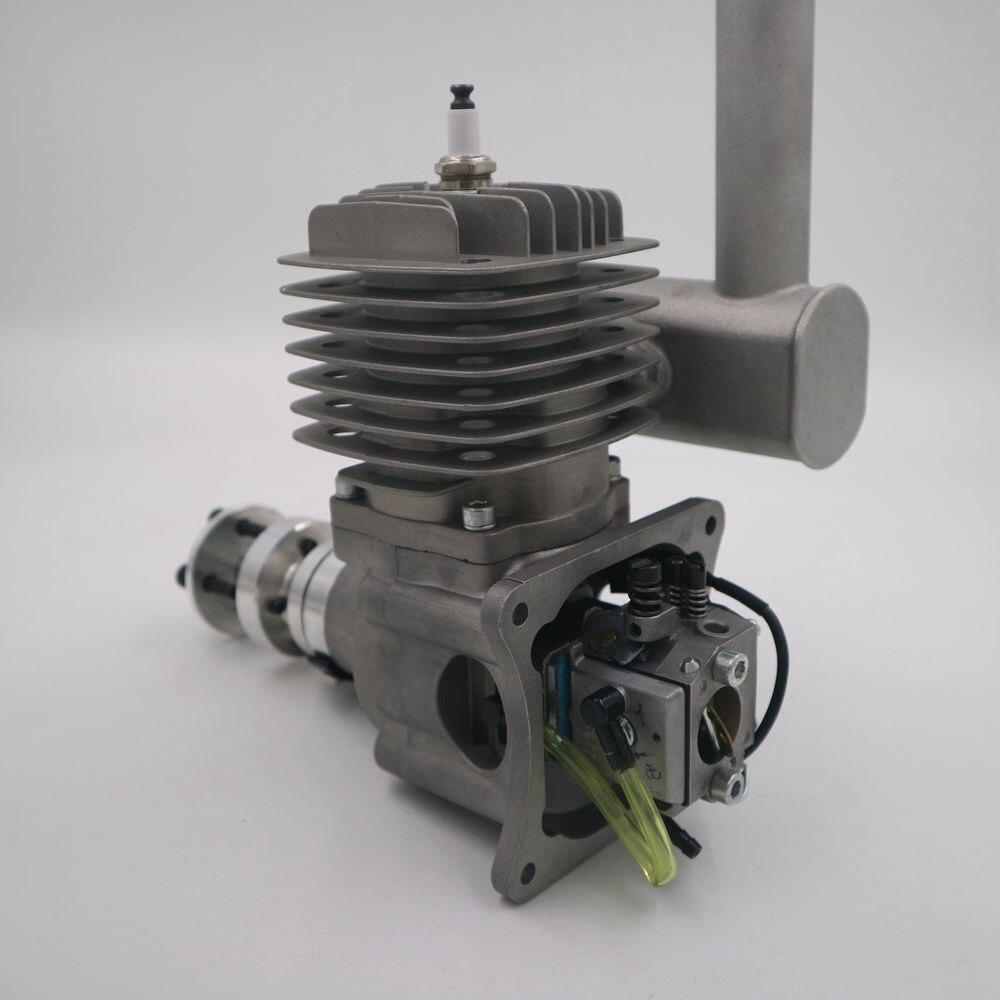

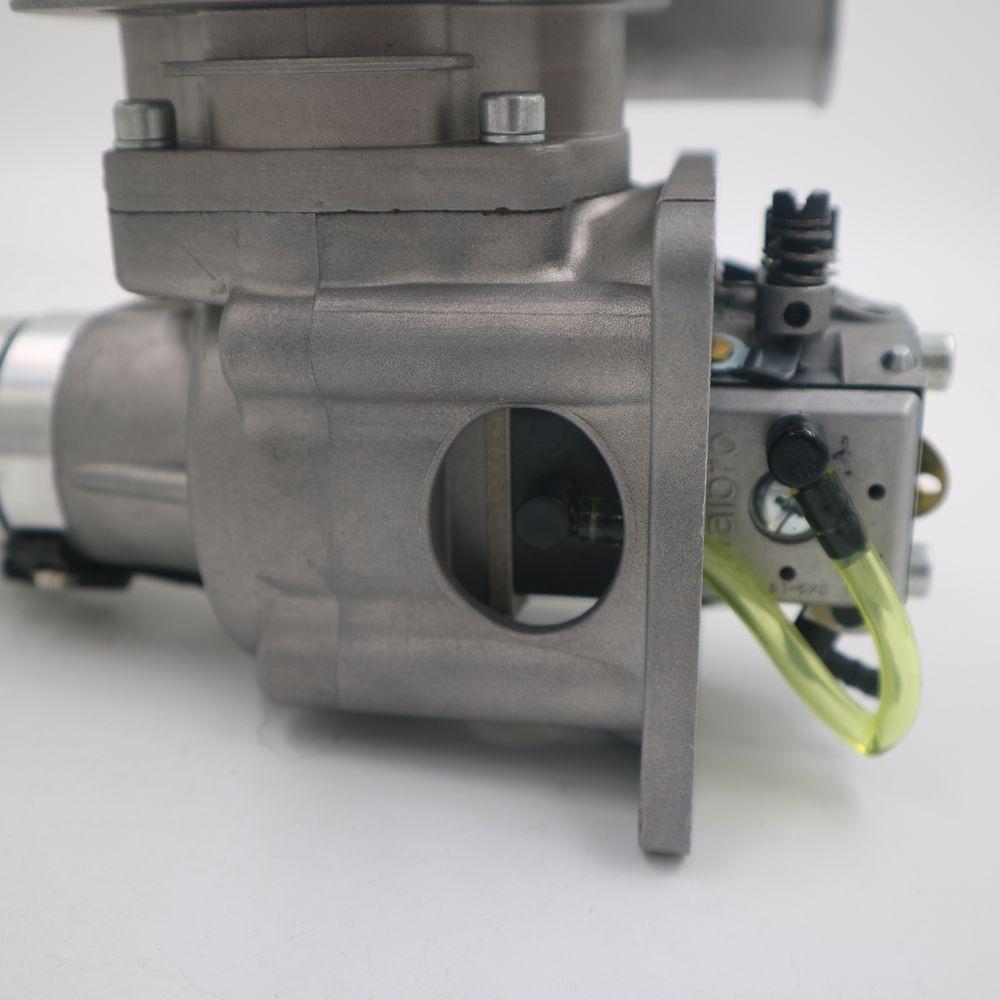

RCGF 61cc Petrol / Gasoline Engine with Walbro Carburetor

61cc Single cylinder
More power&Reliable quality  !
The RCGF 61cc screams performance — from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircract, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.

Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 61cc
Bore x Stroke (mm): 1.85 in(47mm) x 1.38 in (35mm)
Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-6V
Maximum Output :6.0HP /5.1KW
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-7500rpm
Gasoline-Version : Pre-mixed Fuel, 20-25 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 22X10 6900rpm (Standard Two leafs prop)
Suggested Propellers: 24x8, 23x10
Suggested Break-in Prop: 24X8
Sparking plug: NGK CM6 Type (Cap size 0.018 in.—0.020in.<0.45mm—0.51mm>)
Cooling System : Air Cooled
RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight :
Engine: 2.99 lb (1360 g)
Muffler: 3.70 oz (105 g)
Ignition Module: 3.88 oz (110 g)
Total: Weight: 3.44 lb (1560 g)

Technical Data:
Ignition Battery: 4.8-6.0 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
dle Speed: 1500 rpm/min
