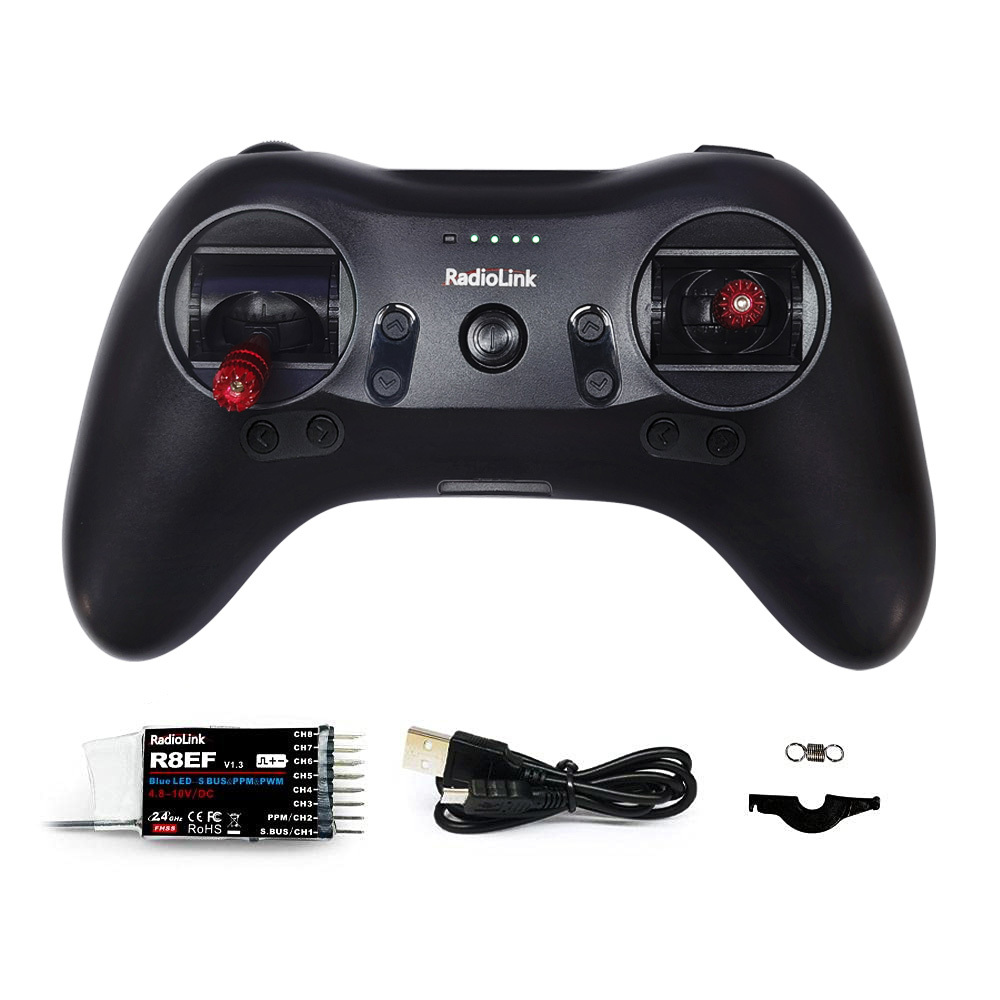

T8S 8-Channel Handheld Remote Control
1. Transmission Frequency: 2.4GHz ISM Band
2. Dimensions: 162.5 x 95.5 x 57 mm; Weight: 142 g
3. Supports a wide range of aircraft types, including fixed-wing planes, gliders, multirotors, cars, and boats;
4. FHSS 67-channel pseudo-random frequency hopping communication; remote control range is 300 meters on the ground and 2,000 meters in the air; multiple units can be used simultaneously without interfering with each other; 5. The first remote control featuring mobile Bluetooth app configuration; all menus can be viewed intuitively on the phone screen, offering greater convenience for parameter adjustments compared to traditional RC model and drone controllers; 6. Built-in 3.7V 900mAh rechargeable lithium battery; USB portable charging; 5 hours of continuous operation;
7. Powerful functionality easily handles complex requirements, featuring four programmable mixers and advanced settings such as throttle curves, aileron/elevator mixing, V-tail mixing, loss-of-control protection, servo delay, and customizable auxiliary channels;
8. Unlimited model data storage capacity to meet the data storage needs of multiple devices;
9. Universal remote controller: supports various aircraft types including multirotors, fixed-wing aircraft, gliders, cars, and boats;
10. 4096-level data resolution; featuring an optimized PCB layout and Japanese Futaba Noble potentiometers, it achieves 0.5μs servo output precision—more than six times that of comparable products;
11. Ergonomic design and detachable joysticks allow adjustment to fit different hand sizes, ensuring optimal comfort for both adults and children; 12. Supports USB firmware updates, enabling the addition of new features as needed;
12. The standard R8EF receiver supports SBUS, PPM, and PWM signal formats;
13. The standard R8EF receiver has an input voltage range of 3.0–12V and supports high-voltage input;
14. Compatible receivers: R8EF, R8FM, R8XM, R8SM, R8F, R8FG, R7FG, R6FG, R6F, R4FGM, R4F.
Product Specifications:
Bluetooth Version T8S + R8EF: 8-channel joystick controller; available in left-handed, right-handed, or dual-return-to-center configurations
Bluetooth Version T8S + R8EF Training Kit: 8-channel joystick controller; for educational training and CAAC certification clients only; available in left-handed, right-handed, or dual-return-to-center configurations
