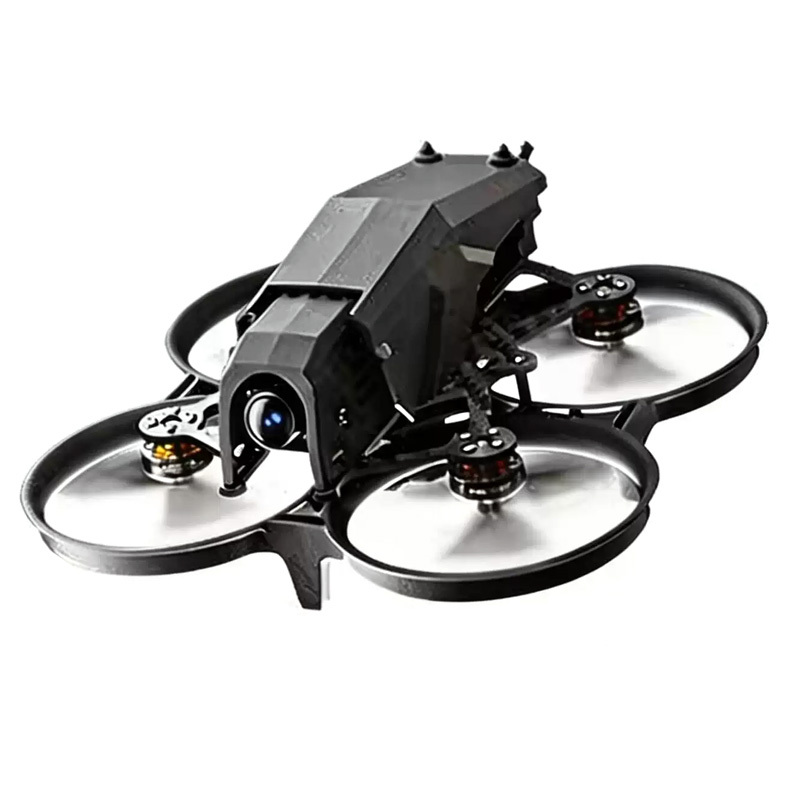

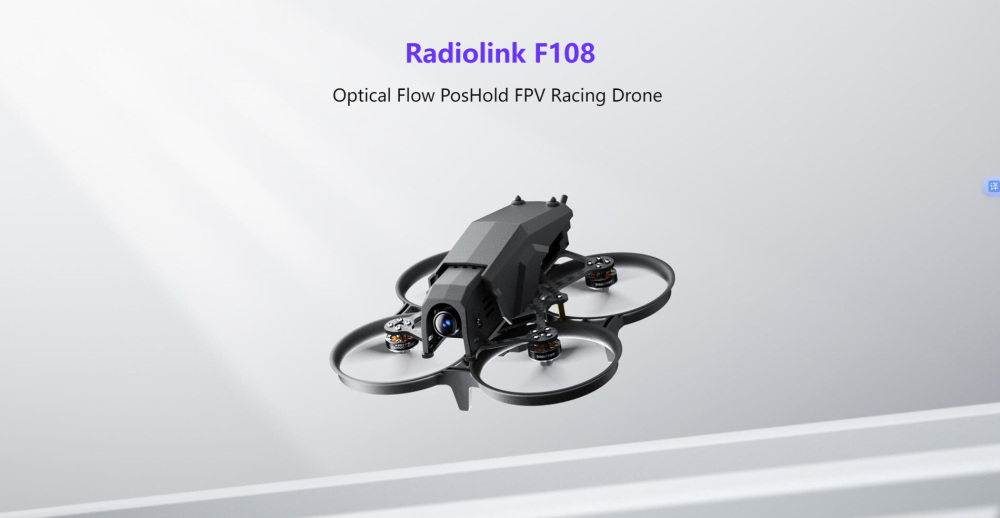

Product Name: F108
Empty weight (excluding battery): 120g
Take-off weight: 165g
Frame dimensions: 153 × 153 × 70mm

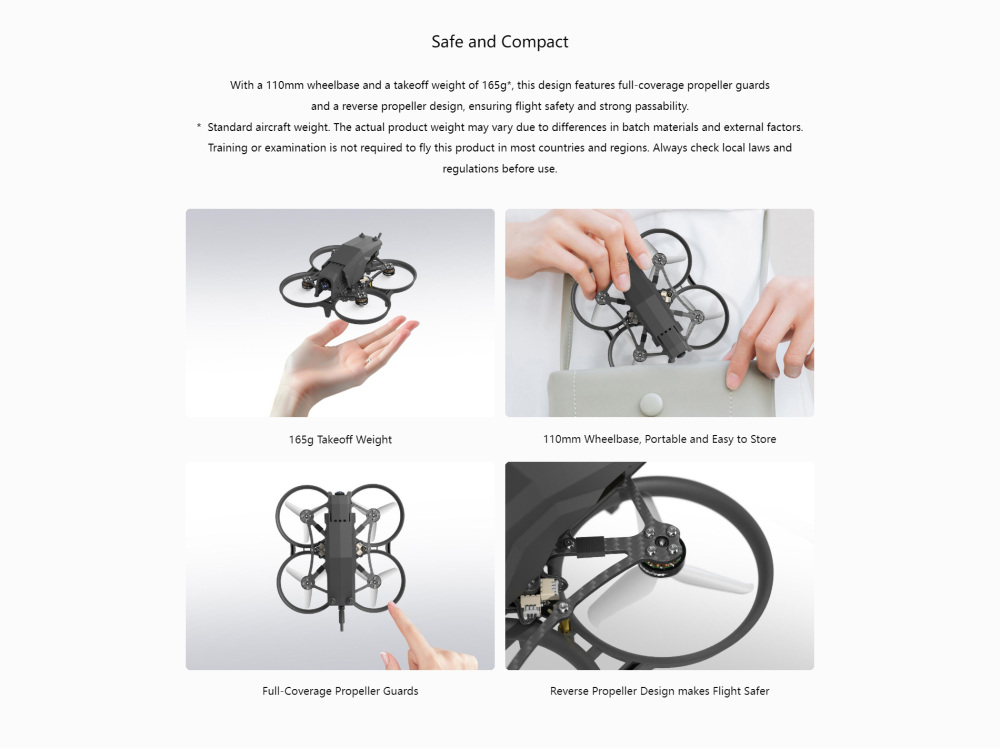

Wheelbase: 110mm (diagonal distance between motors)
Frame material: Carbon fibre
Casing material: Black TPE with a fine matte finish; camera and battery mounts: Black ABS+PC with a fine matte finish
Protective Ring Material: Nylon + Fibre
Hover Time: 7 minutes
Climb Speed: 50 km/h
Horizontal Flight Speed (near sea level, no wind): 110 km/h
Flight Range: 2,000 metres, provided the flight area is free from interference, obstacles and obstructions
Flight Altitude: Equivalent to flight range; flight altitude can be restricted via a geofence
Maximum wind resistance: Force 4

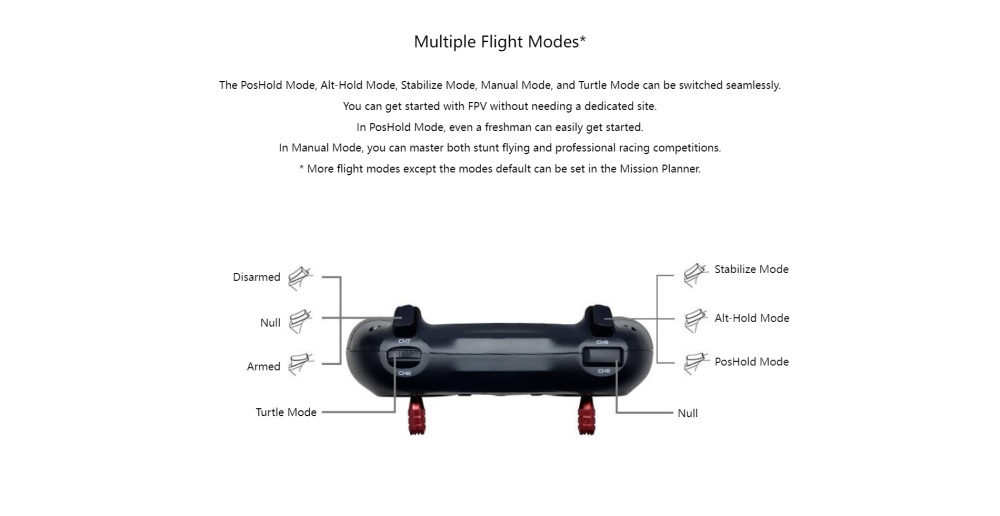

Flight modes: Default modes include Hover, Altitude Hold and Stabilisation, plus Anti-Turtle mode; additional flight modes can be configured via the ground station

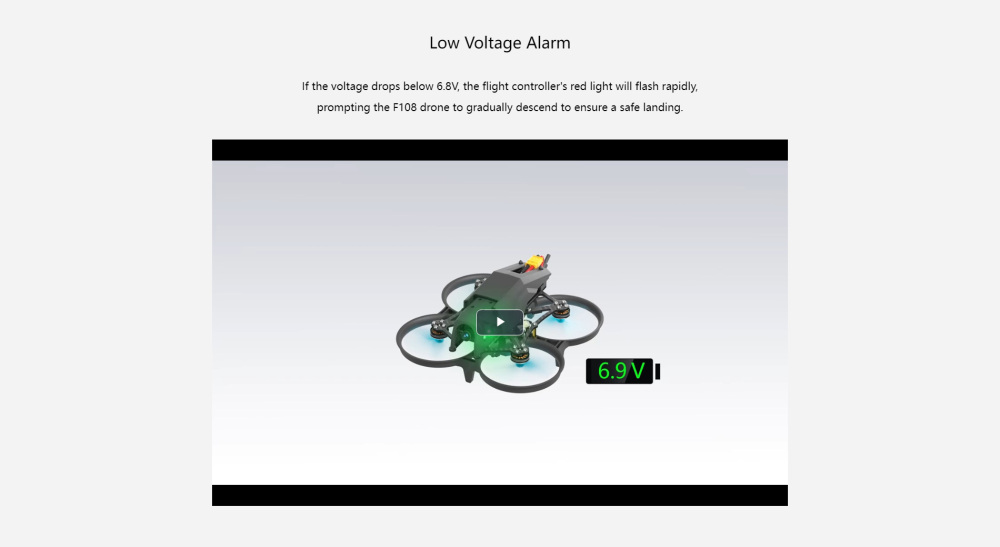

Low voltage warning: When voltage drops below 6.8V, the flight controller’s red light flashes to indicate return-to-home; the aircraft will automatically descend slowly after 5–10 seconds
Hover accuracy: 20 cm
Operating temperature range: -30°C to 85°C
New Navigator 1303-10000KV

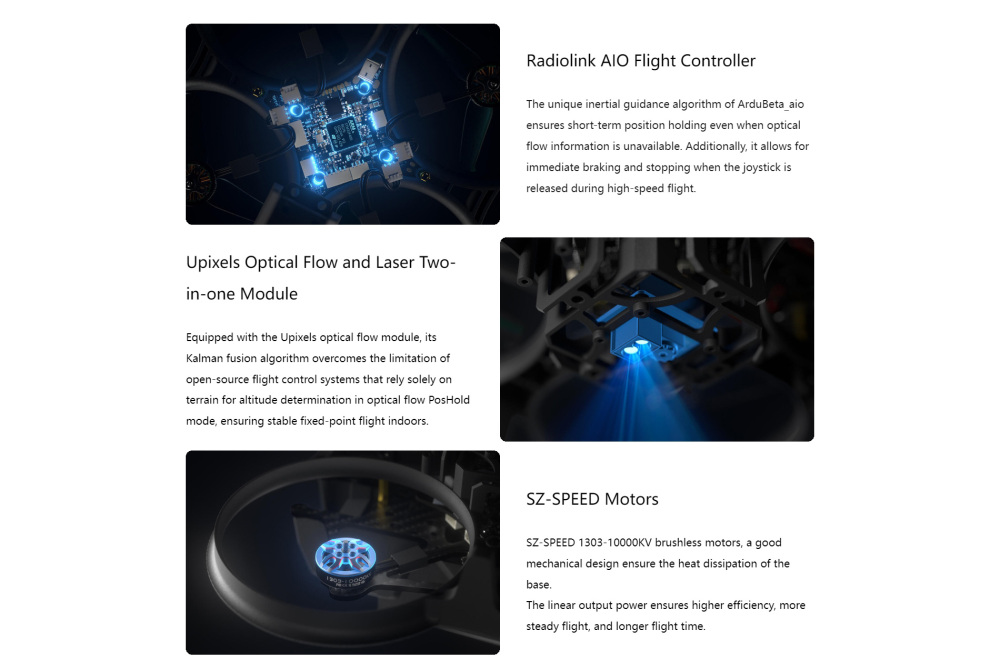

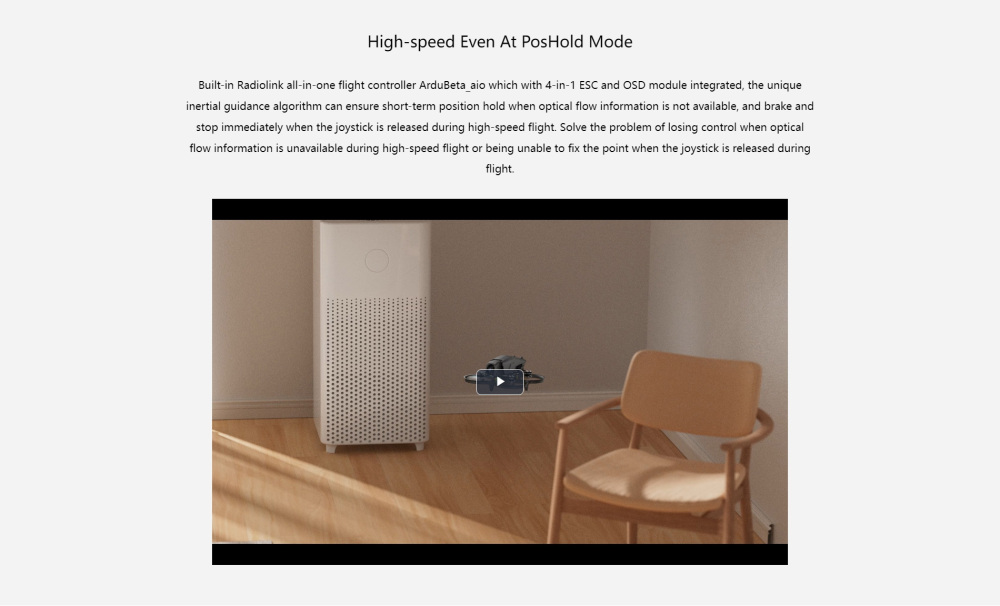

Flight Control System: LeDi integrated ESC with built-in OSD, ArduBeta_aio all-in-one flight controller

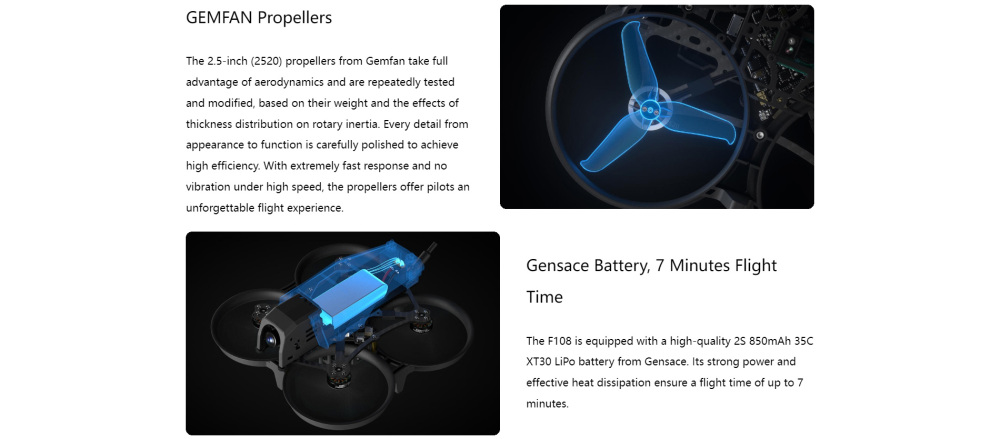

Battery: G-Cell 2S 850mAh 35C XT30 power battery
Propellers: Qianfeng 2512 three-blade propellers
