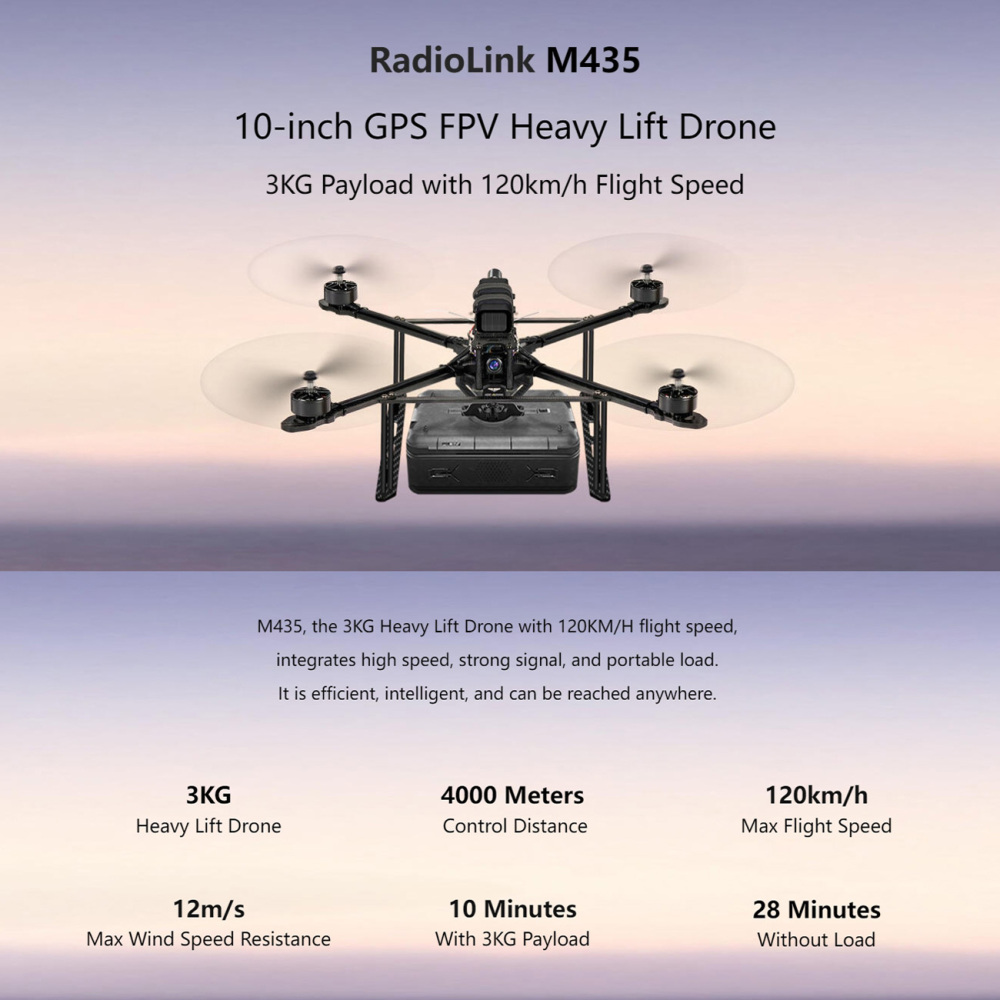

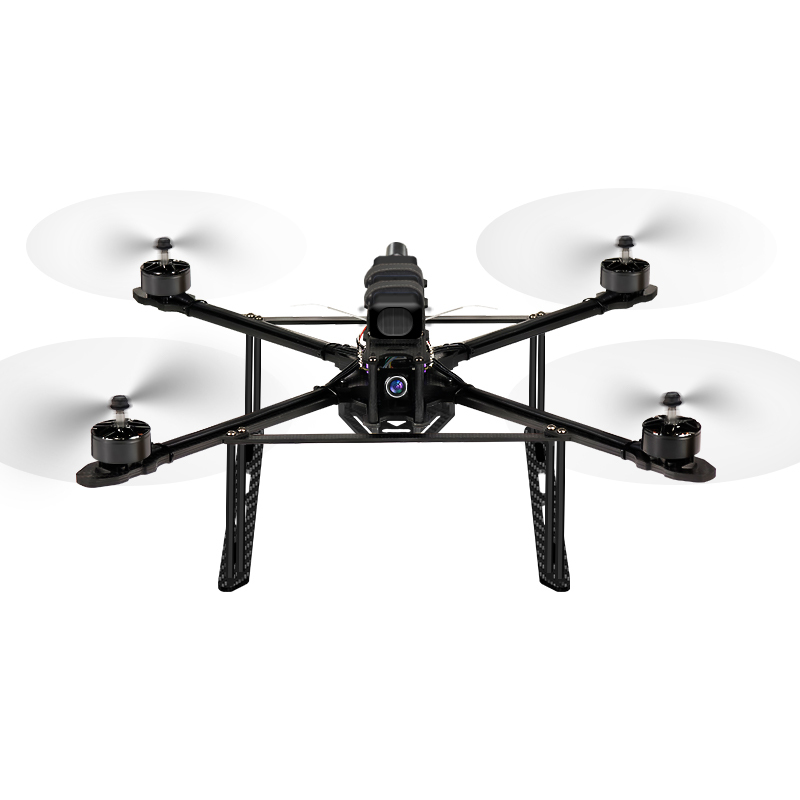

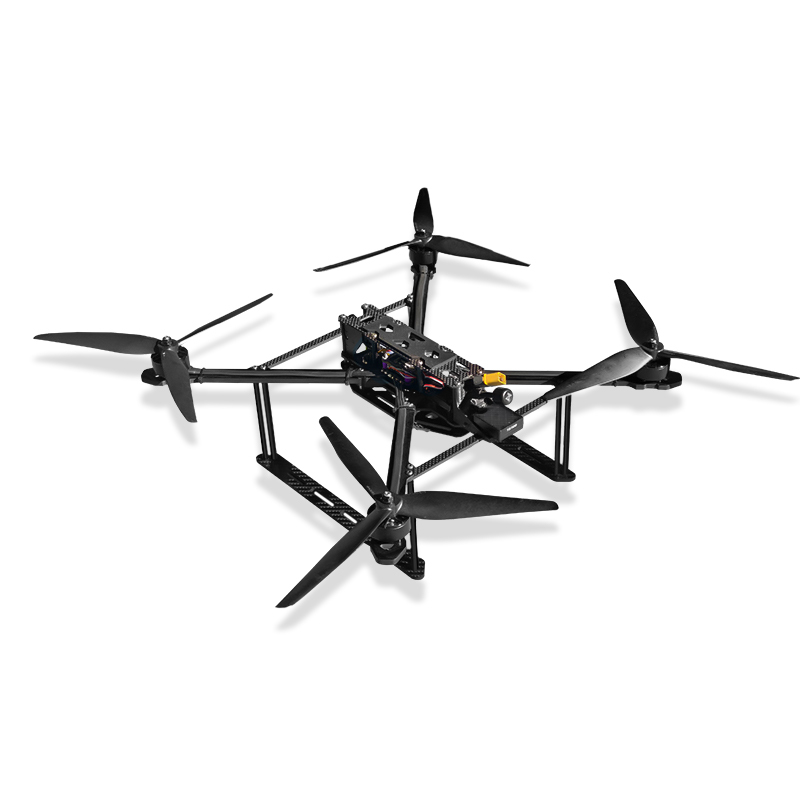

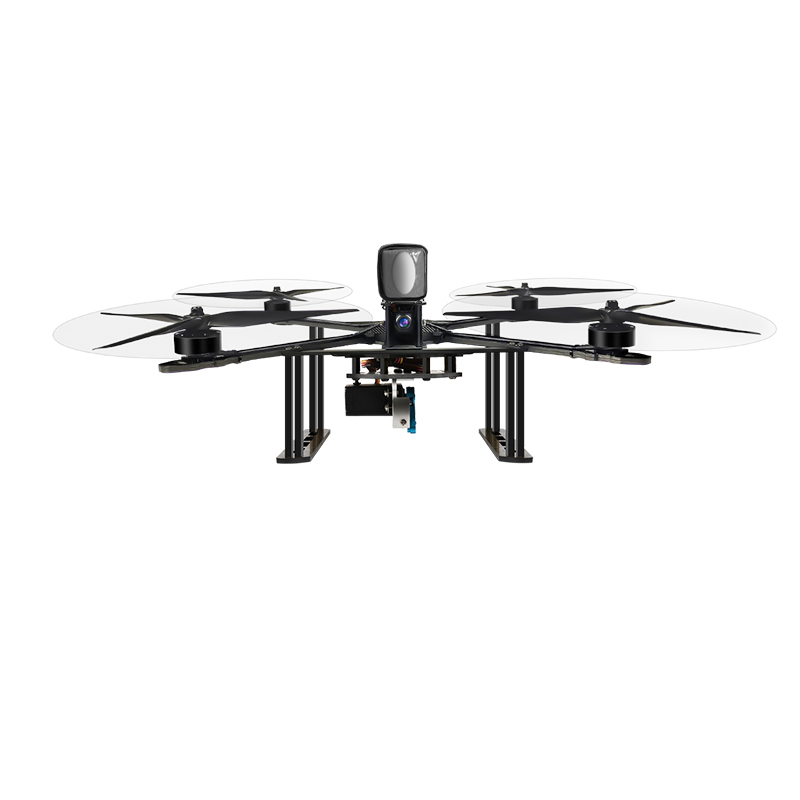

Product Name: M435 Quadcopter with 3kg Payload Capacity

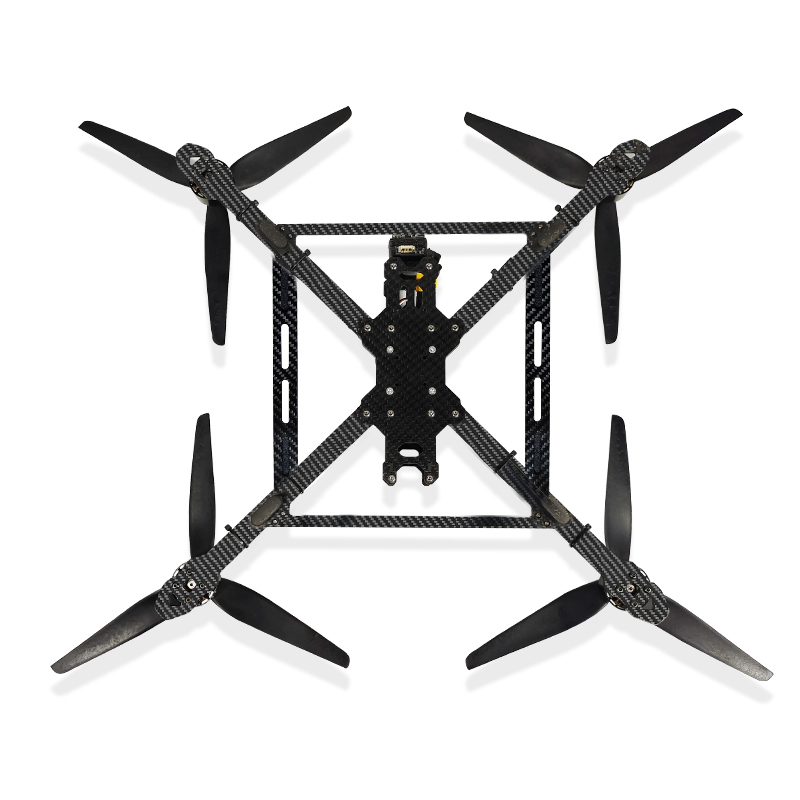

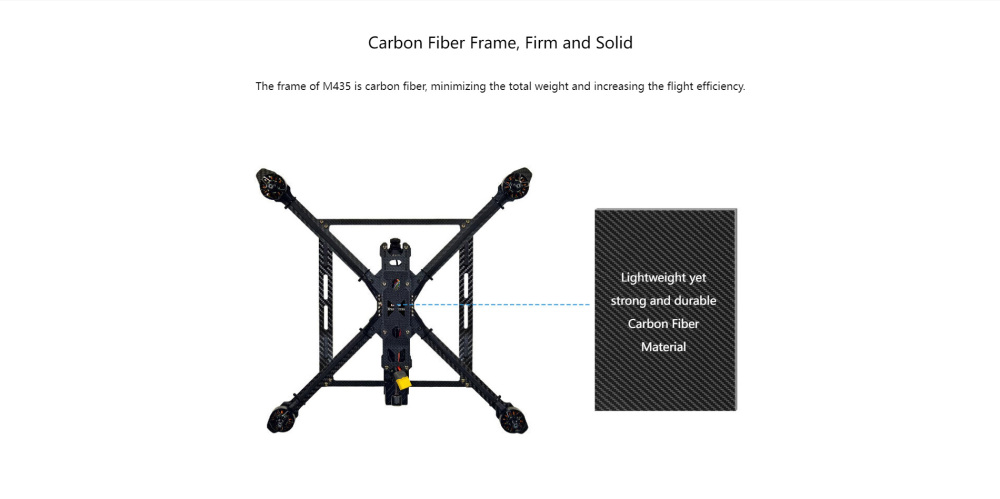

Material: Carbon Fiber
Specifications:
Wheelbase: 435mm (diagonal distance between motors)
Frame Dimensions: 355 x 355 x 36.5mm
Empty Weight: 963.8g (without battery)
Takeoff Weight (Unloaded): 1685.8g (with battery)

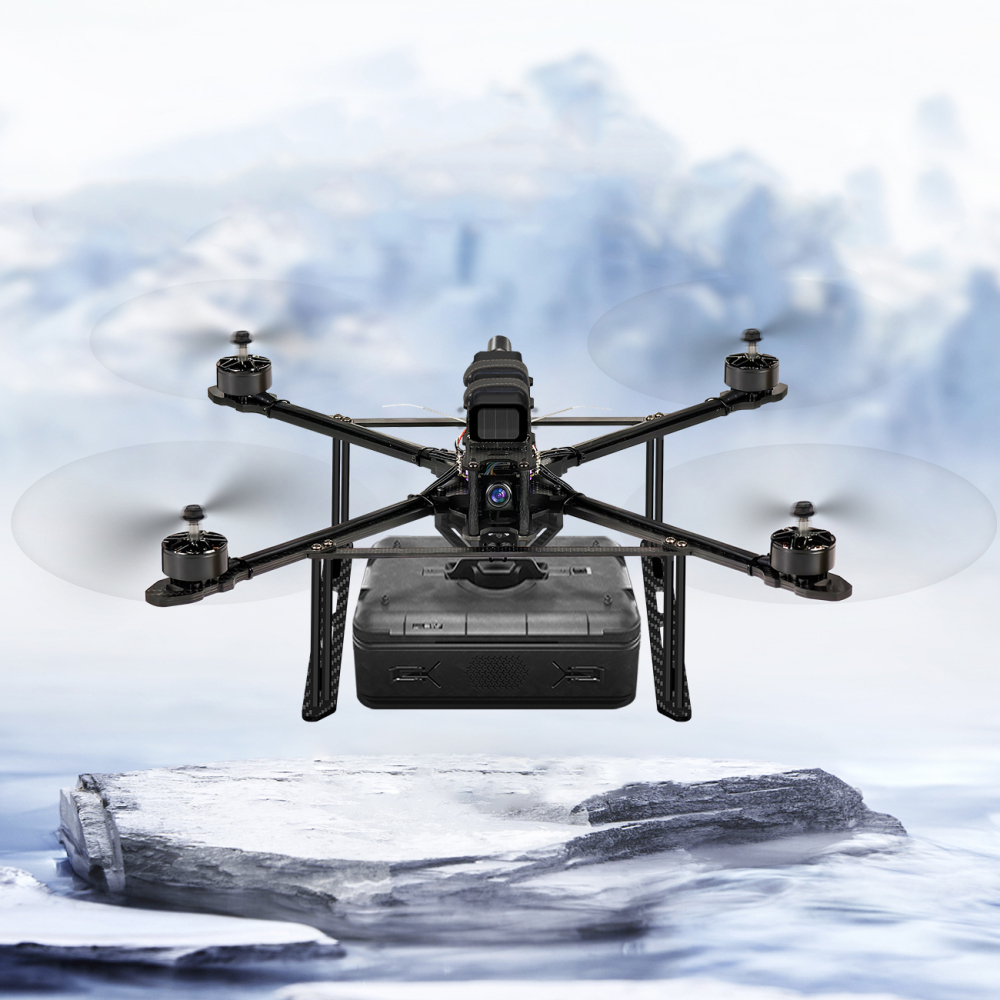

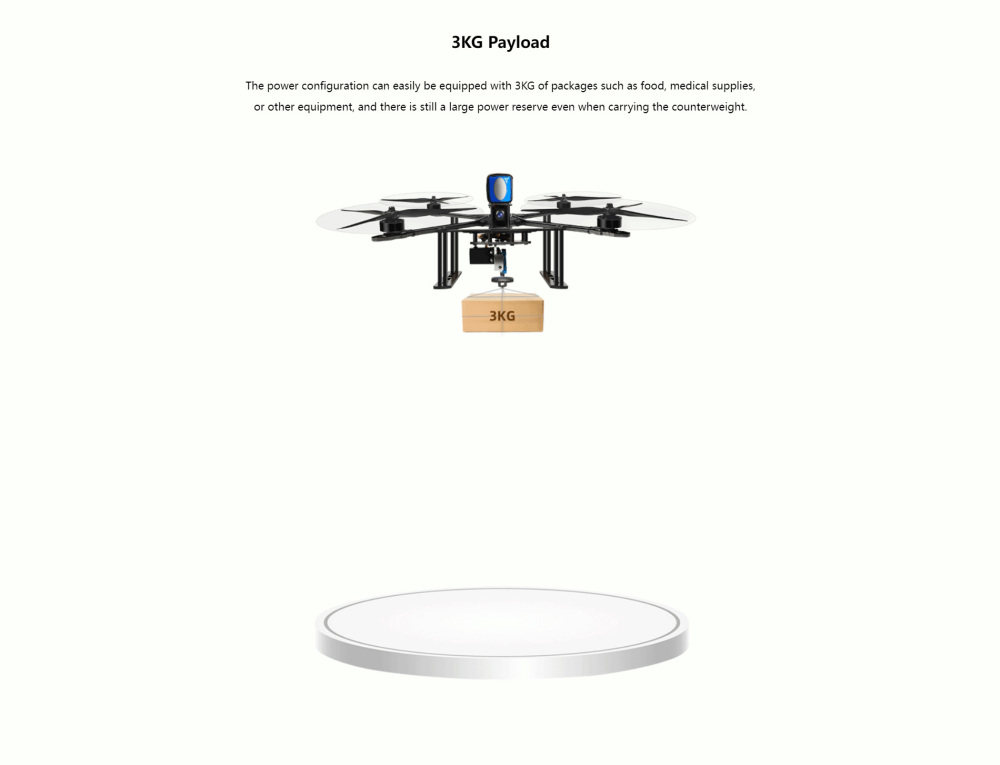

Maximum Payload: 3000g
Flight Time: 10 minutes (3kg payload) / 28 minutes (unloaded)
Flight Speed: 100+ km/h (unloaded)
Maximum Ascent Rate: 2.6 m/s (Hover/Holding Mode), 11 m/s (Stabilization Mode)
Maximum Descent Rate: 2.8 m/s (Hover Mode)
Maximum Horizontal Flight Speed (near sea level, no wind): 47 km/h 63 km/h (35° tilt)
Maximum Wind Resistance: Force 4 winds
Maximum Takeoff Altitude: 4,000 m
Maximum Tilt Angle: 30° / 35°
Operating Temperature Range: -30°C to 85°C
Flight Range: 3,400 m in the air with the AT9S Pro remote controller (in an interference-free, obstacle-free, and unobstructed flight area) --- Included in the kit, optional for standalone units
Flight Range: Equivalent to flight distance; flight altitude can be restricted via custom geofencing
Maximum Wind Resistance: Wind Force 4
Hovering Accuracy: Positioning accuracy of 0.5 meters in 4-mode mode; 2.5 meters in single-mode
Flight Modes: Default modes include Altitude Hold, Waypoint, Stabilization, One-Touch Return, and Automatic Return upon low voltage or signal loss. Users can configure 13 flight modes, including route planning and autonomous flight.

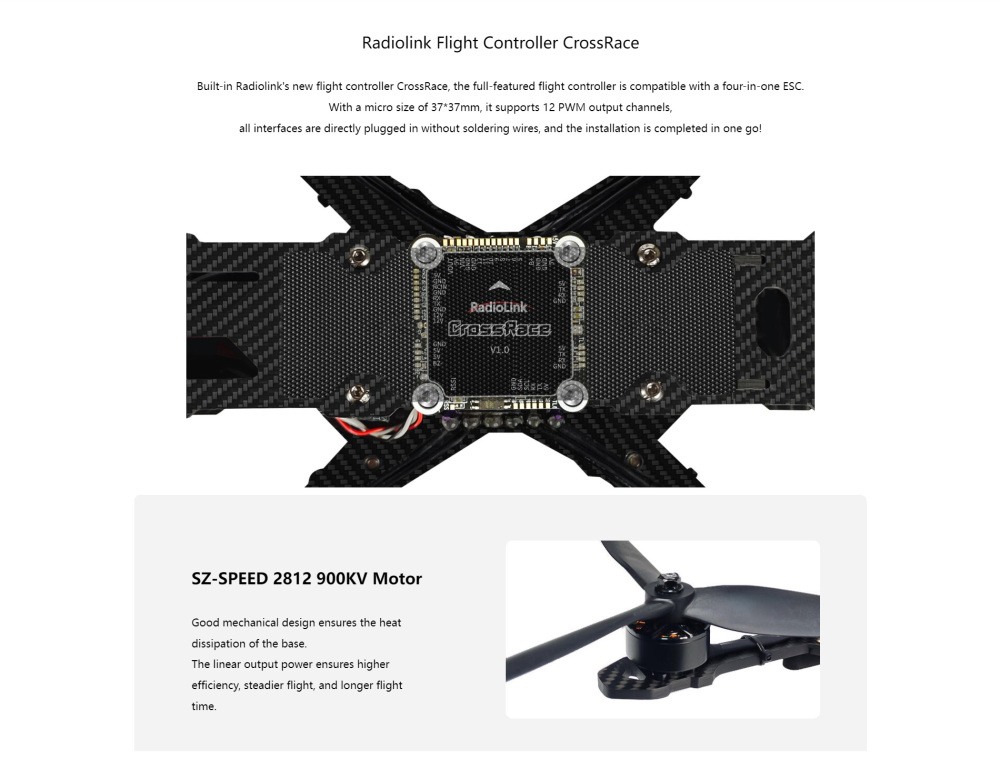

Flight Control System: LeDi CrosRace Flight Controller *1
GPS Positioning System: LeDi TS100 *1, Quad-mode (BD1+GPS/L1+Galileo/E1+GLONASS/G1)

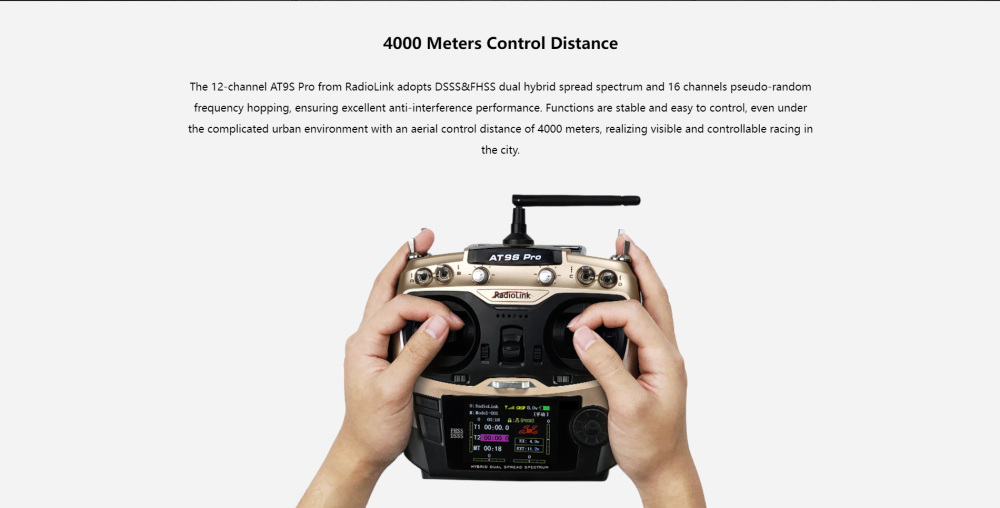

Remote Controller: LeDi AT9S Pro Remote Controller (Standard in Standard and FPV kits; optional for standalone units)

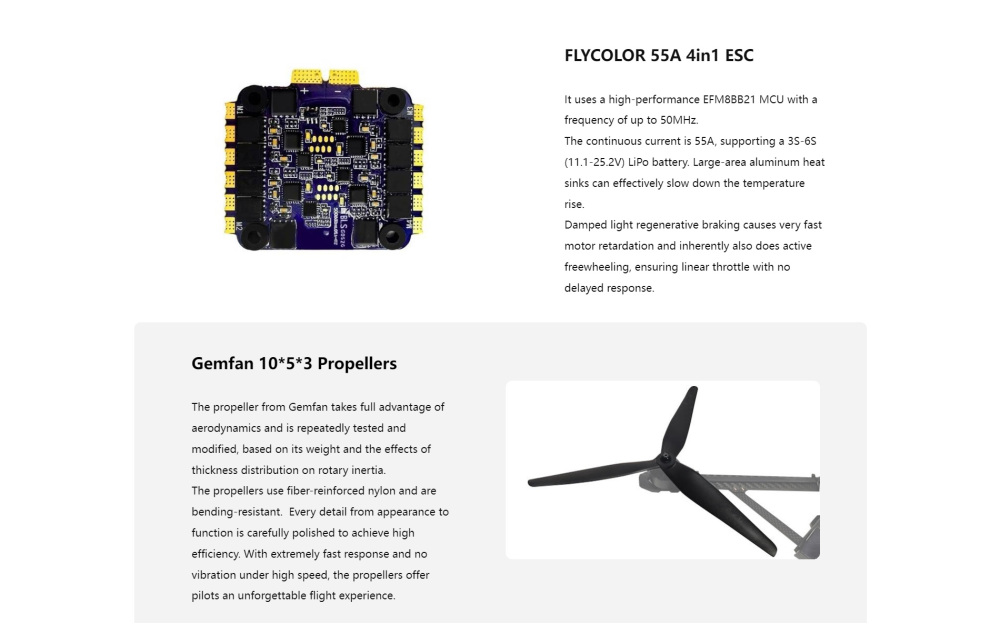

ESC: Feiying Jiale Raptor 5th Gen 60A 4-in-1 ESC *1
Motors: New Navigator 2810 900KV *4

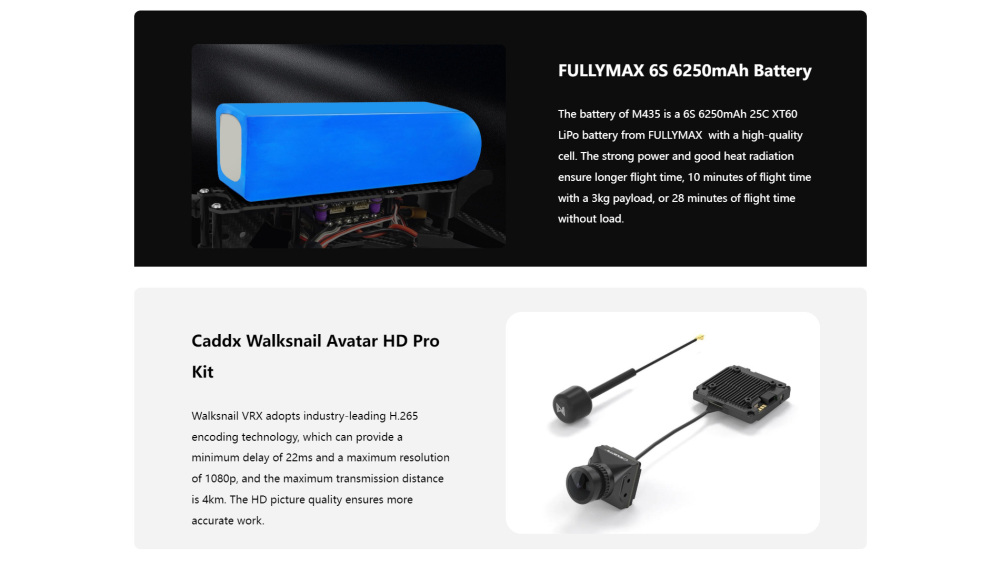

Battery: Fuli 6S 5000mAh 35C XT60 Power Battery *1
Propeller Model: HQProp 10*5*3 High-Efficiency Nylon Propellers *6 (3 each for forward and reverse)

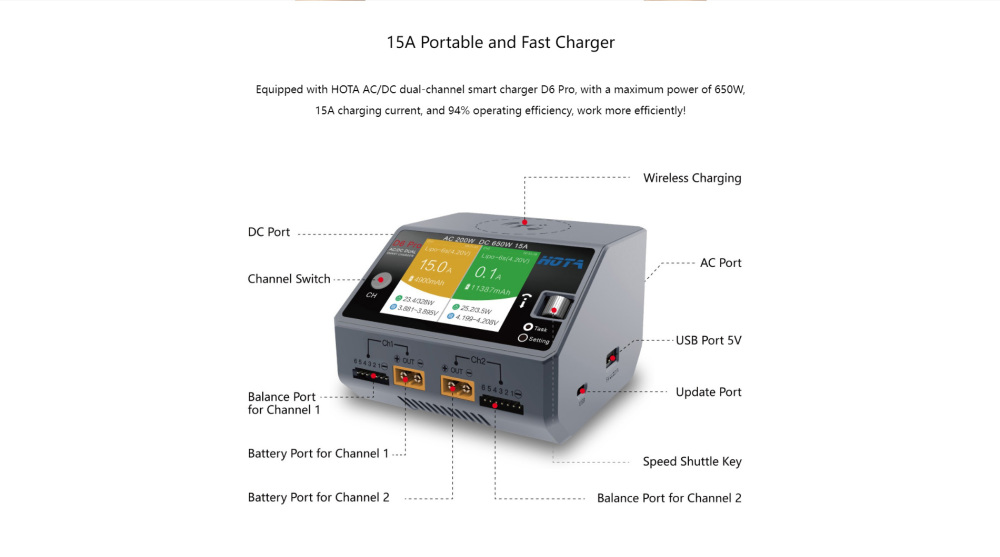

Charger: HOTA D6 Pro Smart Balancing Charger *1

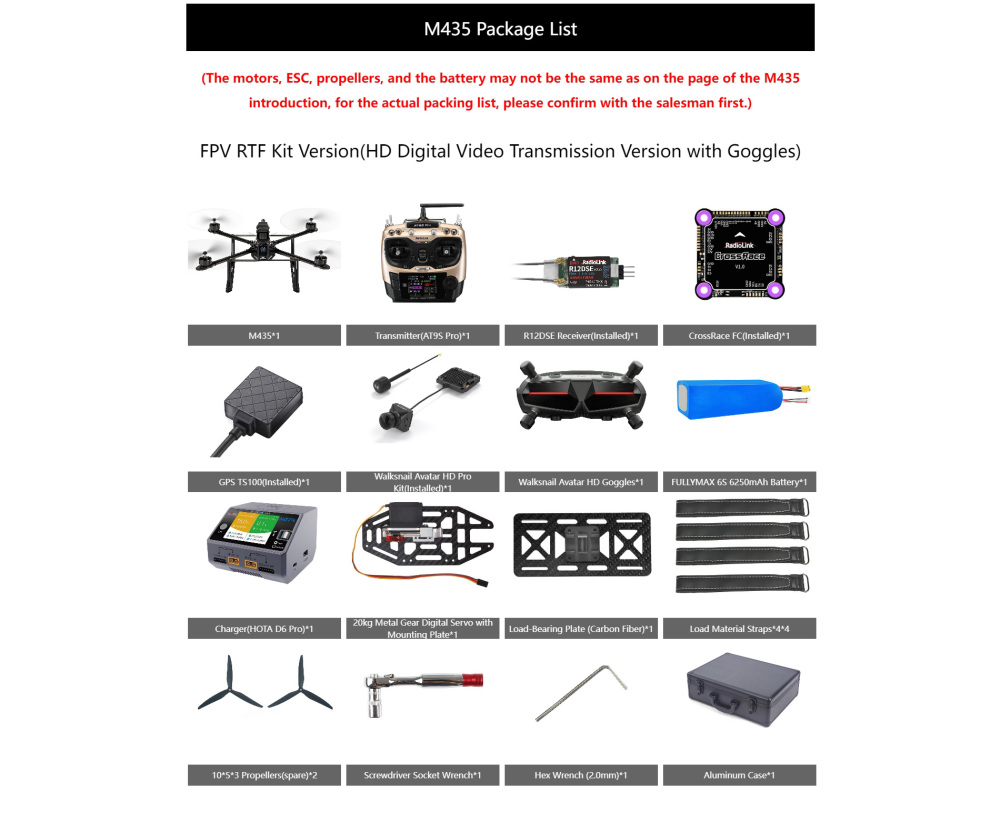

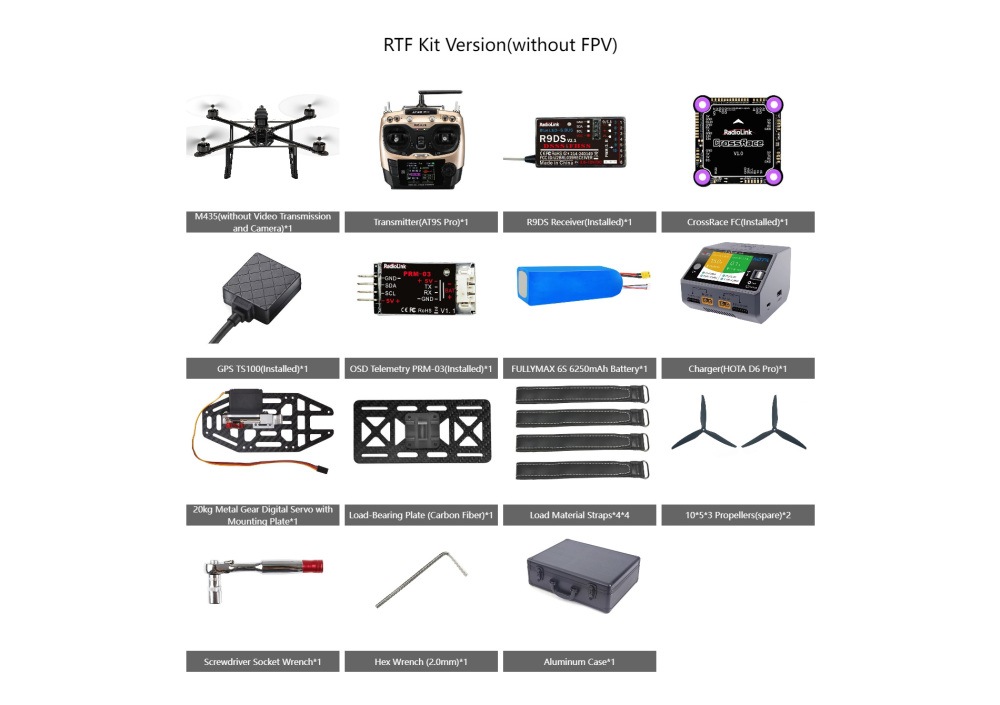

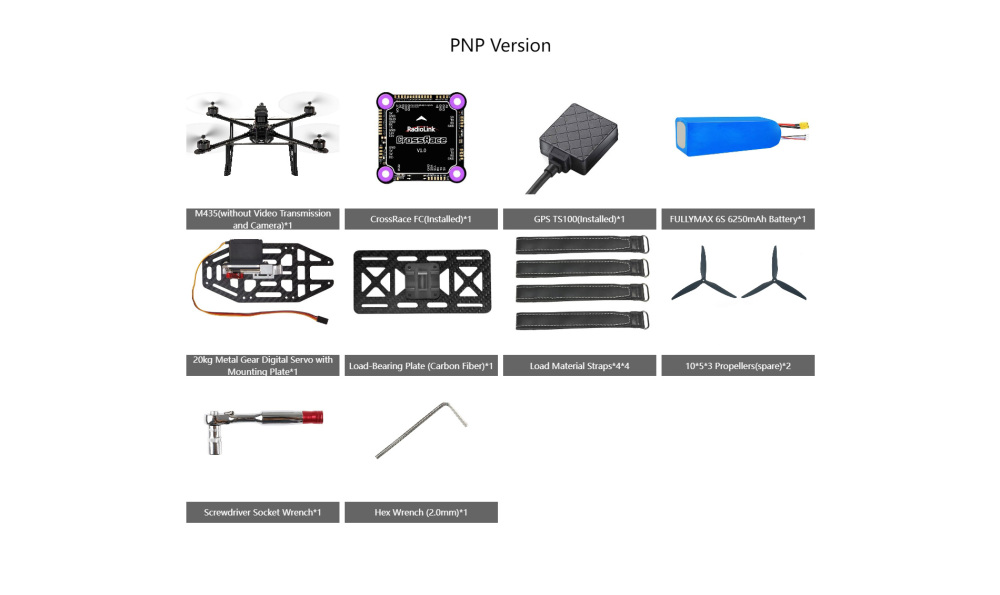

Product Includes:
M435+CrossRace Standard Single-Airframe Version
M435+CrossRace Standard Version

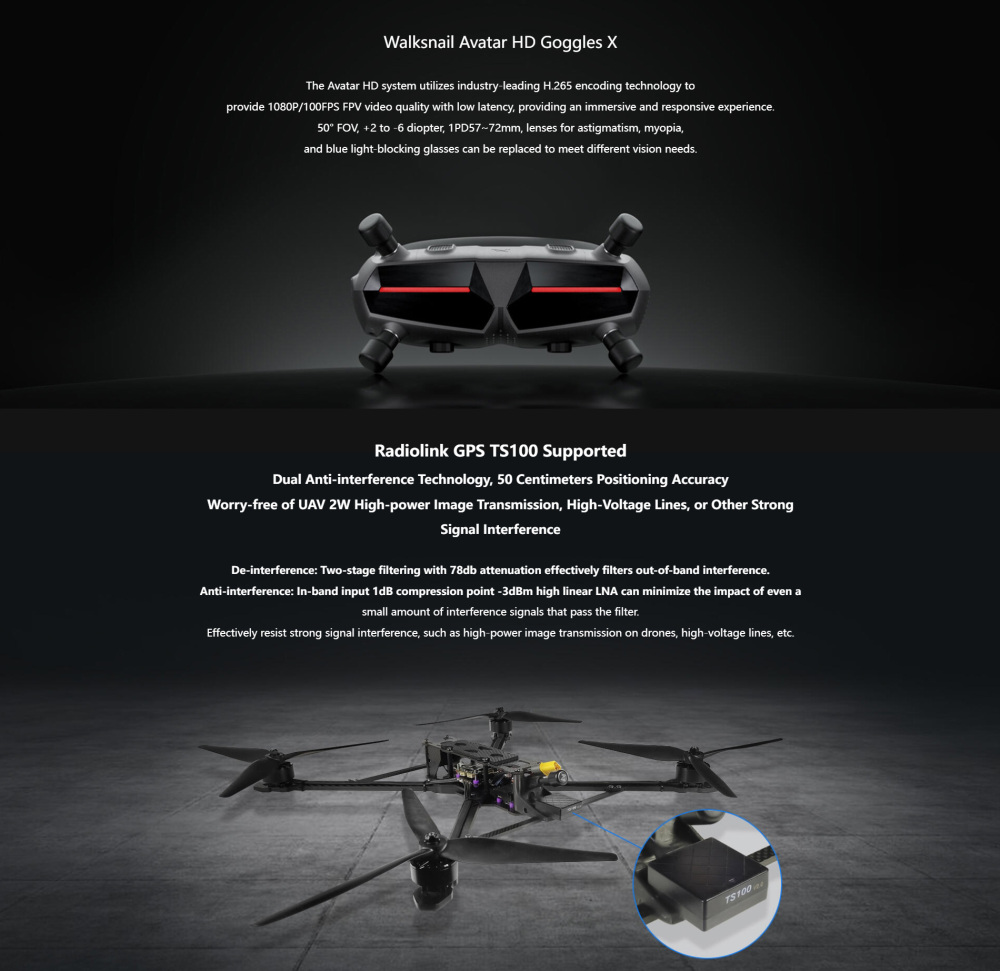

M435+CrossRace+Snail HD Digital FPV Transmission Kit -- Snail HD Goggles
Application: RC airplane model training
