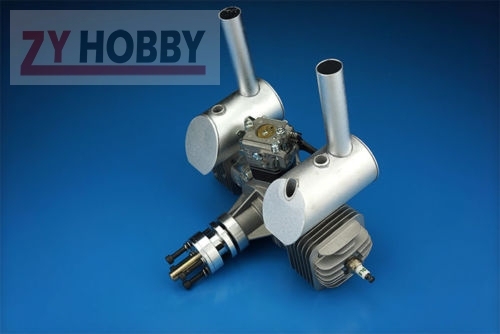

DLE60

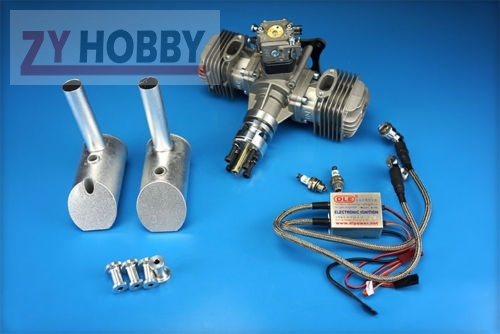

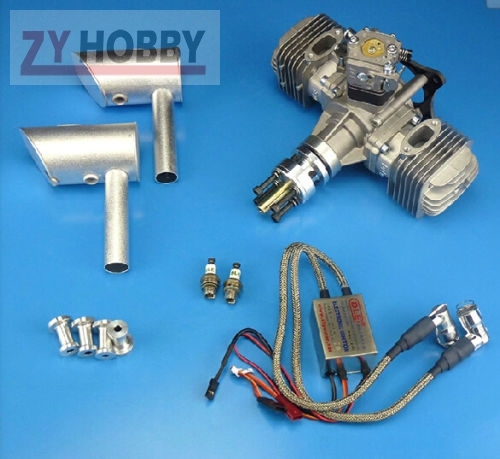

The DLE 60 Twin delivers that and more! Its twin opposed cylinders provide very smooth operation, while keeping weight low and producing the power your bird requires. Electronic ignition, spark plug and Pitts style mufflers are included.
Specification
Displacement*: 60 cc (3.7 cu in)
Bore*: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Weight engine: 4.37 lb (1.56 kg)
Weight muffler: 2.82 oz./ 3.00 oz./(80 g/85 g)
Weight ignition module: 7.44 oz. (211 g)
Output: 5.5 hp @ 8 500 RPM
Static Thrust: 15.2kg Pulling Force/100 meters altitude
13.5kg Pulling Force/1 800 meters altitude
Gasoline/Oil Mixture: 30:1
Gasoline Rating: 87
Recommended Propellers: 22x10 23x8 23x10 24x8
Carburetor Adjustments;
Low Speed Needle: 1.5 turns out as a starting point adjust for a
smooth idle and a reliable transition to high throttle
High Speed Needle: 1.5 turns out from closed adjust needle to peak
RPM if engine slows or dies at full throttle the high-speed
mixture is likely too lean
Muffler Length: 5 (128mm)
Muffler Diameter: 2 (50mm)
Exhaust Outlet Length: 3.4 (85.5mm)
Exhaust Outlet Diameter: 0.79 (20mm)
Distance Between Mounting Hole Centers Same Side: 2.7 (69mm)
Distance Between Mounting Hole Centers Opposite Side: 2.7 (69mm)
Width from Cylinder Head to Cylinder Head: 8.5 (215mm)
